• Model NO.：ZDE,ZDF,ZDEW
• Type：Planetary Gear Box
• Size：60, 70, 80, 90mm
• Power：3W, 6W, 10W, 20W, 40W
• Voltage：110V, 220V, 12 Volt
• Frequency：50Hz, 60Hz
• Transport Package：Cnt
• Specification：UL, CE, ISO9001, CCC, RoHS
• Trademark：ZDMOTOR
• Origin：Cixi, Zhejiang, China
• HS Code：8501109101
• Production Capacity：30000PCS,Month

Basic Info.

Model NO. ZDE/ZDF/ZDEW Type Planetary Gear Box Size 60, 70, 80, 90mm Power 3W, 6W, 10W, 20W, 40W Voltage 110V, 220V, 12 Volt Frequency 50Hz, 60Hz Transport Package Cnt Specification UL, CE, ISO9001, CCC, RoHS Trademark ZDMOTOR Origin Cixi, Zhejiang, China HS Code 8501109101 Production Capacity 30000PCS/Month

Product Description

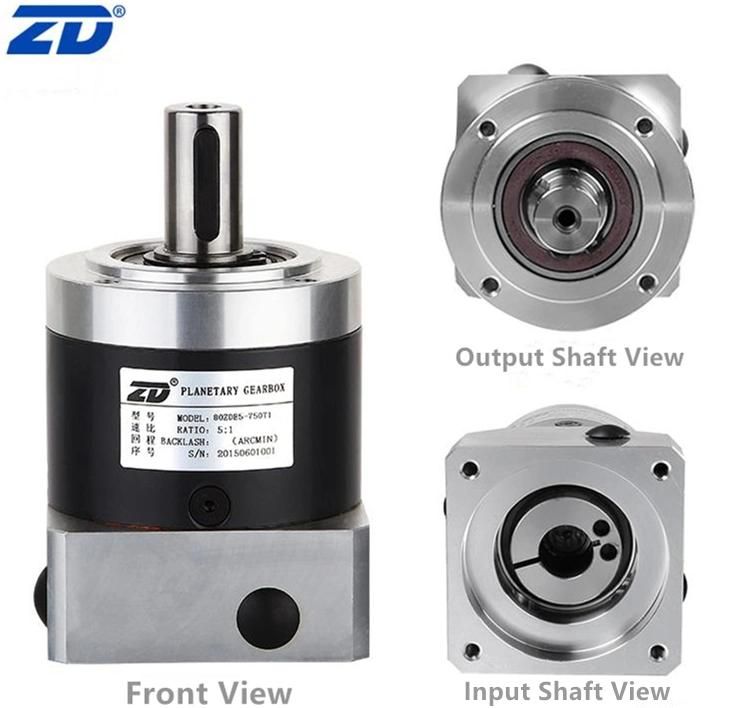

Servo Motor Planetary Gearbox




High precision planetary gearbox matched with serve motor, stepping motor are widely used. Lowest backlash<3"); High output torques; High efficiency(96%); Honed toothings; 22 ratios I=3, ...., 512; Low noise(<65dB(A)); Any mounting position; Easy motor mounting; Life time lubrication; Figure diameters 40, 60, 80, 120, 160mm. More options.

Planetary gearbox:
ZDE: Precision planetary-round flange output
ZDF: Precision planetary-square flange output
ZDWE: Precise planetary-right angle round flange output
ZDWF: Precise planetary-right angle square flange output
ZDS: Precise planetary-high rigidity, low back lash

Rated output torque	N. M	4.5-1800
Instant stop torque	N. M	Two times of rated output torque
Life	Hour	30, 000
Full load efficiency		90%, 94%, 96%
Operating temperature	° C	-25---+90
IP		IP54
Lubrication type		Lifetime lubrication
Mounting type		Any



Product type		PL40	PL60	PL80	PL120	PL1600
Torsional stiffness	N. M/arcmin	0.7	1.8	4.5	12	38
Noise	dB(A)	55	58	60	65	70
Max output speed	Min	10000	8000	6000	6000	6000
Recommend input speed	Min	4500	4000	4000	4000	3000

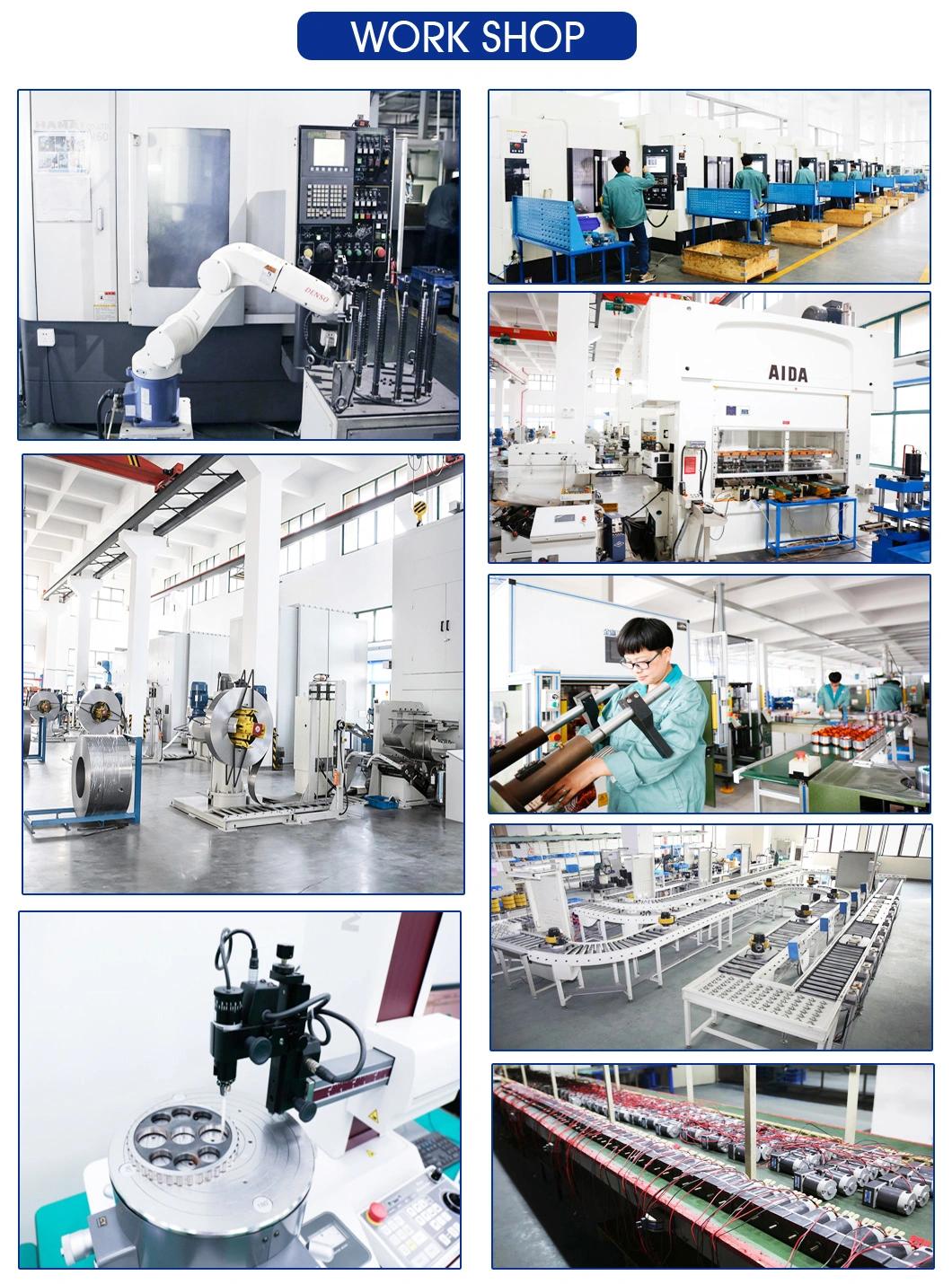

Company Information




FAQ
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.


Please contact us if you have detailed requests, thank you !
