• Model NO.：RV
• Type：Worm Reducer
• Input Power:0.09~1.5kw：Ratio:100~5000(up to 32000 by Combination)
• Gearbox Housing: Aluminum or Steel：Mounting Type: Foot or Flange Mounted
• Transport Package：Wooden Case
• Specification：ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：6 000 PCS, Month

Basic Info.

Model NO. RV Type Worm Reducer Input Power:0.09~1.5kw Ratio:100~5000(up to 32000 by Combination) Gearbox Housing: Aluminum or Steel Mounting Type: Foot or Flange Mounted Transport Package Wooden Case Specification ISO Trademark AOKMAN DRIVE Origin China HS Code 8483409000 Production Capacity 6 000 PCS/ Month

Product Description

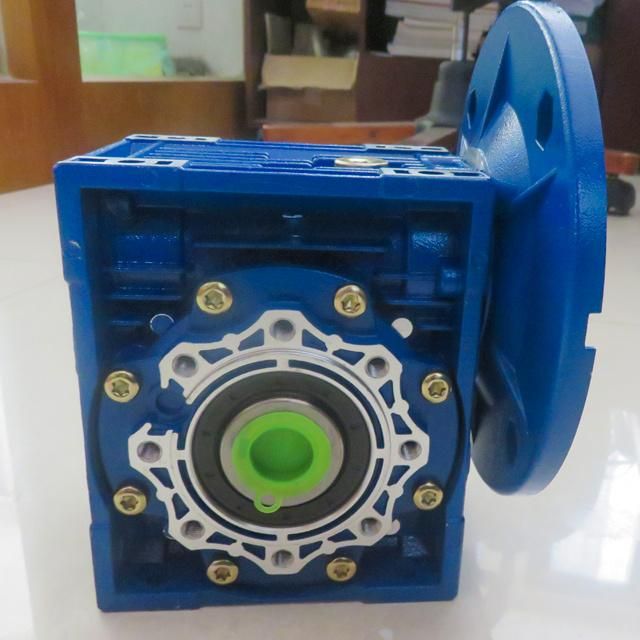

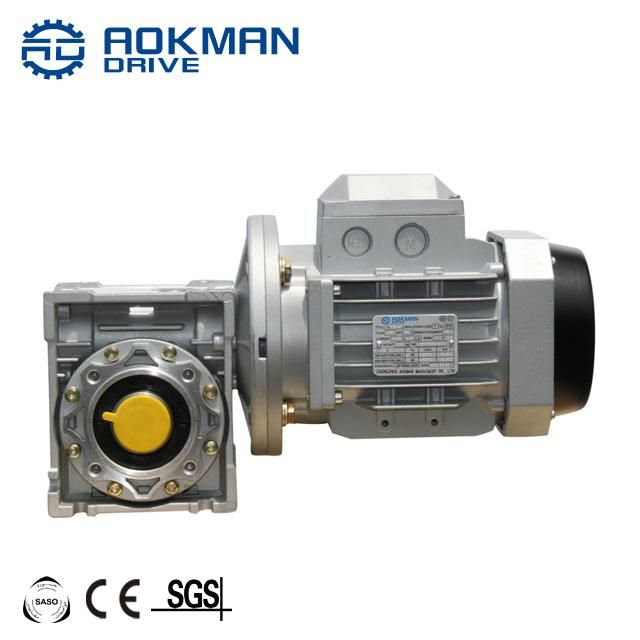

Worm Gear Box/Gearbox Reducer with electric motorComponents:
1. Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)
Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: Wearable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding
4. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
IEC-normalized Motor Flange
Solid Shaft Input
Worm Shaft Tail Extension Input
5. Output Configurations:
Keyed Hollow Shaft Output
Hollow Shaft with Output Flange
Plug-in Solid Shaft Output
6. Spare Parts: Worm Shaft Tail Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover
7. Gearbox Painting:
Aluminium Alloy Gearbox:
After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey
Cast Iron Gearbox:
After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue
Models:
Hollow Shaft Input with IEC-normalized Motor Flange
RV025~RV150
Solid Shaft Input
RV025~RV150
Features:
1. Quality aluminum alloy gear box, light weight and not rust
2. 2 optional worm wheel materials: Tin bronze or aluminum bronze alloy
3. Standard parts and very flexible for shaft configurations and motor flange interface
4. Several optional mounting options
5. Low noise, High efficiency in heat dissipation

Parameters:

Models	Rated Power	Rated Ratio	Input Hole Dia.	Input Shaft Dia.	Output Hole Dia.	Output Shaft Dia.	Center Distance
RV025	0.06KW~0.12KW	5~60	Φ9	Φ9	Φ11	Φ11	25mm
RV030	0.06KW~0.25KW	5~80	Φ9(Φ11)	Φ9	Φ14	Φ14	30mm
RV040	0.09KW~0.55KW	5~100	Φ9(Φ11,Φ14)	Φ11	Φ18(Φ19)	Φ18	40mm
RV050	0.12KW~1.5KW	5~100	Φ11(Φ14,Φ19)	Φ14	Φ25(Φ24)	Φ25	50mm
RV063	0.18KW~2.2KW	7.5~100	Φ14(Φ19,Φ24)	Φ19	Φ25(Φ28)	Φ25	63mm
RV075	0.25KW~4.0KW	7.5~100	Φ14(Φ19,Φ24,Φ28)	Φ24	Φ28(Φ35)	Φ28	75mm
RV090	0.37KW~4.0KW	7.5~100	Φ19(Φ24,Φ28)	Φ24	Φ35(Φ38)	Φ35	90mm
RV110	0.55KW~7.5KW	7.5~100	Φ19(Φ24,Φ28,Φ38)	Φ28	Φ42	Φ42	110mm
RV130	0.75KW~7.5KW	7.5~100	Φ24(Φ28,Φ38)	Φ30	Φ45	Φ45	130mm
RV150	2.2KW~15KW	7.5~100	Φ28(Φ38,Φ42)	Φ35	Φ50	Φ50	150mm

Ratio: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
Installation:
Flange Mounted
Foot Mounted
Torque Arm Mounted
Lubrication:
Grease Lubrication
Oil-bath and Splash Lubrication
Cooling:
Natural Cooling



Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.

Customer visiting:

FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variable , RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:What is the material you use?
A:Die-cast Aluminium Alloy Gearbox (RV025~RV090)
Cast Iron Gearbox (RV110~RV150)
3.Q: Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
