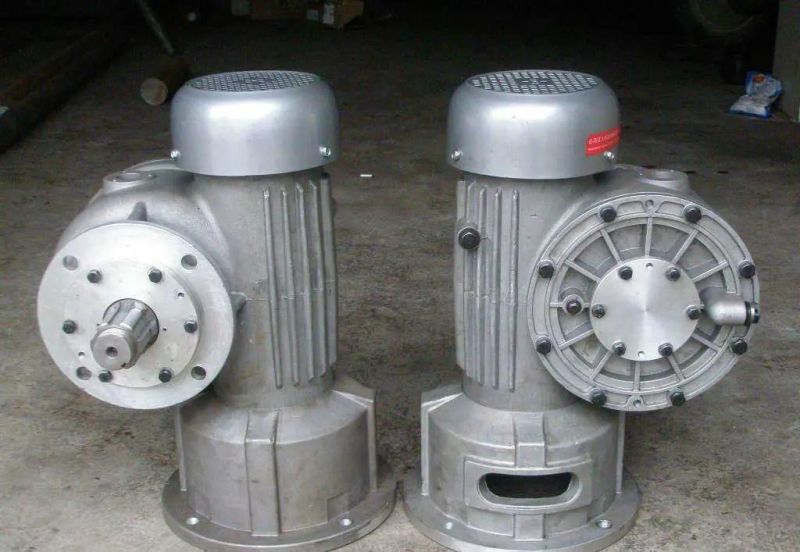

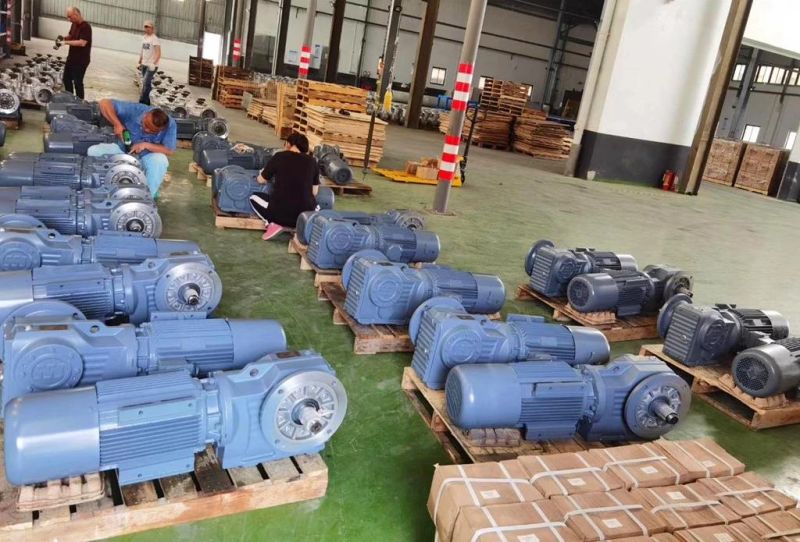

Different Pinion Rack Motors Gearbox Safety Device for Construction Hoist
Shandong Xingdou Intelligent Equipment Co., Ltd.- Application：Motor, Machinery, Rack Pinion Hoist
- Function：Distribution Power, Change Drive Torque, Speed Changing, Speed Reduction
- Layout：Three-Ring
- Hardness：Hardened Tooth Surface
- Installation：Vertical Type
- Step：Three-Step
Base Info
- Model NO.：driven systerm electric motor
- Type：Worm Gear Box
- Product Name：Pinion Rack Motors Gearbox Safety Device
- Driving Motor：2X11kw, 3X11kw, 2X13kw, 3X13kw, 2X15kw
- Rated Lifting Speed：0-36m,Min,0-46m,Min, 0-63m,Min
- Max Erection Height：250m
- Motor Power：2X15kw, 2X13kw, 3X11kw
- Mast Section Size：650X650X1508mm
- Wall-Tie Adjust Length&Qty：1.9-2.1m 1pieces,5 Mast
- Mast Section Weight：145-180kg (Double Racks)
- Gearbox Model：Tcw125, Tcw144
- Gearbox Ratio：1:16
- Rack：T=60, M8
- Pinion：T=15

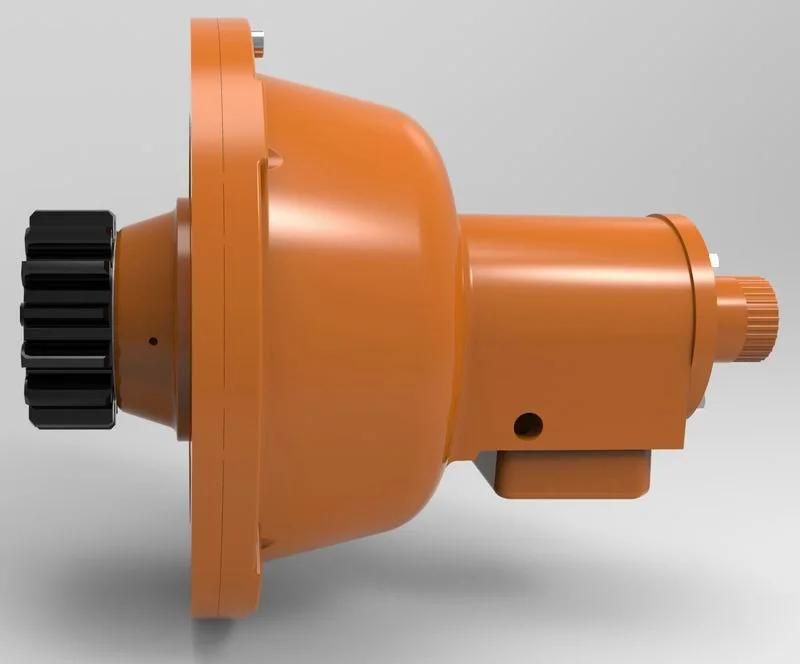

- Safety Device：Saj40-1.2, Saj30-1.2, Saj40-1.4, Saj40-2.0
- Transport Package：Carton Box
- Trademark：XINGDOU
- Origin：China
- HS Code：8428109000
- Production Capacity：3000sets , Year
Description
Basic Info.
Model NO. driven systerm electric motor Type Worm Gear Box Product Name Pinion Rack Motors Gearbox Safety Device Driving Motor 2X11kw, 3X11kw, 2X13kw, 3X13kw, 2X15kw Rated Lifting Speed 0-36m/Min,0-46m/Min, 0-63m/Min Max Erection Height 250m Motor Power 2X15kw, 2X13kw, 3X11kw Mast Section Size 650X650X1508mm Wall-Tie Adjust Length&Qty 1.9-2.1m 1pieces/5 Mast Mast Section Weight 145-180kg (Double Racks) Gearbox Model Tcw125, Tcw144 Gearbox Ratio 1:16 Rack T=60, M8 Pinion T=15 Safety Device Saj40-1.2, Saj30-1.2, Saj40-1.4, Saj40-2.0 Transport Package Carton Box Trademark XINGDOU Origin China HS Code 8428109000 Production Capacity 3000sets / YearProduct Description
Different Pinion Rack Motors gearbox safety device for construction hoist

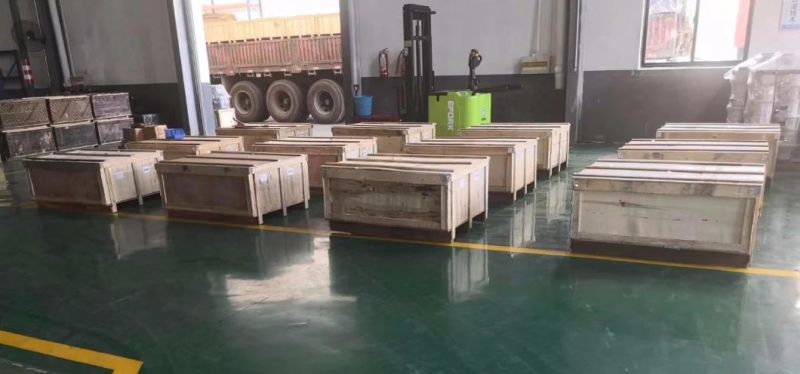

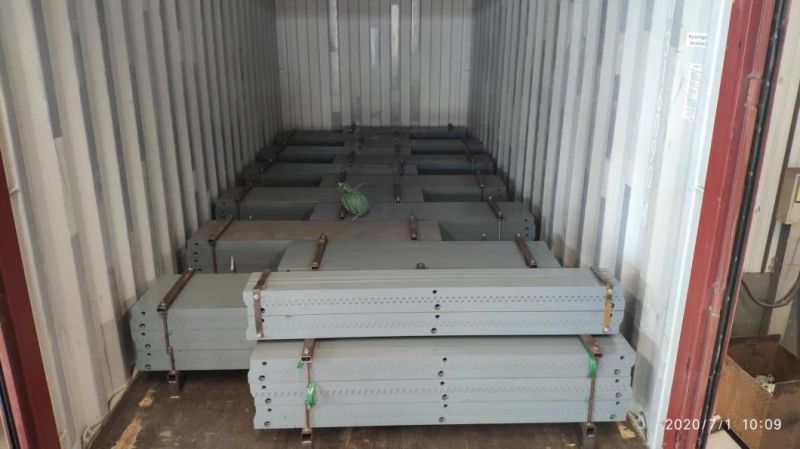

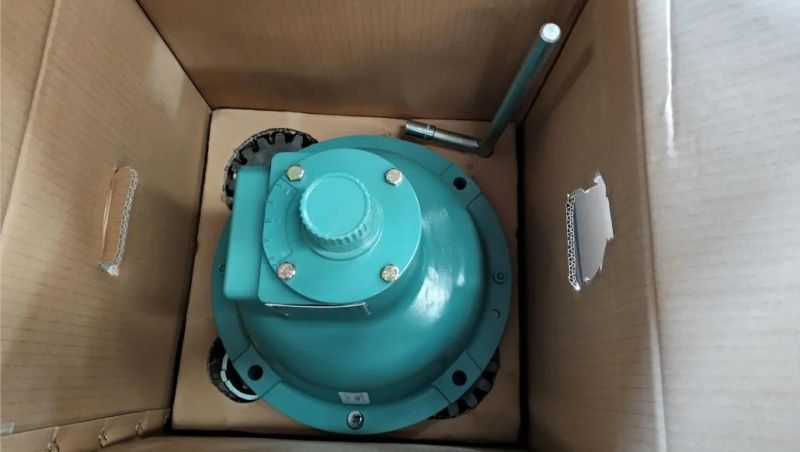

Packaging & Delivery
