DIN Standard Steel Roller Chain Sprockets 06b 08b 10b 12b 16b 20b 24b 28b 32b

Sichuan Mighty Machinery Co. Ltd.
  • Standard Or Nonstandard：Standard
  • Application：Motor, Electric Cars, Motorcycle, Machinery
  • Hardness：Hardened Tooth Surface
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Spur Gear
  • Material：Steel, C45

Base Info

  • Model NO.：06B 08B 10B 12B 16B 20B 24B 28B 32B
  • Type：Sprocket Wheel
  • Model Number：06b 08b 10b 12b 16b 20b 24b 28b 32b
  • Bore Type：Standard, Set Screw, Bearing, Keyway, Taper Bush
  • Surface Finish：Anodize, Zinc Plate, Phosphate, Black Oxide, Paint
  • Tooth Radius：13mm
  • Tooth Width：7.2 mm
  • Chain Pitch：12.7mm (1,2" Inch)
  • Chain Inner Width：7.75mm
  • Transport Package：Wooden Case+Pallot Packing
  • Specification：Material: Steel
  • Trademark：Mighty
  • Origin：China
  • Production Capacity：10000,Week

Description

Overview Product Description

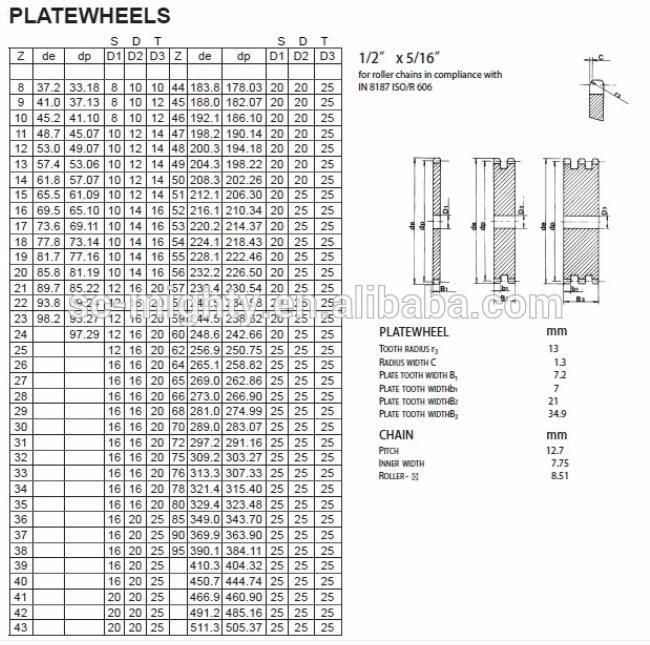

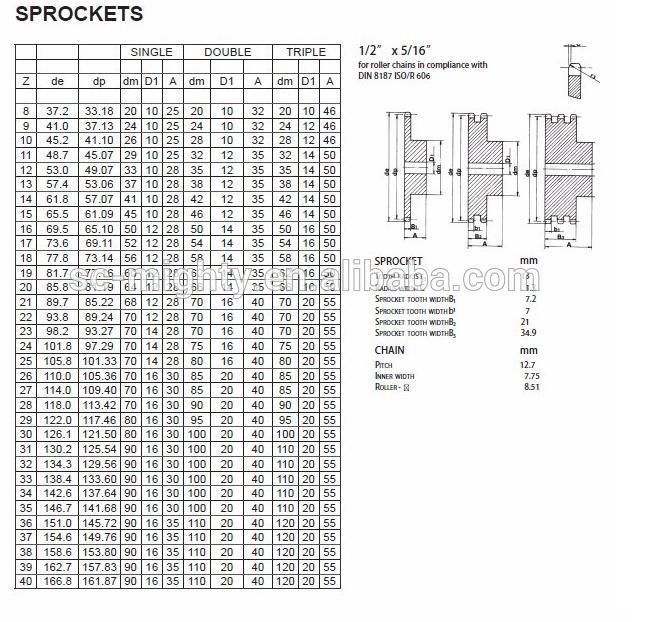

Product Parameters

DIN Standard Steel Roller Chain Sprockets 06b 08b 10b 12b 16b 20b 24b 28b 32bDIN Standard Steel Roller Chain Sprockets 06b 08b 10b 12b 16b 20b 24b 28b 32b

Packaging & Shipping

Company Profile

FAQ

Q: Are you trading company or manufacturer ?A: We are factory.

Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
