Products nameSpherical Roller BearingsBearing material100% Ccr15 Chrome SteelCage Material:brass cage, steel cage Model No.:Spherical roller bearing 23184MB Size:280x460x146mm            Weight:104kgSeal type:openNo. Of rowdouble-row(two rows)Type:CC,CCK,CA,CAK,E,EK, K.MB, EAE4,E1.KClearance:C0, C3, C4 ,C5Application:Steel industry, oil industry, cement industry, mining & construction, papermaking machinery, rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machineryFeatures of spherical roller bearing:
C: Stamped steel retainer and strengthened symmetric rollers for considerably higher load ratings;
CA: one-piece brass retainer and strengthened symmetric rollers;
        exchange with C design, especially for large size.
MB: Two-piece precision-machined brass retainer and strengthened symmetric rollers;
        equivalent to C design in load capacity.
CC: steel cage, replace traditional brass cage.
E: Third generation design to improve stress distribution for much longer service life
TN: Nylon retainer.
Mainly Application examples: heavy machinery (e.g. construction and mining machines), rolling mills, gearboxes, Vibrating screen, shaker screens, etc.

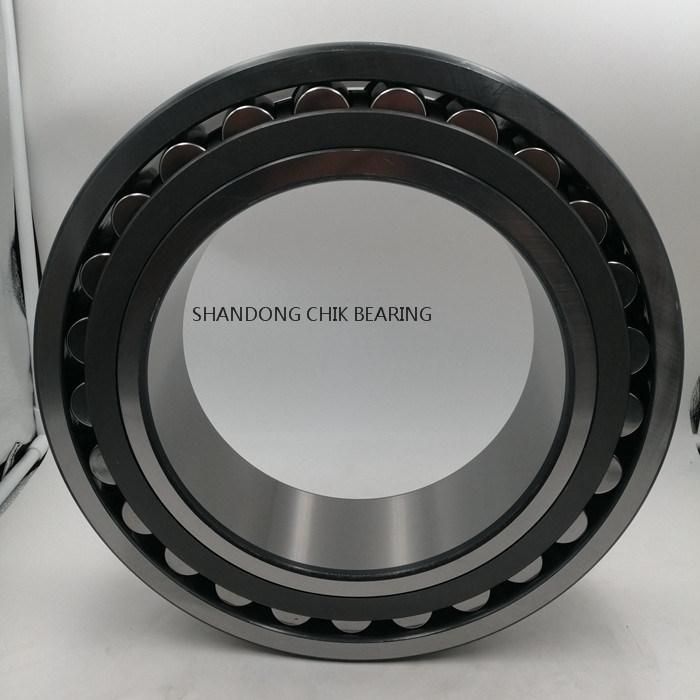

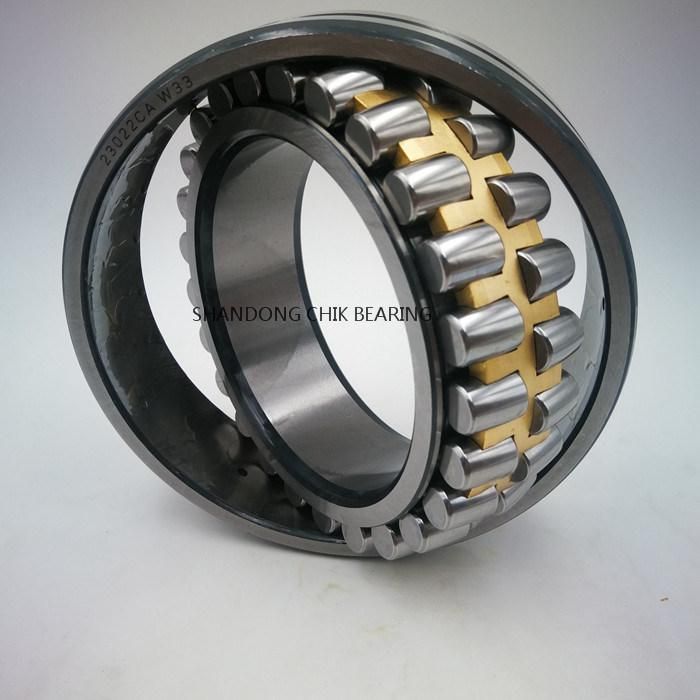

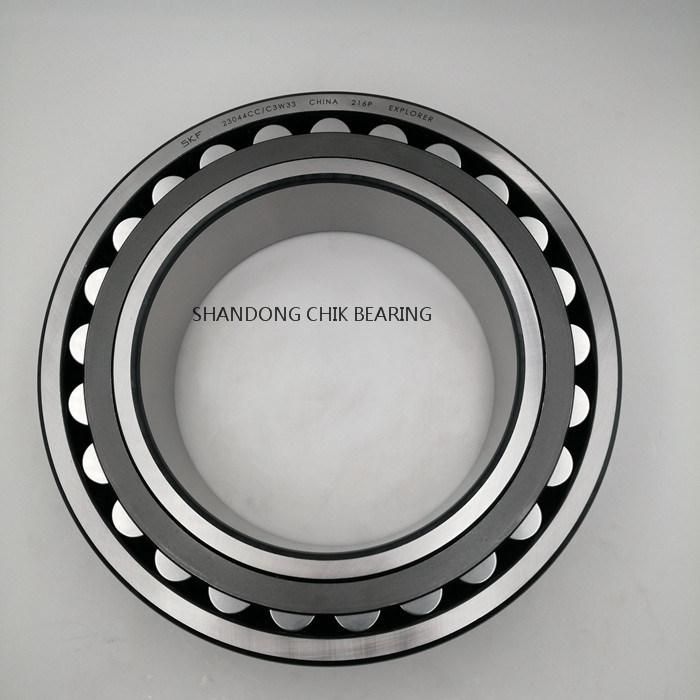

CA CC MB MA E Bearing Photo Show:







Spherical roller bearing suffixes
(a) CA: Integral brass cage, double row symmetrical rollers, inner ring ride
(b) MA: Integral brass cage, double row symmetrical rollers, outer ring ride
(c) MB: Two-piece brass cage, double row asymmetrical rollers, inner ring ride
(d) CC: Two-piece steel cage, double row symmetrical rollers, inner ring ride
(e) CTN1: double row symmetrical rollers, nylon cage
(f) K: Tapered bore bearing, the taper is 1:12
(g) K30: Tapered bore bearing, the taper is 1:30
(h) W33: With lubrication groove in the outer ring, with three oil holes
(i) C2/C3/C4: Internal clearance series: C0, C2, C3, and C4

 spherical roller bearing models we have

Bearing NO.        Bearing NO.        Bearing NO.
23956CA/W33 3053956K 280x380x75 26
23956CAK/W33 3153956K 280x380x75 26
23956CAQ1/W33 3053956QK 280x380x75 25.7
23956CAQ1/S0W33 3053956QKT 280x380x75 25.7
23960CA 3053960 300x420x90 40.5
23960C/W33 3053960Y 300x420x90 37.2
23960CAK/W33 3153960K 300x420x90 40.5
23960CAF3 3053960W2 300x420x90 40.5
23960CAF3/W33 3053960W2K 300x420x90 40.5
23964CA 3053946 320x440x90 0
23964K 311394 320x440x90 45.1
23964CAK 3153964 320x440x90 0
23964CA/W33 3053964K 320x440x90 42
23964CAK/W33 3153964K 320x440x90 42
23964K/C5 5G3113964 320x440x90 45.1
23968CA 3053968 340x460x90 45.6
23968K 3113968 340x460x90 47.6
23968CAK 3153968 340x460x90 0
23968CA/W33 3053968Y 340x460x90 749.7
23968/C3 3G3003968 340x460x90 47.6
23968CAF3/W33 3053968W2K 340x460x90 45.6
23972 3003972 360x480x90 49.1
23972CA 3053972 360x480x90 46.6
23972CAK 3153972 360x480x90 0
23972CAF3/W33 3053972W2K 360x480x90 49.1
23976 3003976 380x520x106 73.5
23976CA 3053976 380x520x106 70.5

Mainly Application: heavy machinery (e.g. construction and mining machines), rolling mills, Vibrating screen, shaker screens, etc. Papermaking machinery, rolling mill gearbox, rolling mill roller bearing, crusher, vibrating screen, printing machinery, woodworking machinery, railway vehicle axle other industrial deceleration machines

FAQ
Q: Can I customize the bearings?
A: Yes, sure .we provide customize- made service. You need to send us the drawings for our further handing.
Q: Are you a factory or trading company?
  A: CHIK  Bearing Co., Ltd is specialized in manufacturing and exporting Bearing. We have our own factory and Warehouse located in Jinan city.
Q: Can I get some samples and do you offer the sample free?
  A:  If we have stock, we can send you a free sample. And you just need to pay the freight. If there have no stock, you need to pay the sample fee and freight.
Q: What is the MOQ for bearing?
A: usually is 1 pc
