Basic Info.

Model NO. SX series Separated Separated Transport Package Industrial Pack Trademark ZYS Origin China HS Code 8482400000 Production Capacity 2000-3000/Month

Product Description

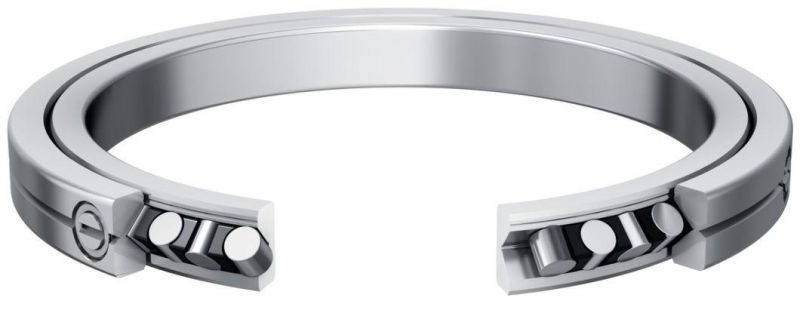

SX Series Crossed Cylindrical Roller Bearings (Integral inner ring, split outer ring, ultra-thin)

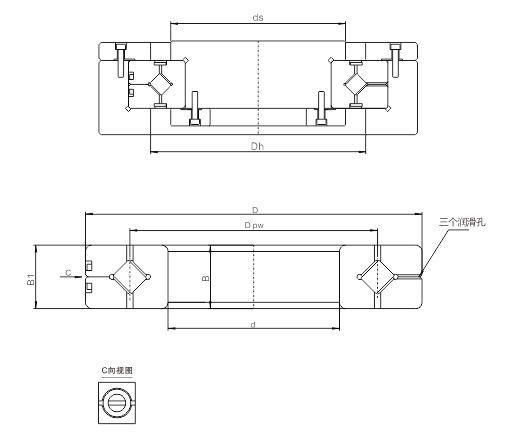

SX series crossed cylindrical roller bearings, under the same journal, this type has a smaller cross-sectional size than RB series. Due to the ultra-thin design, the outer ring and inner ring have no mounting holes, and flanges and flanges are required for installation. The support seat is fixed and is suitable for applications where the inner ring rotates.

Crossed roller bearings SX conform to ISO dimension series 18 in accordance with DIN 616. They are without gear teeth, unsealed, greased and with clearance, reduced clearance or preloaded. The outer ring is split in the circumferential direction and is held together by three retaining rings.
