Basic Info.

Model NO. NU216ECM/C4VA3091 Rows Number Single Load Direction Radial Bearing Material Bearing Steel Product Name Outer Insulation Bearing 6316m/C3 Vl0241 Size 80*140*26mm Weight 1.71 Vibration Zv1, Zv2, Zv3, or as Requested Transport Package Single Box Packaging/OEM Specification 80*140*26mm Trademark TFN/OEM Origin China HS Code 8482102000 Production Capacity 10000/Month

Packaging & Delivery

Package size per unit product 80.00cm * 140.00cm * 30.00cm Gross weight per unit product 2.000kg

Product Description

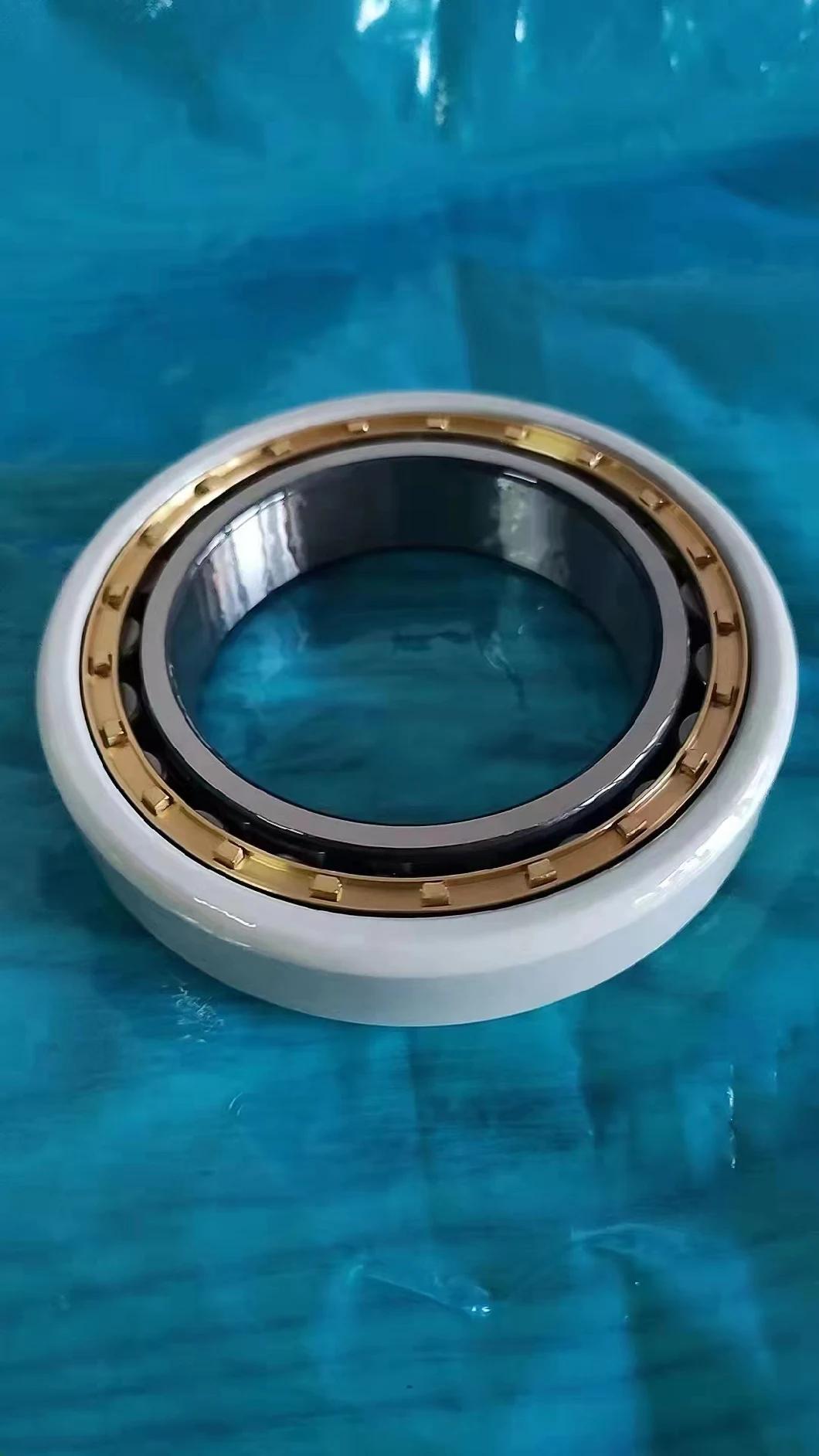

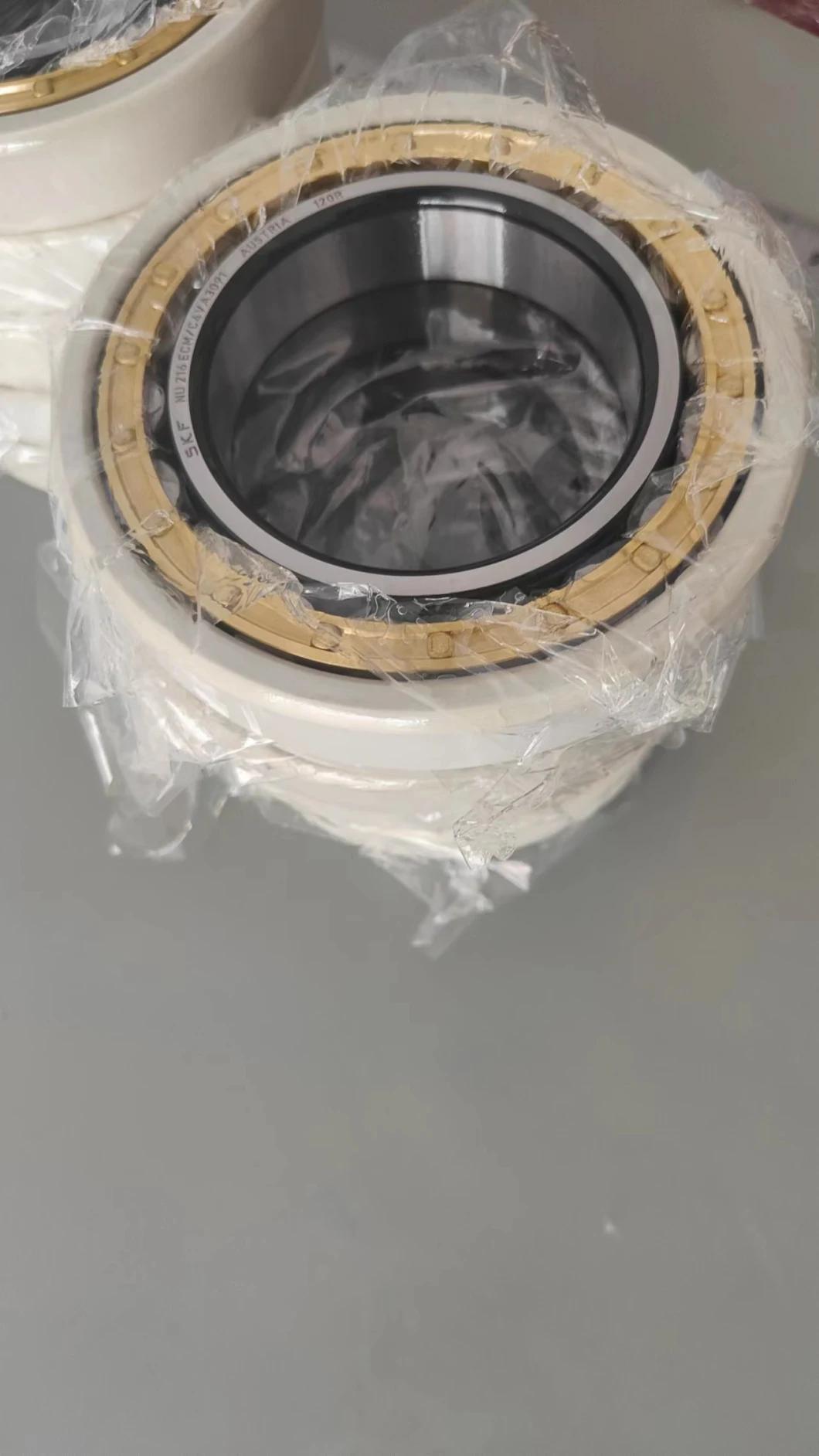

The NU216ECM/C4VA3091 is a single-row cylindrical roller bearing with cage

• Item Number:NU216ECM/C4VA3091
• EAN:7316571428796
• Category:Cylindrical Roller Bearing Single Row

Weight and Dimensions

• Inner (d): MM80
• Outer (D): MM140
• Width (B): MM26
• Weight (kg):1.71

Product Properties

• Bore:C - Cylindrical Bore
• Seal:No Seal
• Cage Type M :- Brass Cage
• External Modification:No External Modification
• Radial Internal Play:C4 Internal Play (Higher than C3)
• Precision :Breakdown Voltage 1000v
• Heat Stabilization :No Heat Stabilization - Temperatures up to 120 °C

• Suffix description

• E:COptimized Internal Design Incorporating More And/Or Larger Rollers And With Modified Roller/End Flange Contact
• M:Two-Piece Machined Brass Cage, Roller Centered
• C4:Bearing Internal Clearance Greater Than C3
• VA3091:Combination of VA301 (Bearing For Railway Vehicle Traction Motors) And
• VL0241:Aluminium Oxide Coated Outside Surface Of The Outer Ring For Electrical Resistance Up To 1.000v DC)
•



 deep groove ball bearing packaging
FAQ of deep groove ball bearing

1.Q:Are you a factory or trading company?
 A:SEMRI Bearing is specialized in manufacturing and exporting bearings.
 SEMRI Bearing have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
 A:Yes, sure, SEMRI Bearing are honored to offer you samples.Can you buy a ticket ?3.Q:What is the payment?
  A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
 B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
   A: SEMRI Bearing MOQ is 1 pc.
5.Q:What kind of service you can offer?
 A:Technology support;Installation guidance;OE
