BallFor Load DirectionCombined Radial and ThrustSingle Row/Double RowSingleSeal TypeOpenPrecision RatingPN7CContact Angle60 oPart Number30TAC62CArrangementSU (universal arrangement single row)Bore Dia (d)30 mmBore Dia Tolerance-0.005mm to 0Outer Dia (D)62 mmOuter Dia Tolerance-0.007mm to 0Width (B)15 mmWidth Tolerance-0.12mm to 0Ring Material52100 Chrome steelBall MaterialCeramic Ball Si3N4Cage MaterialPolyamideBasic Dynamic Load Rating Ca
(Classification by Fa Load Row Number)Single Row
Load(kN)30.5Double Row
Load(kN)50Triple Row
Load(kN)66Limiting Axial load
(Classification by Fa Load Row Number)Single Row
Load(kN)43Double Row
Load(kN)86Triple Row
Load(kN)129Max Speed (RPM)4900PreloadH (heavy preload)LubricationRequiredShaft Install TypePress FitTemperature Range-40 to 120 oCWeight (grams)224RoHSCompliant

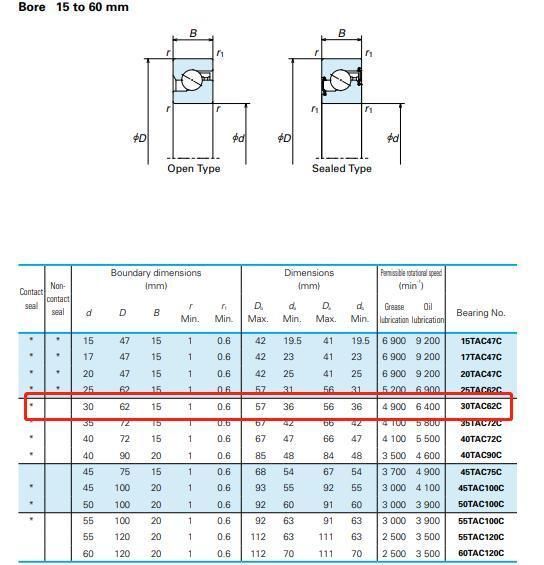

Ball Screw Support Bearings 30TAC62C,  (30*62*15 mm),  30 mm d (Bore: diameter of the inner ring),  62 mm D (Outside: diameter of the outer cylindrical surface of the outer ring),  15 mm B (Width: nominal width of the bearing),

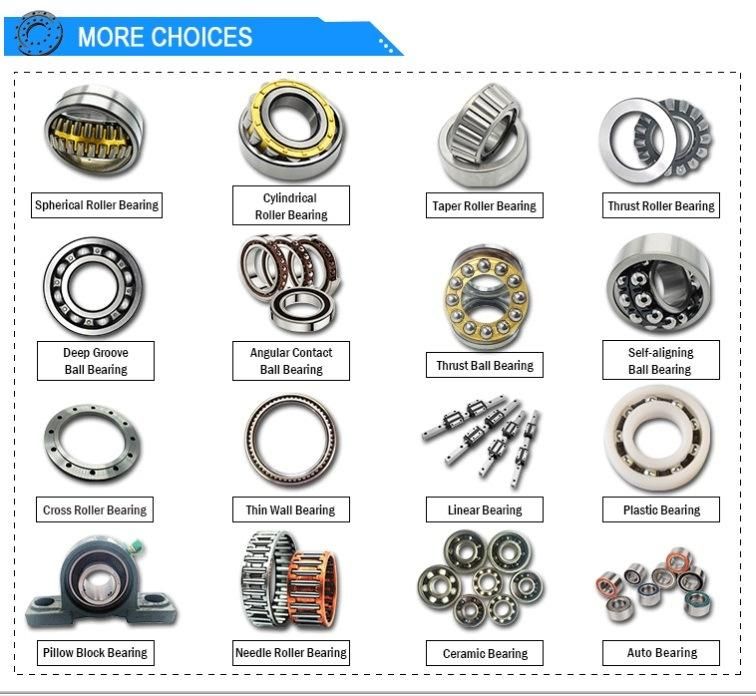

More model of Angular Contact Ball Bearing more detail

FAQ

1.Q:Are you a factory or trading company?
 A:SEMRI Bearing is specialized in manufacturing and exporting bearings.
 SEMRI Bearing have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
 A:Yes, sure, SEMRI Bearing are honored to offer you samples.Can you buy a ticket ?3.Q:What is the payment?
  A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
 B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
   A: SEMRI Bearing MOQ is 1 pc.
5.Q:What kind of service you can offer?
 A:Technology support;Installation guidance;OEM
