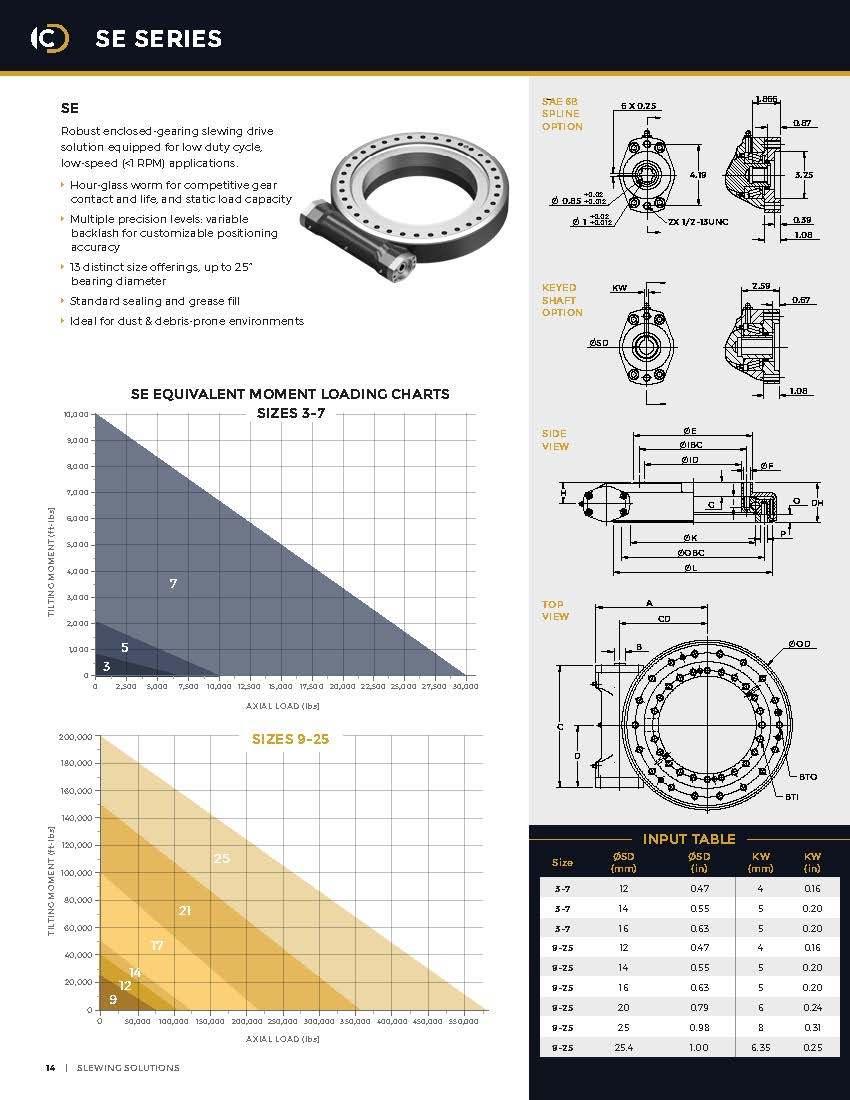

Se14 14 Inches Single Axis Solar Tracking System Bearing Slewing Drives

Jimmy Technology (Huizhou) Co., Ltd.

Base Info

Description

Basic Info.

Model NO. SE14 Type Internal Gear Transport Package Wooden Specification metal Trademark Jimi-tech Origin Dongguan China HS Code 8482800000 Production Capacity 10000/Month

Product Description

Se14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSe14 14 Inches Single Axis Solar Tracking System Bearing Slewing DrivesSE14/V14
Application: Photovoltaic power generation
Gear Ratio: 62:1
Output Torque:5.5-8.5 KN.M
Tilting Moment Torque: 16 KN.M
Holding Torque: 36 KN.M
Output Speed: 1 rpm
Static Axial Rating:7 KN
Static Radial Rating: 7 KN
Holding Stiffness: 3100 NM/mrad
Bending Stiffness:1900 NM/mrad
Mechanical efficiency: 40%
Self-locking: Reliable Static
Precision: ≤0.2°
International Protection: IP65
Temperature using: -20°c-+70°c
