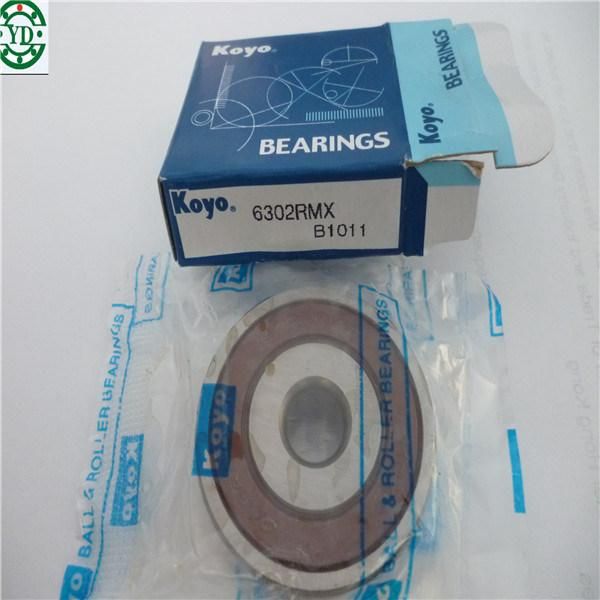

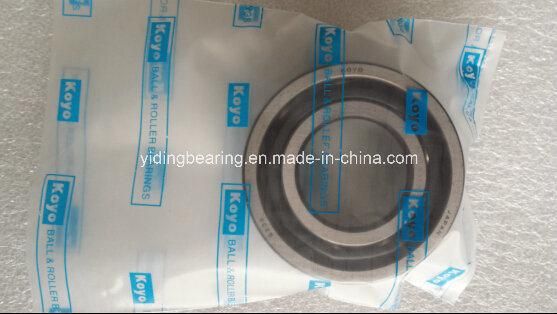

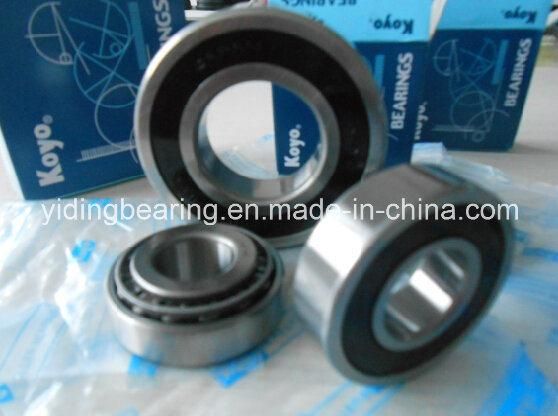

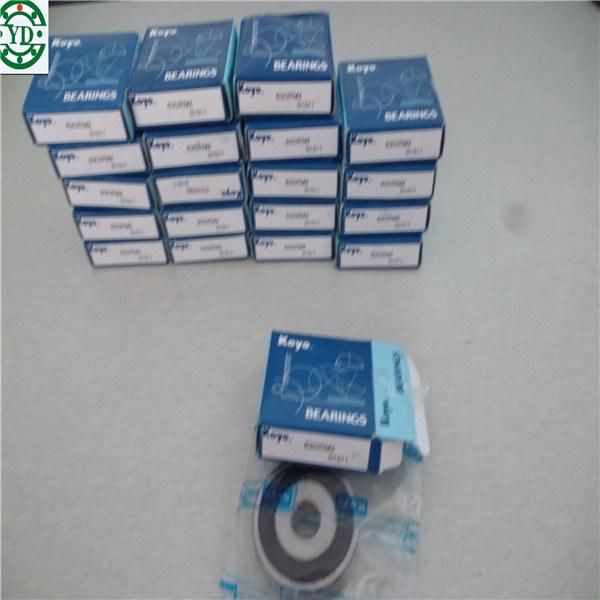

Deep Groove Ball Bearing Japan Koyo 6302rmx
Zaozhuang Yiding Bearing Co., Ltd.Base Info
Description
Bearing
NoBore
d(mm) O.d
D(mm) Width
B(mm) Load Rating Weight
(kg) Dynamic Static 625 5 16 5 1.13 0.56 0.005 626 6 19 6 2.01 1.05 0.008 627 7 22 7 2.53 1.36 0.014 628 8 24 8 2.57 1.36 0.016 629 9 26 8 3.52 1.95 0.019 6200 10 30 9 3.93 2.23 0.032 6201 12 32 10 5.25 3.05 0.035 6202 15 35 11 5.88 3.49 0.045 6203 17 40 12 7.36 4.48 0.064 6204 20 47 14 9.88 6.20 0.103 62/22 22 50 14 13.35 7.25 0.121 6205 25 52 15 10.78 6.98 0.127 62/28 28 58 16 15.52 8.56 0.171 6206 30 62 16 19.97 11.2 0.199 62/32 32 65 17 23.5 13.1 0.240 6207 35 72 17 25.7 15.4 0.287 6208 40 80 18 29.1 17.8 0.367 6209 45 85 19 32.7 20.3 0.416 6210 50 90 20 35.1 23.3 0.462 6211 55 100 21 43.4 29.4 0.602 6212 60 110 22 52.4 36.2 0.789
No
d(mm)
D(mm)
B(mm)
(kg)
