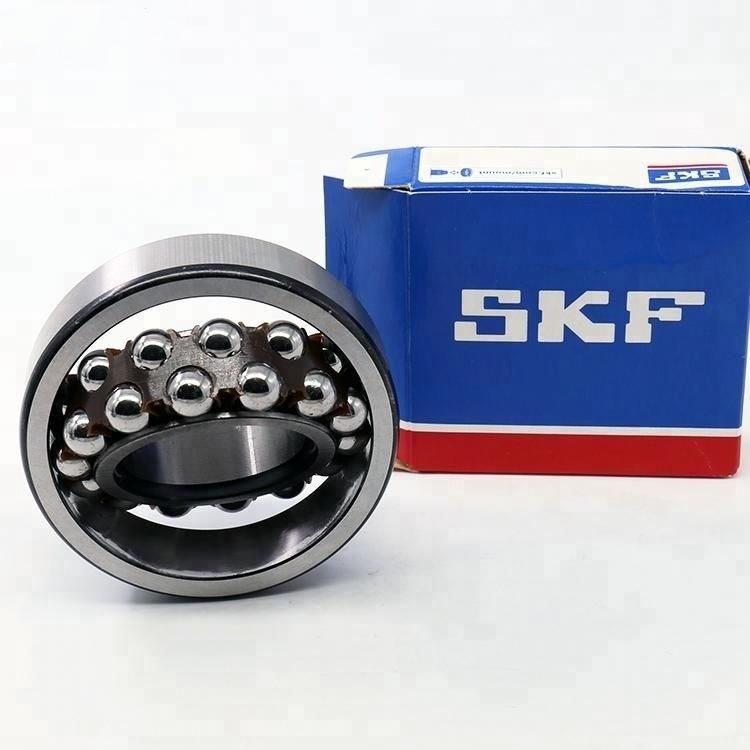

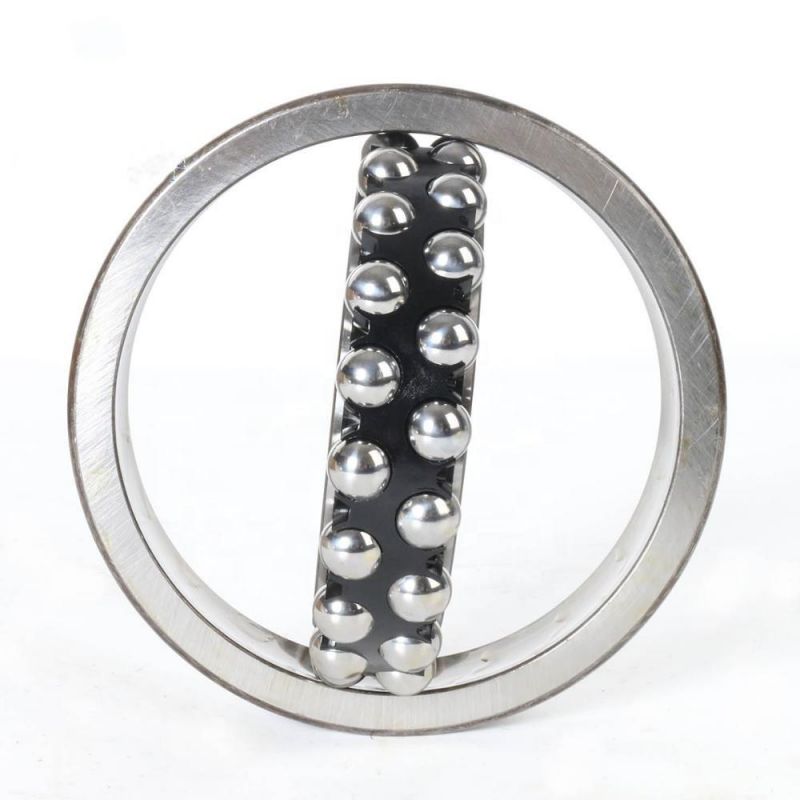

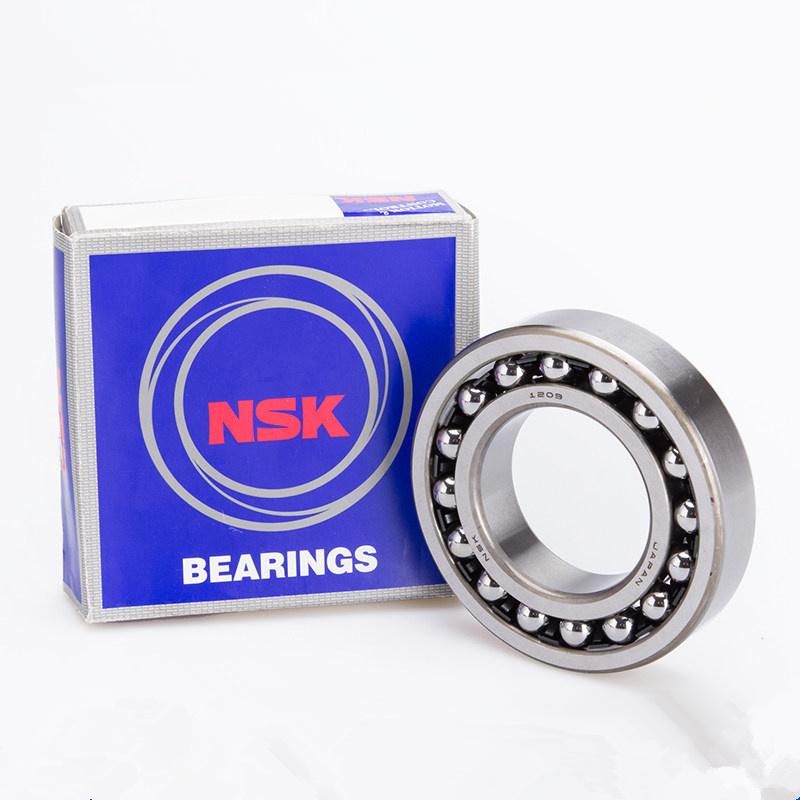

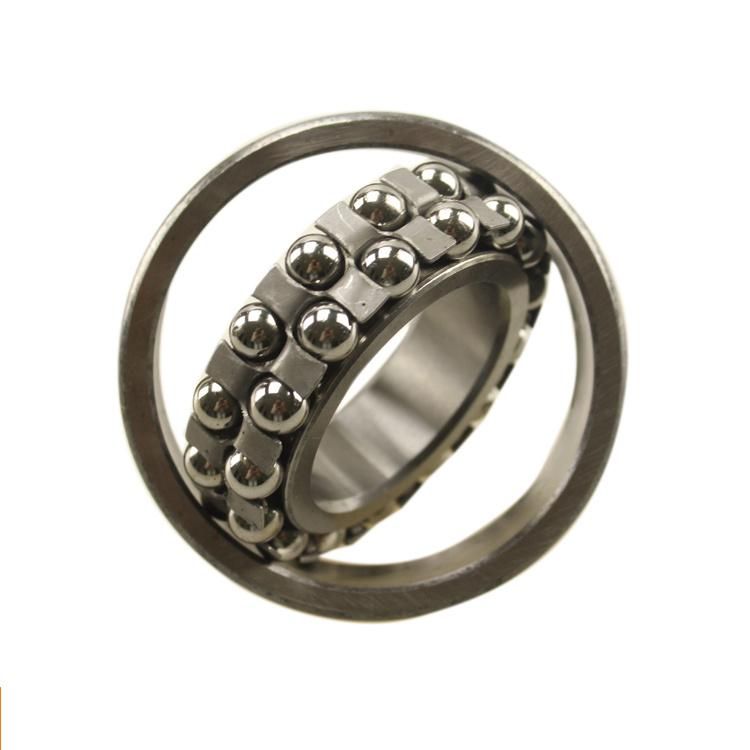

1209, 1210, 1211, 1212, 1213, 1214, 1215, 1216, 1217, 1218 Self-Aligning Ball Bearing 45X85X19mm
SHANGHAI CORES INDUSTRIAL CO., LTD.Base Info
Description
1200 series1200 10 30 9 0.6 5.5 1.19 21,000 24,000 0.033 1201 12 32 10 0.6 5.6 1.27 18,000 22,000 0.04 1202 15 35 11 0.6 7.45 1.75 16,000 19,000 0.049 1203 17 40 12 0.6 7.9 2.01 14,000 17,000 0.072 1204 20 47 14 1 9.9 2.61 13,000 15,000 0.116 1204K 20 47 14 1 9.9 2.61 13,000 15,000 0.114 1205 25 52 15 1 12.1 3.3 11,000 13,000 0.138 1205K 25 52 15 1 12.1 3.3 11,000 13,000 0.135 1206 30 62 16 1 15.6 4.65 9,200 11,000 0.217 1206K 30 62 16 1 15.6 4.65 9,200 11,000 0.213 1207 35 72 17 1.1 15.8 5.1 8,000 9,400 0.317 1207K 35 72 17 1.1 15.8 5.1 8,000 9,400 0.312 1208 40 80 18 1.1 19.3 6.55 7,100 8,400 0.414 1208K 40 80 18 1.1 19.3 6.55 7,100 8,400 0.407 1209 45 85 19 1.1 21.9 7.35 6,400 7,500 0.457 1209K 45 85 19 1.1 21.9 7.35 6,400 7,500 0.448 1210 50 90 20 1.1 22.7 8.1 5,800 6,800 0.515 1210K 50 90 20 1.1 22.7 8.1 5,800 6,800 0.504 1211 55 100 21 1.5 26.8 10 5,300 6,200 0.692 1211K 55 100 21 1.5 26.8 10 5,300 6,200 0.679 1212 60 110 22 1.5 30 11.5 4,900 5,800 0.879 1212K 60 110 22 1.5 30 11.5 4,900 5,800 0.864 1213 65 120 23 1.5 31 12.5 4,500 5,300 1.13 1213K 65 120 23 1.5 31 12.5 4,500 5,300 1.11 1214 70 125 24 1.5 34.5 13.8 4,200 4,900 1.24 1215 75 130 25 1.5 39 15.7 3,900 4,600 1.33 1215K 75 130 25 1.5 39 15.7 3,900 4,600 1.31 1216 80 140 26 2 40 17 3,700 4,300 1.65 1216K 80 140 26 2 40 17 3,700 4,300 1.62 1217 85 150 28 2 49 20.8 3,500 4,100 2.06 1217K 85 150 28 2 49 20.8 3,500 4,100 2.03 1218 90 160 30 2 57 23.5 3,300 3,800 2.51 1218K 90 160 30 2 57 23.5 3,300 3,800 2.47 1219 95 170 32 2.1 64 27.1 3,100 3,600 3.1 1219K 95 170 32 2.1 64 27.1 3,100 3,600 3.05 1220 100 180 34 2.1 69 29.7 2,900 3,400 3.7 1220K 100 180 34 2.1 69 29.7 2,900 3,400 3.64 1221 105 190 36 2.1 74.5 32.5 2,800 3,300 4.34 1222 110 200 38 2.1 80.5 35.5 2,600 3,100 5.15 1222K 110 200 38 2.1 80.5 35.5 2,600 3,100 5.07
Production category:
Transportation Mode:
| bearing code | d | D | B | C | C0 | Pu | reference speed | limiting speed | mass |
| mm | mm | mm | kn | kn | kn | r/min | r/min | kg | |
| 1214 ETN9 | 70 | 125 | 24 | 35,8 | 14,6 | 0,75 | 11000 | 7000 | 1,25 |
| 2214 | 70 | 125 | 31 | 44,2 | 17 | 0,88 | 10000 | 6700 | 1,50 |
| 2214 E-2RS1TN9 | 70 | 125 | 31 | 35,8 | 14,6 | 0,75 | - | 3400 | 1,45 |
| 1314 | 70 | 150 | 35 | 74,1 | 27,5 | 1,34 | 8500 | 6000 | 3,00 |
| 2314 | 70 | 150 | 51 | 111 | 37,5 | 1,86 | 8000 | 6000 | 3,90 |
| 2314 M | 70 | 150 | 51 | 111 | 37,5 | 1,86 | 8000 | 6000 | 4,25 |
| 1215 | 75 | 130 | 25 | 39 | 15,6 | 0,8 | 10000 | 6700 | 1,35 |
| 1215 K | 75 | 130 | 25 | 39 | 15,6 | 0,8 | 10000 | 6700 | 1,30 |
| 2215 EKTN9 | 75 | 130 | 31 | 58,5 | 22 | 1,12 | 9000 | 6300 | 1,50 |
| 2215 ETN9 | 75 | 130 | 31 | 58,5 | 22 | 1,12 | 9000 | 6300 | 1,60 |
| 1315 | 75 | 160 | 37 | 79,3 | 30 | 1,43 | 8000 | 5600 | 3,55 |
| 1315 K | 75 | 160 | 37 | 79,3 | 30 | 1,43 | 8000 | 5600 | 3,40 |
| 1315 M | 75 | 160 | 37 | 79,3 | 30 | 1,43 | 8000 | 5600 | 3,95 |
| 2315 | 75 | 160 | 55 | 124 | 43 | 2,04 | 7500 | 5600 | 4,70 |
| 2315 K | 75 | 160 | 55 | 124 | 43 | 2,04 | 7500 | 5600 | 4,45 |
| 2315 KM | 75 | 160 | 55 | 124 | 43 | 2,04 | 7500 | 5600 | 5,05 |
| 2315 M | 75 | 160 | 55 | 124 | 43 | 2,04 | 7500 | 5600 | 5,30 |
| 1216 | 80 | 140 | 26 | 39,7 | 17 | 0,83 | 9500 | 6000 | 1,65 |
| 1216 K | 80 | 140 | 26 | 39,7 | 17 | 0,83 | 9500 | 6000 | 1,60 |
| 2216 EKTN9 | 80 | 140 | 33 | 65 | 25,5 | 1,25 | 8500 | 6000 | 1,90 |
| 2216 ETN9 | 80 | 140 | 33 | 65 | 25,5 | 1,25 | 8500 | 6000 | 2,00 |
| 1316 | 80 | 170 | 39 | 88,4 | 33,5 | 1,5 | 7500 | 5300 | 4,20 |
| 1316 K | 80 | 170 | 39 | 88,4 | 33,5 | 1,5 | 7500 | 5300 | 4,05 |
| 2316 | 80 | 170 | 58 | 135 | 49 | 2,24 | 7000 | 5300 | 6,10 |
| 2316 K | 80 | 170 | 58 | 135 | 49 | 2,24 | 7000 | 5300 | 5,90 |
| 2316 KM | 80 | 170 | 58 | 135 | 49 | 2,24 | 7000 | 5300 | 6,05 |
| 2316 M | 80 | 170 | 58 | 135 | 49 | 2,24 | 7000 | 5300 | 6,25 |
| 1217 | 85 | 150 | 28 | 48,8 | 20,8 | 0,98 | 9000 | 5600 | 2,05 |
| 1217 K | 85 | 150 | 28 | 48,8 | 20,8 | 0,98 | 9000 | 5600 | 2,00 |
| 2217 | 85 | 150 | 36 | 58,5 | 23,6 | 1,12 | 8000 | 5600 | 2,50 |
| 2217 K | 85 | 150 | 36 | 58,5 | 23,6 | 1,12 | 8000 | 5600 | 2,40 |
| 1317 | 85 | 180 | 41 | 97,5 | 38 | 1,7 | 7000 | 4800 | 5,00 |
| 1317 K | 85 | 180 | 41 | 97,5 | 38 | 1,7 | 7000 | 4800 | 4,90 |
| 2317 KM | 85 | 180 | 60 | 140 | 51 | 2,28 | 6700 | 4800 | 6,80 |
| 2317 M | 85 | 180 | 60 | 140 | 51 | 2,28 | 6700 | 4800 | 7,05 |
| 1218 | 90 | 160 | 30 | 57,2 | 23,6 | 1,08 | 8500 | 5300 | 2,50 |
| 1218 K | 90 | 160 | 30 | 57,2 | 23,6 | 1,08 | 8500 | 5300 | 2,40 |
| 2218 | 90 | 160 | 40 | 70,2 | 28,5 | 1,32 | 7500 | 5300 | 3,40 |
| 2218 K | 90 | 160 | 40 | 70,2 | 28,5 | 1,32 | 7500 | 5300 | 3,20 |
| 1318 | 90 | 190 | 43 | 117 | 44 | 1,93 | 6700 | 4500 | 5,80 |
| 1318 K | 90 | 190 | 43 | 117 | 44 | 1,93 | 6700 | 4500 | 5,60 |
