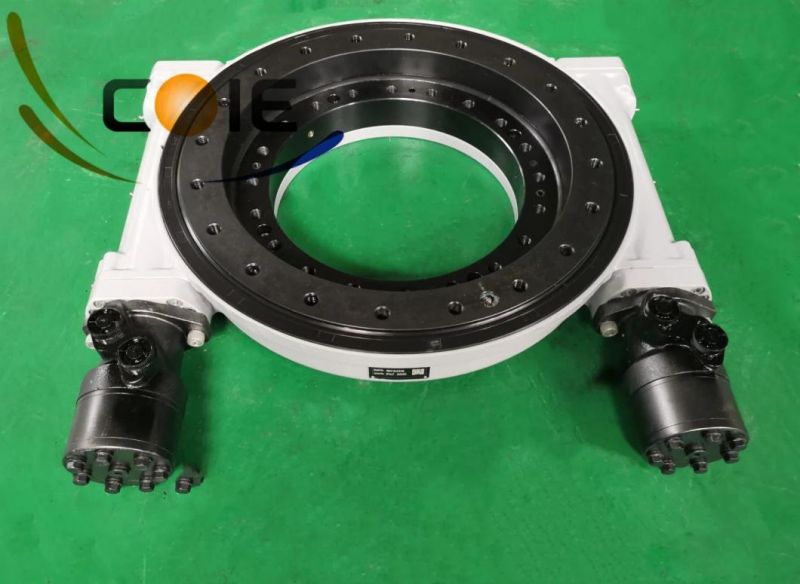

Dual Worm Slewing Drive
Coresun Drive Equipment Changzhou Co., Ltd.Base Info
Description
Model
WH17-2
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Material
42CrMo,50Mn
Output Torque
21KN.m
Tilting Moment Torque
135.6KN.m
Holding Torque
72.3K N.m
Static Axial Rating
970KN
Static Radial Rating
390KN
Dynamic Axial Rating
235KN
Dynamic Radial Rating
205KN
Gear Ratio
102:1
Efficiency
40%
Our Advantage:
1. Double skeleton oil seal structure, sealing performance reaches IP65, which can meet long-term outdoor use.
2. The surface of the slewing bearing adopts high-quality galvanized or QPQ treatment process, which has good corrosion resistance
3. Worm gear meshing, high precision, large tooth contact area, high transmission torque, suitable for low speed and high torque applications
4. Customized solutions to meet different application conditions.

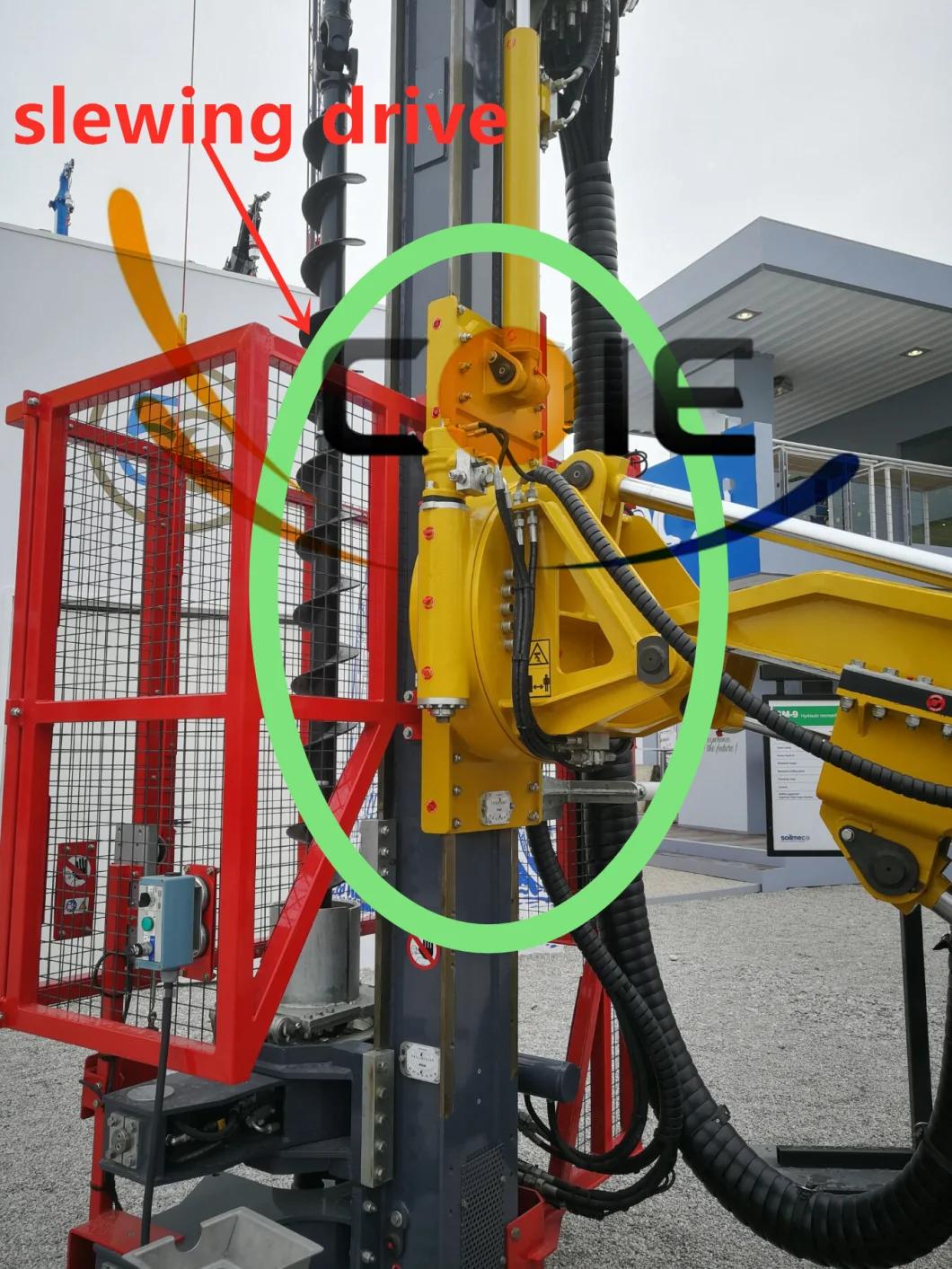

Production Photo and Application
Coresun Drive makes the holding torque testing to ensure the quality and safety factor on our slewing drive and bearing.Quality is our foundation for the long-term development.

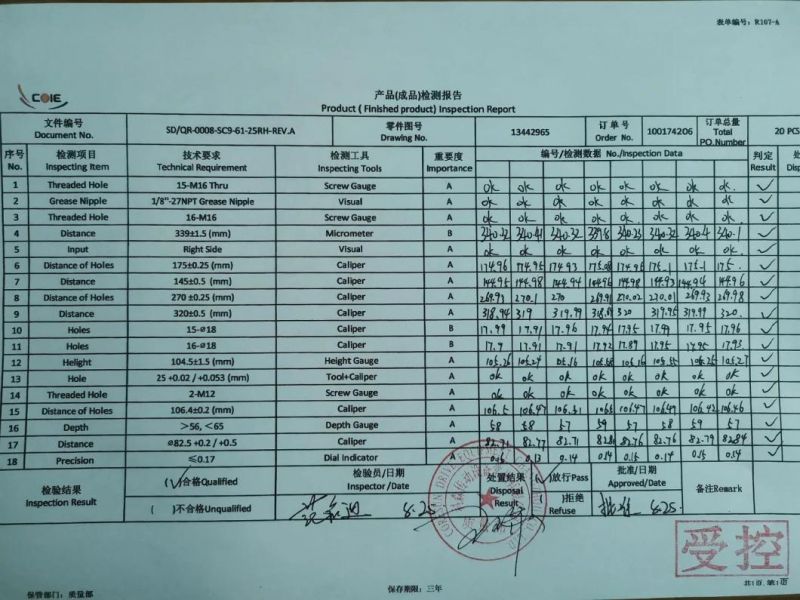

For Coresun Drive slewing drive,we make 100% finished product inspection on worm gear slewing bearing.
