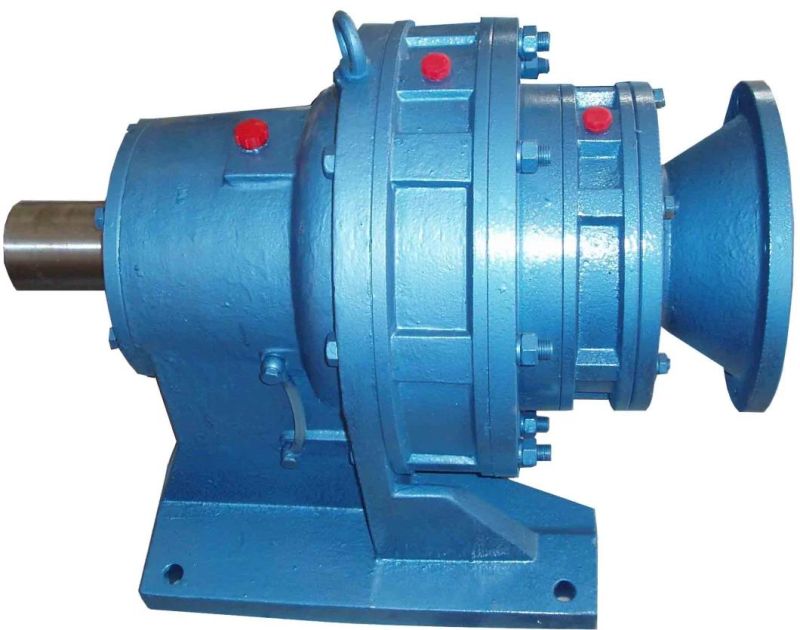

Xb Series Cycloidal Pin Wheel Gear Reducer Transmission Unit
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Machinery, Agricultural Machinery, Industry
- Function：Speed Changing, Speed Reduction
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Single-Step
Base Info
- Model NO.：XW
- Type：Circular Gear
- Material：Cast Iron
- Manipulate Way：Semi-Automatic Manipulation
- Manufacturing Method：Rolling Gear
- Toothed Portion Shape：Spur Gear
- Changes Way：Stepped
- Warranty：One Year
- Transport Package：Plywood Case
- Specification：XB,WB
- Trademark：SGR
- Origin：China
- HS Code：8483409000
- Production Capacity：5000PCS,Month
Description
Basic Info.
Model NO. XW Type Circular Gear Material Cast Iron Manipulate Way Semi-Automatic Manipulation Manufacturing Method Rolling Gear Toothed Portion Shape Spur Gear Changes Way Stepped Warranty One Year Transport Package Plywood Case Specification XB/WB Trademark SGR Origin China HS Code 8483409000 Production Capacity 5000PCS/MonthProduct Description
Xb Series Cycloidal Pin Wheel Gear Reducer Transmission UnitTechnical data:
1. Frame: Single stage 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
Double stage 31, 42, 53, 63, 74, 85, 95, 106, 116, 117
2. Ratio range: Single stage 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
Double stage121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
3. Input power: 0.12-55 KW
4. Permit torque rang: 70-20000 N. M
5. Structure: Foot-mounted& flange-mounted
Characteristic:
Several teeth drive, high strength and high credibility
The material of main parts is bearing steel
Little inertia adapts reducer for forward and reverse operation
Low noise high efficiency, single stage efficiency are more than 92%
Input and output shaft in the same axis, small volume
