Phosphating and Epoxy Painting Crossed Roller Slewing Bearing Ring Bearing Rh221007-1455
Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.Base Info
Description
Overall DimensionD di H XU 120179 234 124.5 35 XU 160220 302 138 46 XU120222 300 140 36 XU 160260 326 191 46 XU 180380 485 275 55 XU 180412 501 324 55 XU 180405 747 336 46 XU 180433 522 344 55 XSU 140414 484 344 56 XU 220460 568 356 64 XU 300515 646 384 86 XU 180475 562 388 55 XU 240545 655 435 79 XU 220574 680 468 68 XU 300586 704 468 86 XSU 140544 614 474 56 XU 280680 795 565 79 XSU 140644 714 574 56 XU 300785 900 670 86 XSU 140744 814 674 56 XU 260823 933 713 79 XSU 140844 914 774 56 XU 160897 976 818 50 XSU 20 0955 1055 855 63 XU 260980 1090 870 79 XSU 140944 1014 874 56 XSU 20 1055 1155 955 63 XU 301117 1238 995 101 XSU 141094 1164 1024 56 XSU 20 1155 1255 1055 63 XU 161125 1194 1056 56 XU 301213 1330 1095 92 XU 401250 1398 1102 128 XU 161233 1342 1146 56 XU 161220 1290 1150 56 XSU 20 1255 1355 1155 63 XU 401390 1554 1226 128 XU 261350 1462 1238 85 XSU 20 1355 1455 1255 63 XU 341472 1600 1340 110 XSU 20 1455 1555 1355 63 XU 301578 1725 1431 101 XU 201820 1926 1714 65 XU 181932 2032 1832 65 XU 302000 2116 1884 100 XU 202300 2400 2200 73 XU 222900 3005 2795 82 XU 603154 3403 2905 172
Why choose LYHY slewing bearings
A pioneer in slewing bearing field, rich experience, can do design, produce, mounting guide
Small order accepted
SO certified company
Variorum models
7*24hours hotline to help you with your cranes
Strict quality control system to ensure quality for slewing bearing

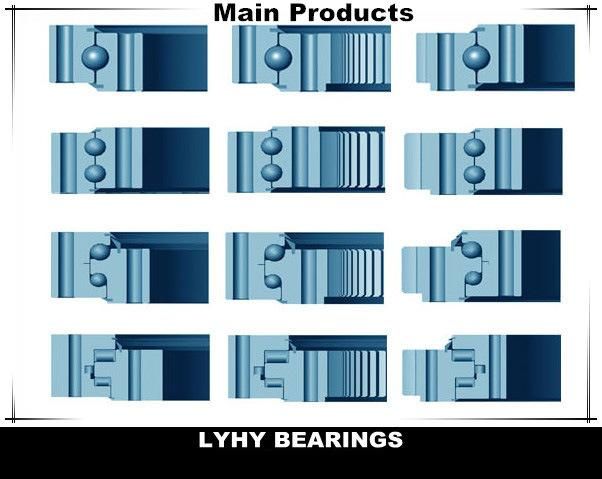

Detailed description of these types slewing bearings
Single row four point contact ball slewing bearings
This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Single row cross roller slewing bearings
This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.
Double row different ball diameter slewing bearings
This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Triple row cylindrical roller slewing bearings
This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.
Roller/ball combination slewing bearings
This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.
About LYHY bearings

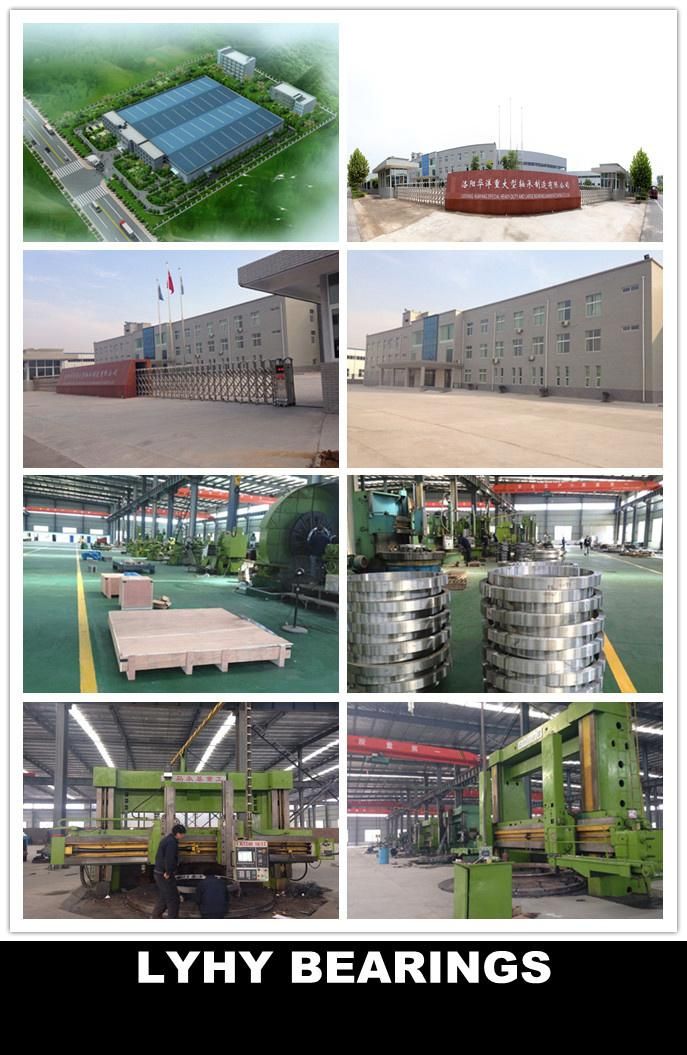

1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia

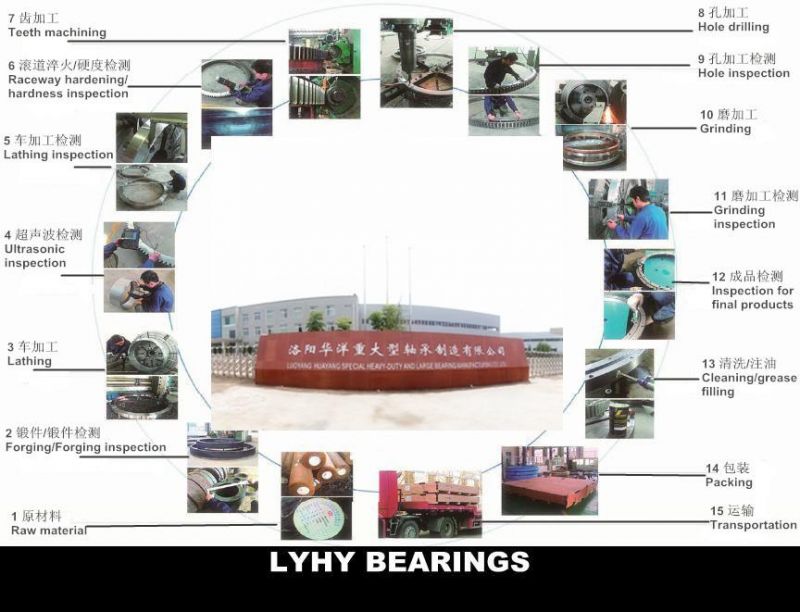

Production Process of LYHY slewing bearings

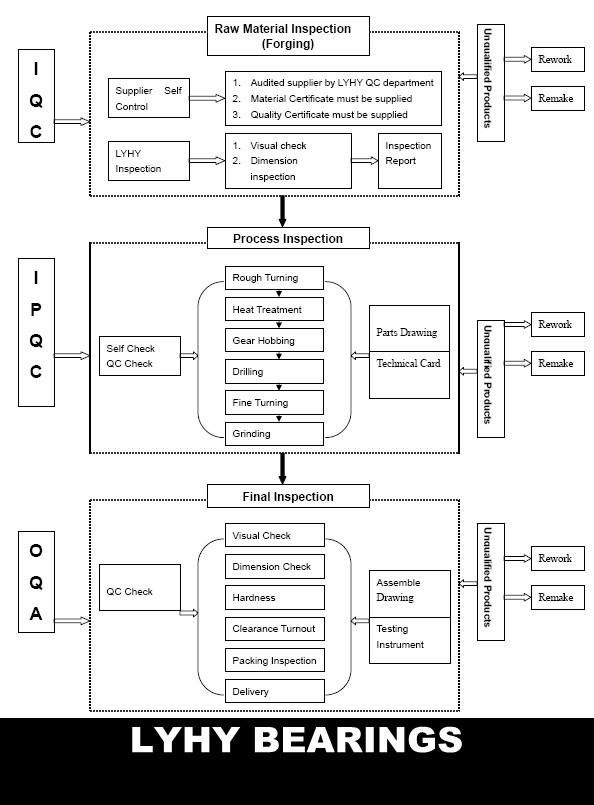

Quality Control Process of LYHY slewing bearings

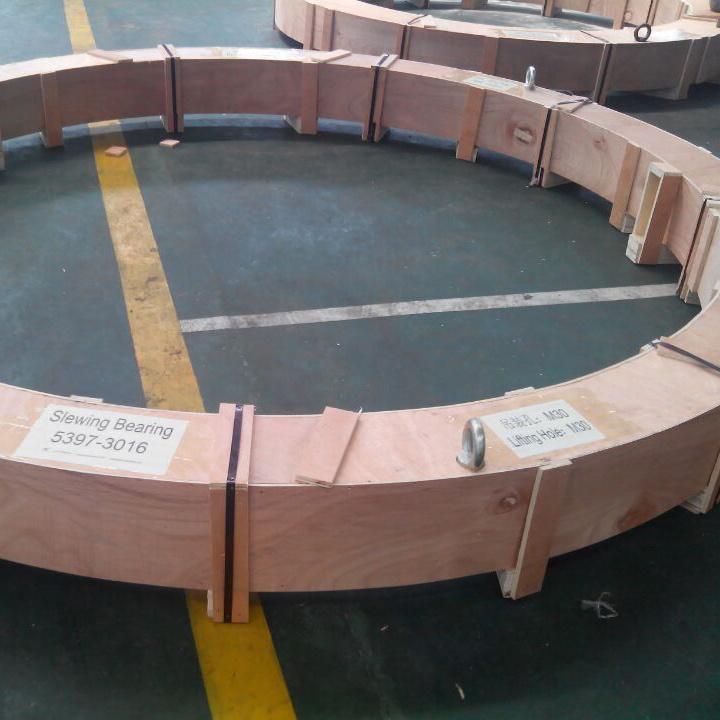

LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers demand to be packed;
FAQ:
Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings
Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV
Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.
Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.
Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.
Q: Is sample available?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
