Made in China Rexnord Standard High Quality Low Price Omega Coupling E10

Yuchen power transmission limited
  • Standard Or Nonstandard：Standard
  • Shaft Hole：10-32
  • Torque：50-70N.M
  • Bore Diameter：14mm
  • Speed：6000r,M
  • Structure：Flexible

Base Info

  • Model NO.：E10
  • Material：Plastic
  • Type：Elastic Coupling
  • Transport Package：Non-Fumigation Wooden Box, by Air, by Ocean
  • Specification：EC4
  • Trademark：YC
  • Origin：China
  • HS Code：848390000
  • Production Capacity：2000,Month

Description

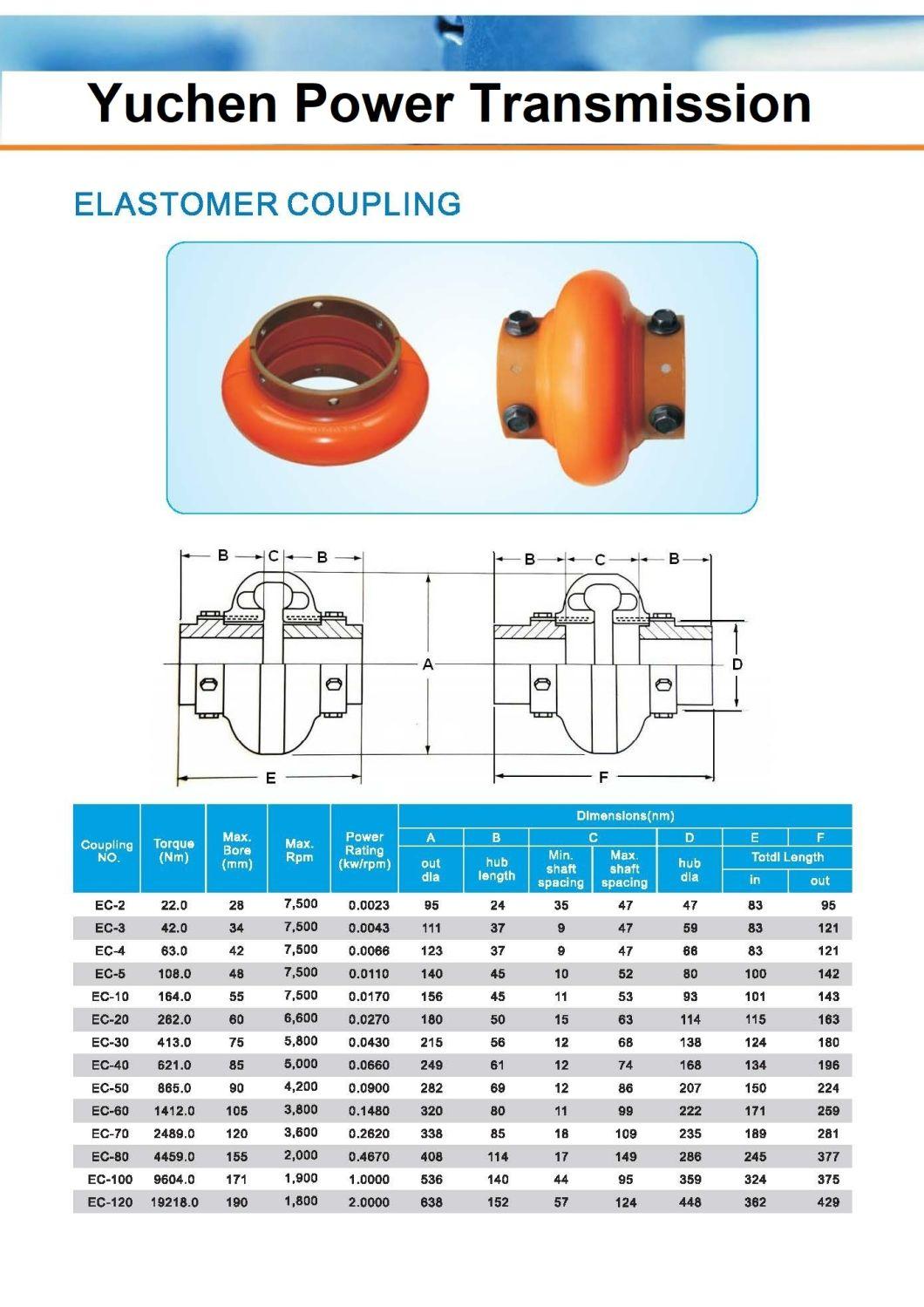

Omega
Coupling No.HP per /
100 rpmMaxBasic Torque Bore Dia Dimensions
(mm) speed(kgf.cm)(mm) MaxABCDEF(rpm)  Outer dia.Hub LengthSpacingHub Dia.Min Hub Dia.Total Length       (In)(Out)  (In)(Out)E20.37,500218288924364647388494E30.597,5004213410238846595084122E40.897,5006394211638846665784122E51.517,5001,0804813744959807097147E102.337,5001,6705516244959938497147E203.736,6002,67060184501365114102113165E305.885,8004,2107521058969138118125185E408.855,0006,3408524163975168146135201E50124,0008,82090279701191207152151231E60203,80014,40010531882997222165173261E70363,60025,5001203568519109235175189279E80622,00045,50015540611417149286240245377E1001371,90098,1001715331404495359267324375E1202741,800196,00019063515256106448305360411
Made in China Rexnord Standard High Quality Low Price Omega Coupling E10

Made in China Rexnord Standard High Quality Low Price Omega Coupling E10

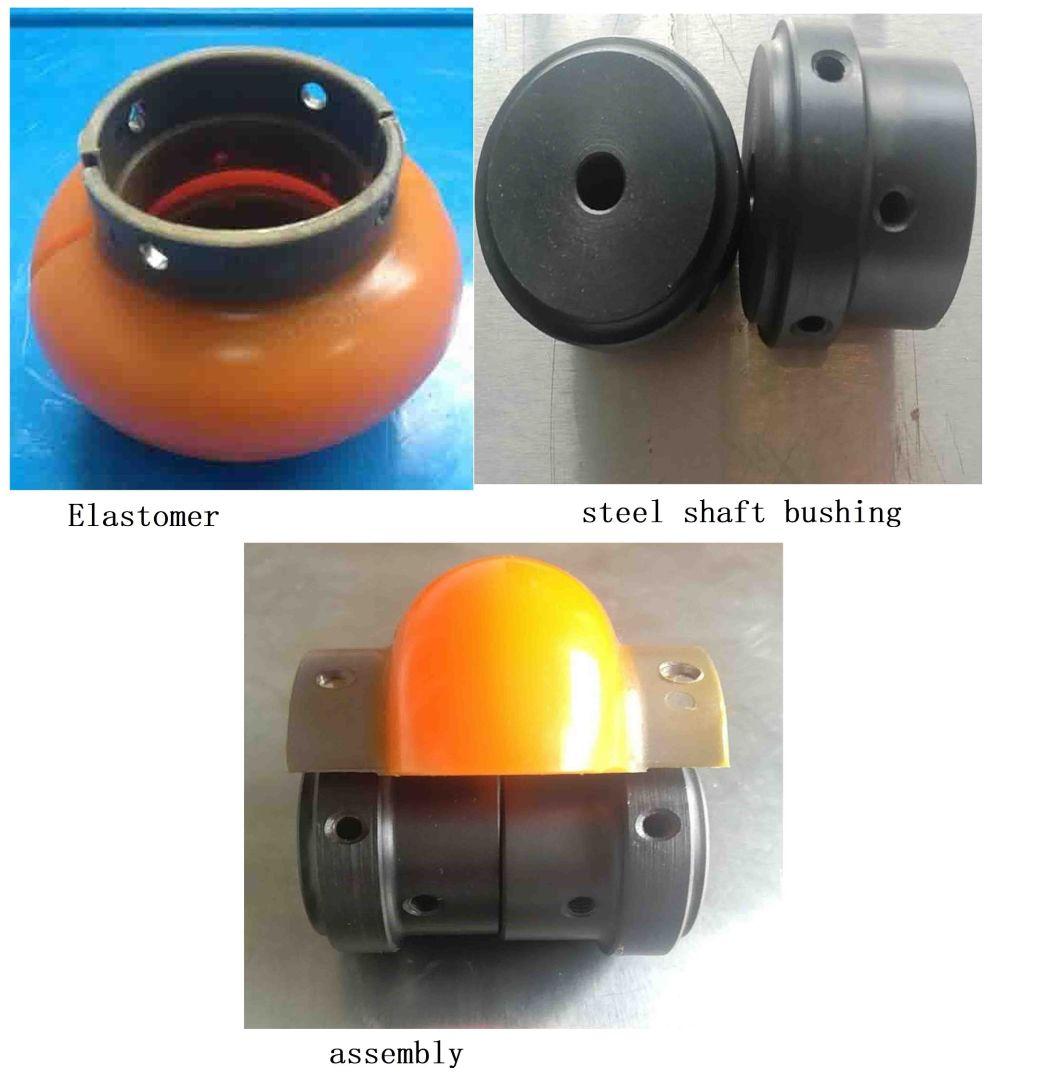

Coupling and steel hub assembly
 Made in China Rexnord Standard High Quality Low Price Omega Coupling E10




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 30%TT in advance. 70% T/T before shippment
