Basic Info.

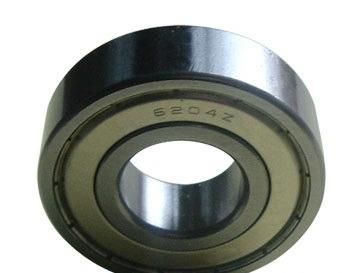

Model NO. 6204zz Structure Deep Groove Model Size 6204zz Bore Size 20mm Outside Diameter 47mm Precision Rating ABEC-1 Steel Ball Grade G10 Number of Row Single Row Transport Package Individual Box Specification ABEC-1 Trademark FKD, HHB, FE or OEM Brand Origin Hebei Linxi Production Capacity 900, 000PCS Per Mouth

Product Description

Structure: Deep Groove

Type: Ball

Bore Size: 1 - 300 mm, from 1mm to 300mm

Outside Diameter: 3 - 500 mm, from 3mm to 500mm

Model Number: All of the ball bearings

Precision Rating: ABEC-1, ABEC-3, ABEC-5, ABEC-7

Seals Type: Open, Rubber Seals, 2 Metal Shield

Number of Row: Single Row

Vibration level codes: V4, V3, V2,

V1Internal clearance codes: C0, C2, C3, C4, C5

Material: AISI52100, AISI440C, AISI304, AISI316, Ceramic

Retainer: PTFE, Nylon, PEEK Or Stainless Steel

Lubrication: Oil or grease

Packaging & Delivery

Packaging Detail: Tube & Box

Delivery Detail: 3-15days

We are specialized in bearing export, production, selling and after-service. Our principle is service and quality First!


Deep groove ball bearings are the most representative and widely used bearing. It can accommodate axial loads in both directions, in addition to radial loads, even at high speeds. Theay are available for low noise and low vibration. Bearings with mental shields and rubber seals are pre-lubrecated by some grease. Bearing with snap ring and flange on the outer ring. Deep groove ball bearings with filling slots have the same dimensions with standard ones. Filling slot bearings have a higher radial load carrying capacity than bearings without filling slots.

Applications

1. Suitable for very high rotating speeds

2. Well suited for medium high radial and axial loads in one or both directions

3. Various seals and grease variants available for different operating conditions

4. Numerous clearance and tolerance classes available for different operating conditions

5. Series: 600, 6000, 6200, 6300, 6400, 16000; Thin-ring: 61800, 61900

6. Application examples: Electrical motors, general machinery, industrial gearboxes, pumps, agricultural machinery, etc.

Series	Bore Diameter(mm)	Variant Structure
6000	10~260	Z,2Z,RZ,2RZ,RS1,2RS1,N,RN,ZN,RZN
6000	240~1000	Z,2Z,RZ,2RZ,RS1,2RS1,N,RN,ZN,RZN
6200	10~220	Z,2Z,RZ,2RZ,RS1,2RS1,N,RN,ZN,RZN
6200	240~1400	Z,2Z,RZ,2RZ,RS1,2RS1,N,RN,ZN,RZN
6300	10~190	Z,2Z,RZ,2RZ,RS1,2RS1,N,RN,ZN,RZN
6300	200~1200	Z,2Z,RZ,2RZ,RS,2RS,N,RN,ZN,RZN
6400	10~100	N,NR
6400	110~1200	N,NR
16000	10~260
16000	280~1000	Z,2Z,RZ,2RZ,RS1,2RS1,N,RN,ZN,RZN
61800	10~320	Z,2Z,RZ,2RZ
61800	340~1200	Z,2Z,RZ
61900	10~280	Z,2Z,RZ,N,NR,ZN,
61900	300~1000	Z,2Z,RZ
Mini bearings	1~10	Z,2Z,RS,2RS,F60000

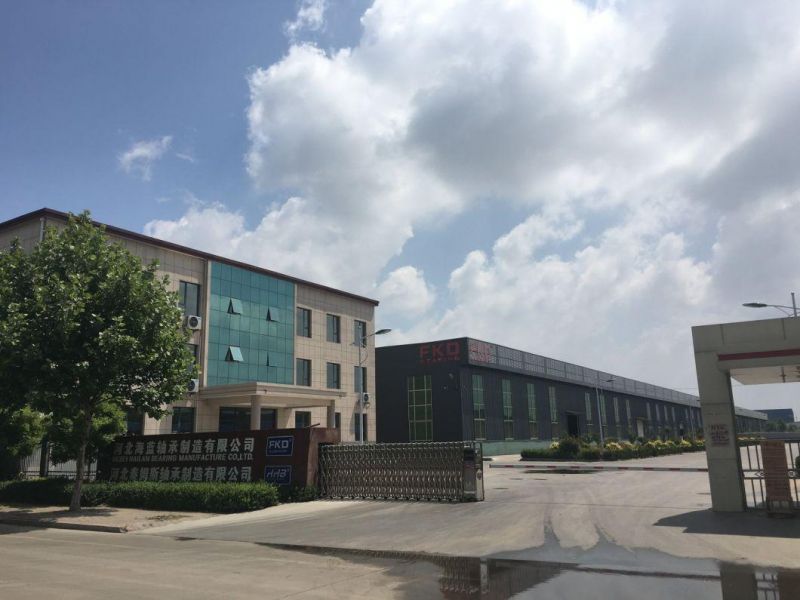

FKD FACTORY:

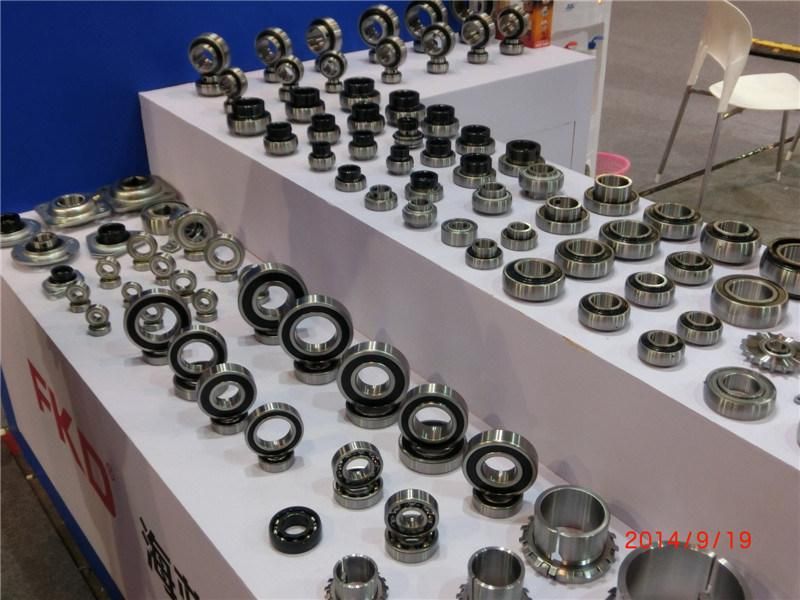

BOOTH OF FKD BEARINGS:
