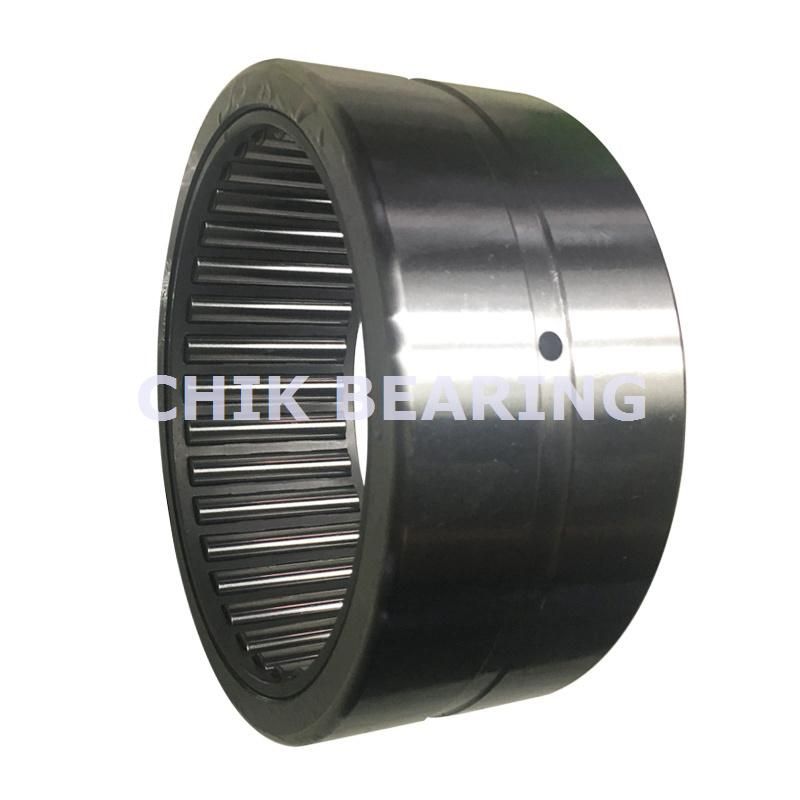

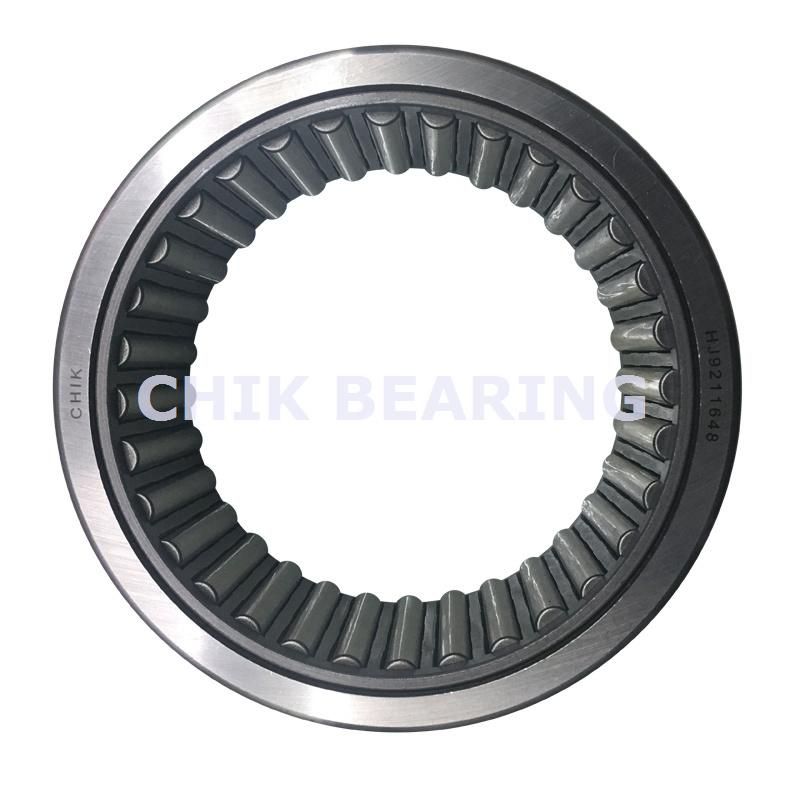

Machine Parts of China Good Quality Needle Roller Bearing (Na6900A)
Shandong Chik Bearing Co., Ltd.Base Info
Description
CHIK&OEM BearingsName Needle Roller Bearing Model Drawn cup needle roller bearings, Inner Rings, Needle Thrust Bearings Needle Roller Bearings (machined), Needle Roller and Cage Assemblies Roller Clutches, Aligning Needle Roller Bearings, Material Aisi52100 Certificate ISO9001:2001 CE BV Precision P0 Bore Size: 3mm-200mm Outside diameter 6mm-300mm Clearance C0,C1,C2,C3,C4,C5 etc. Cage Type Brass cage or Stainless cage Seals Type ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc Features High load-carrying capacity Suitable for high speeds Particularly easy to install Application Gear pumps Sheaves Automotive transmissions Two-cycle engines Package pallet, wooden case,industrial package or as customers' requirement Price FOB, CFR, CIF Delivery Time 5-10 days
Shaft
DiameterBearing Designation Mass
Approx Boundary Dimension Basic Loading Limiting
Speed Current
code Original
code d Fw D B Dynamic Static Oil mm g mm N rpm 50 NKI50/25 TAFI506825 262 50 55 68 25 32000 78000 7500 NA4910 4544910 264 50 58 72 22 41000 72000 7500 NA5910 50 58 72 30 NA6910 6534910 457 50 58 72 40 68000 135000 7500 NKIS50 510 50 60 80 28 60000 95000 7500 NKI50/35 TAFI506835 50 55 68 35 53000 118000 7500 55 NKI55/35 357 55 60 72 35 48000 126800 7500 NA4911 4544911 386 55 63 80 25 50600 96580 7500 NA5911 55 63 80 34 NA6911 6534911 790 55 63 80 45 82560 172000 7500 60 NKI60/25 388 60 68 82 25 35500 85000 7000 NA4912 4544912 412 60 68 85 25 52800 110500 6500 NA5912 614 60 68 85 34 NA6912 6534612 796 60 68 85 45 88500 186000 6500 NKIS60 550 60 70 90 28 65000 110000 6500 65 NA4913 4544913 435 65 72 90 25 57500 110500 6500 NA6913 6534913 821 65 72 90 45 87600 194500 6500 NKI65/25 65 73 90 25 53000 100000 6500 NKI65/35 65 73 90 35 75000 156000 6500 70 NA4914 4544914 712 70 80 100 30 79000 154000 5500 NA6914 6534914 1326 70 80 100 54 121000 263000 5500 NKI70/35 70 80 95 35 78000 184000 5500 75 NA4915 4544915 765 75 85 105 30 82000 158000 5500 NA5915 1130 75 85 105 40 NA6915 1429 75 85 105 54 128000 272000 5500
VI. OUR MAIN PRODUCTS
Our products cover deep groove ball bearing, tapered roller bearing, cylindrical roller bearing, spherical roller bearing, pillow block bearing, angular contact ball bearing, self-aligning ball bearing, thrust ball bearing, thrust roller bearing, needle roller bearing, spherical plain bearing and so on, large, super large and non-standard bearings. In addition to the above, we offer customized high-tech bearings for free design according to drawings and samples from the clients' side.
V. Our team
Teamwork contributes to the prosperity of the companies. With all workmates' knowledge combined, the companies possess high work efficiency and an ability to deal with whatever problems. As a result, the companies can make more profits and develop more quickly.
In sum, teamwork is very important, no one could live individually, they must rely on others in some way. Hence, work together could make life easier.
VI.FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
VII. CONTACT INFO.
SHANDONG CHIK BEARING CO, .LTD.
Chris ( Export Dep. )
Add: No.9 Longao, North Longao Road, Jinan city,Shandong,china 250000
Website: chikbearing.en.made-in-china.com
Tel: 0086-531-82964086
Fax: 0086-531-82964081
Mobile : 0086-15806686790
