Basic Info.

Model NO. LV20/7 ZZ Separated Unseparated Place of Origin Shandong China (Mainlan Sample Availabe OEM Acceptable Brand Name Yd or as Your Requirements Transport Package According to Per Client′s Requirements Trademark Netural Origin China HS Code 8482103000 Production Capacity 50000 Pieces/Month

Product Description

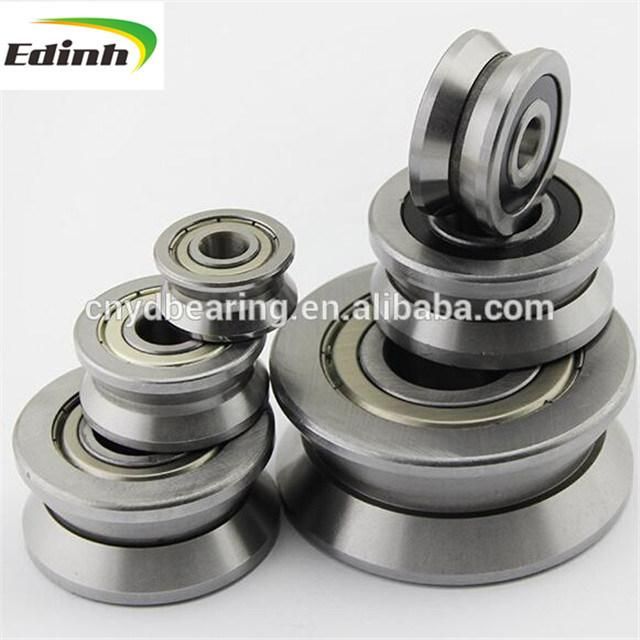

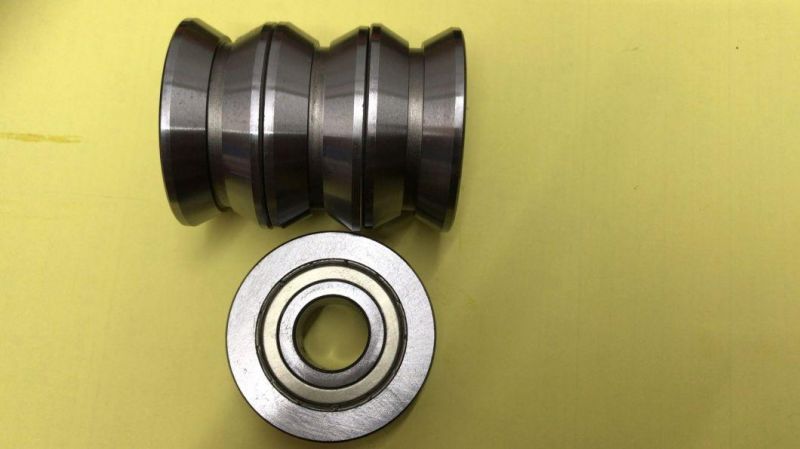

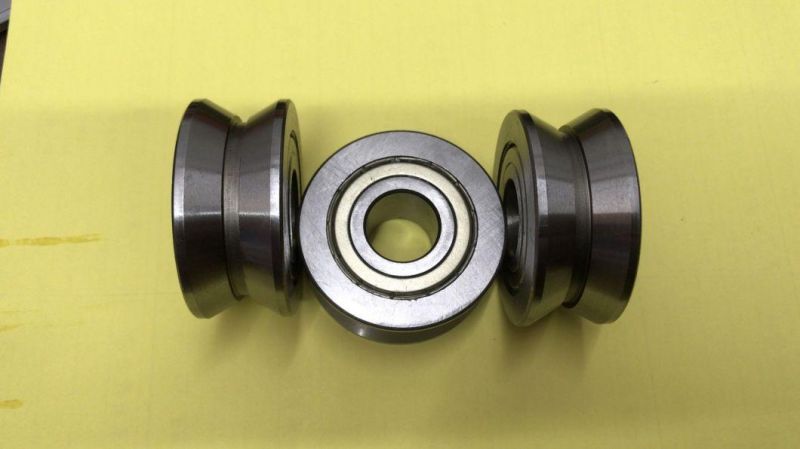

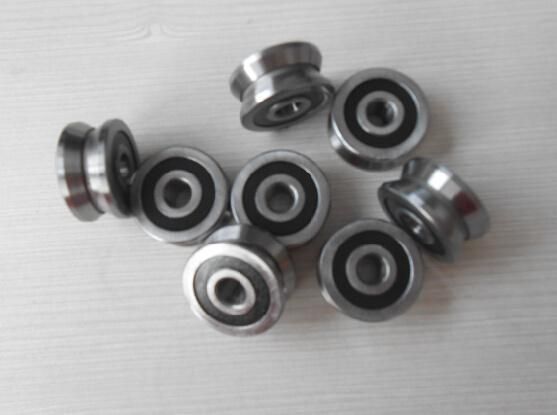

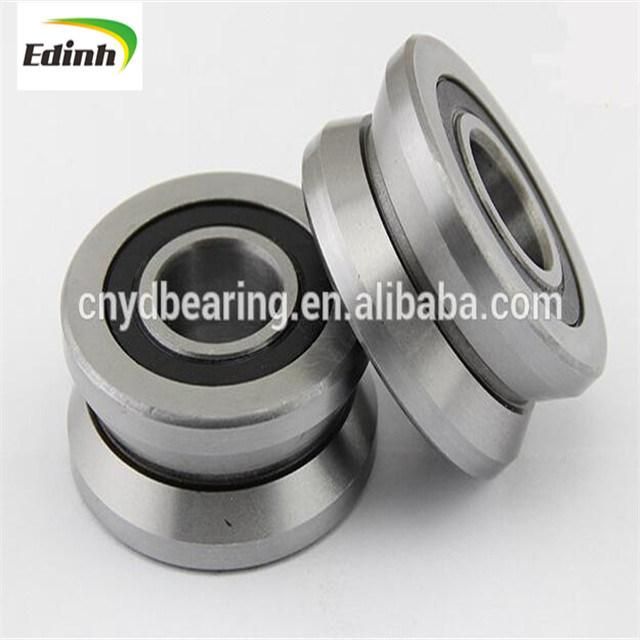

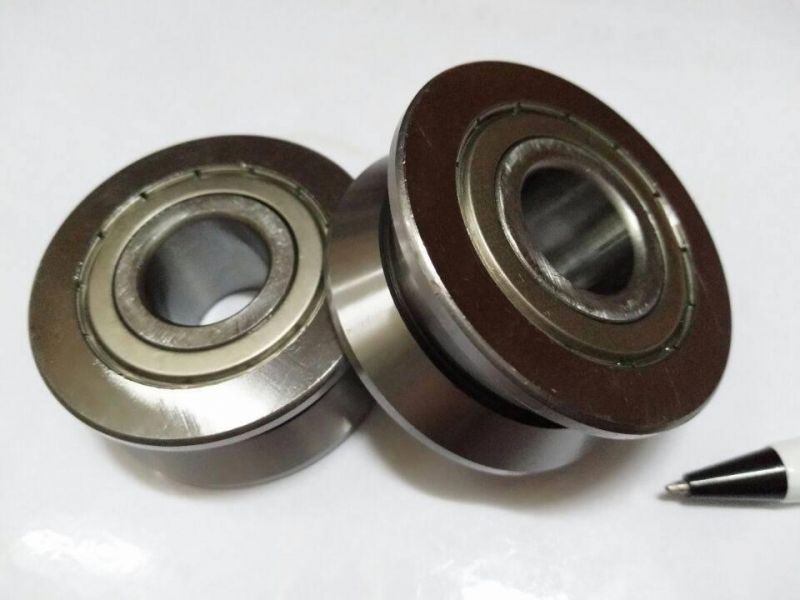

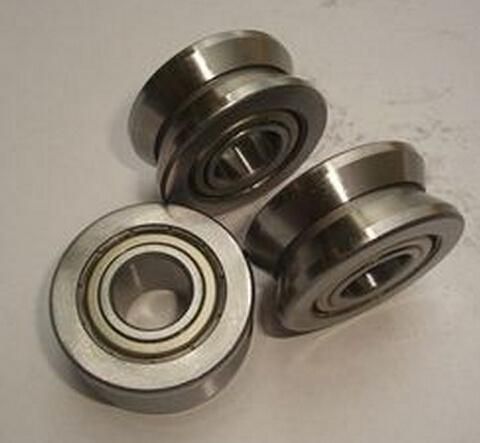

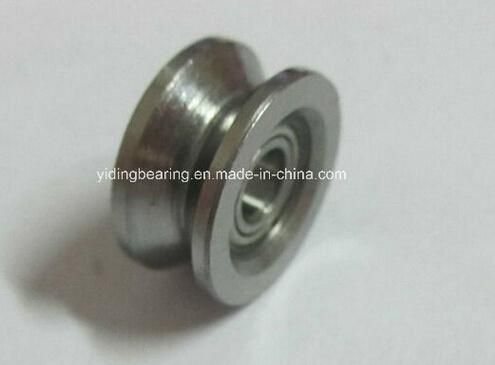

V groove wheel bearing LV 20/7 Zz for sliding guide rail
Structure: Other Structure
Type: Roller
Bore Size: 1 - 120 mm
Outside Diameter: 3 - 150 mm
Model Number: LV 20/7 ZZ
Precision Rating: P6P5P2P0
Seals Type: ZZ, RS
Number of Row: Single Row
QUALITY: HIGH
DELIVERYSPEEDY
PRICE: REASONABLE

Specifications
Sliding shower door roller LV 20/7 ZZ
*Bearing manufacturer
*LV(RV) SG W V U LFR series
*OEM & sample available

Sliding shower door roller bearing features:
1) Sliding shower door roller supply
2) Factory price for guide roller bearing
3) ISO9001: 2008 standard
4) LV(RV) SG W V U LFR series
5) OEM & sample available

V groove track roller bearing concept:
V groove track roller bearing is W type roller orientation system of the main parts in, widely used in industrial robot, cutting equipment, mobile guide rail, production lines, etc.

For the two outer wheel had 90 degrees of V W shaped outside surface. Can be used in the lateral side or with 90 degrees in V type or the V type guide rail, also can use side in fit with cylindrical guide adaptation.

The wheel had double row angular contact ball bearing internal structure design and thickness of the outer lane, make the bearing capacity of the roller higher.

Packaging & Delivery
Packaging Detail: Sliding shower door roller bearing packing: 1. Industrial packaging: Plastic bag + kraft paper + carton + plywood pallets; Plastic tube + carton + plywood pallets; 2. Commercial packing: 1PC/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement
Delivery Detail: 3-5 days normally ( according to your quantity )


Any need,please kindly contact us
Ivy wang





Wheels No .	Φdw mm	Bore  mm	O.D.  mm	Width  mm	Width  mm	A	Angle	Weight
	Φdw	D	D	B	C	A	α	G
LV 20/7 ZZ	10	7	22	11	11	14.5	120	17
LV 20/8 ZZ	10	8	30	14	14	18.1	120	49
LV20/10ZZ	10	10	30	14	14	18.1	120	48
LV 202-38 ZZ	10	15	38	17	17	22.25	120	87
LV 202-40 ZZ	10	15	40	18	18	22	120	110
LV 201 ZZ	20	12	41	20	20	28	120	130
LV 201-14.2RS	14	12	39.9	20.1	18	24	100	107
LV 202-41 ZZ	20	15	41	20	20	28	120	116
LV 203 ZZ	20	17	58	25	25	35	120	325
LV 204-57 ZZ	20	20	57	22	22	34.5	120	290
LV 204-58 ZZ	30	20	58	25	25	41	120	310
