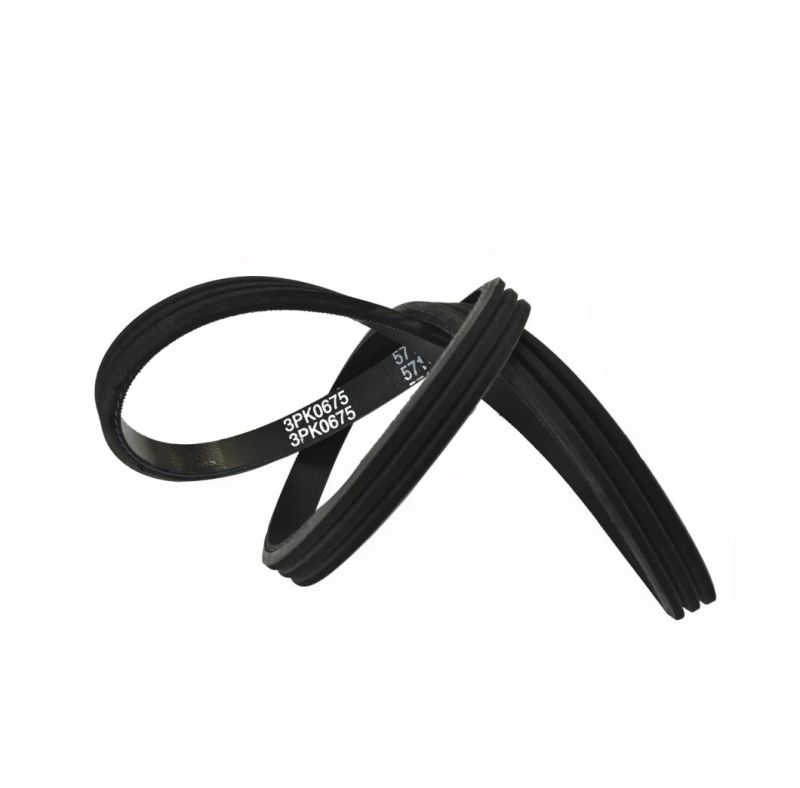

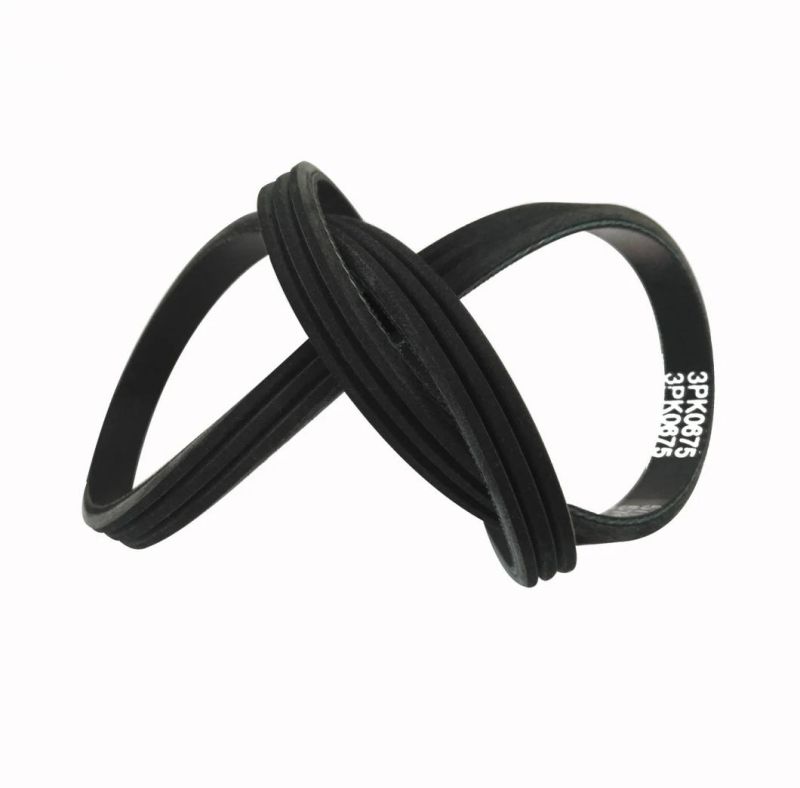

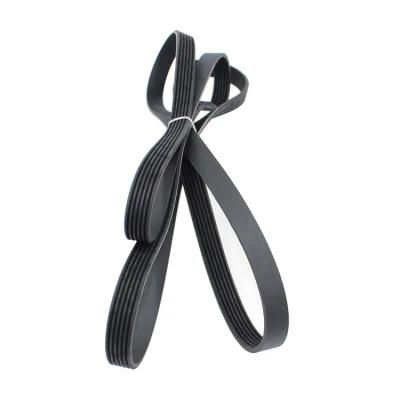

EPDM Cr V-Belt Pk Belt

Hebei Jilixi International Trading Co., Ltd.
  • Standard or Nonstandard：Standard
  • Application：Conveyer Equipment, Electric Cars, Car
  • Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
  • Tensile Strength：Strong
  • Material：EPDM
  • Type：Multi-Groove Belt

Base Info

  • Model NO.：pk belt
  • Color：Black
  • Thread：PU
  • Box：Customized
  • Other Material：Cr,Nr
  • Process：Mould
  • Quality：30000-100000km
  • Transport Package：Carton, Sacks
  • Specification：6PK1575
  • Trademark：customized
  • Origin：Hebei Province, China
  • HS Code：401012
  • Production Capacity：100000PCS,Day

Description

EPDM Cr V-Belt Pk Belt

Property

-- Excellent flexibility
-- High power transmission efficiency
-- Reduced noise
-- a power transmission belt featuring multiple longitudinal ribs.
-- It transmits the torque by contact of the belt rib flanks and the pulley grooves.
-- It has been designed with a larger contact surface area than V belts or flat belts.

Property

-- Smooth running
-- More power in less space
-- Friction and wedge advantages for v ribbed sectionEPDM Cr V-Belt Pk Belt EPDM Cr V-Belt Pk Belt

Property

-- Smooth running
-- More power in less space
-- Friction and wedge advantages for v ribbed sectionNeoprene (CR) and EPDM rubber (EPDM)
With characters of V belt and flat belts, V-Ribbed belt has soft and tough property as flat belt and tight and effective property as V belt.

Transmission power so high that at the same condition its 30% higher than common V belts.

With tight transmission system, at the same transmission power, its occupied space is 25% smaller than common V belt.

Flat and soft belt is suitable not only for transmission of small pulley but also for high-speed transmission with speed of 40m/s, Besides its characteristics as slight vibration, few heat diverge and steady working.
Anti-heat, anti-oil, anti-wearing out few elongation and long life.

V-Ribbed Belt use of raw materials
Chloroprene rubberV-Ribbed Belt has certain cold and heat resistance, not only can be good resistance flexor flexible, anti-aging and the aging of ozone-resistant than ordinary unsaturated rubber good, but its a good oil resistance, solvent resistance and chemical stability, by adding short fiber reinforcement can withstand higher lateral pressure, wedge pressure with increasing performance, reducing stress after deformation.

EPDMV-Ribbed Belt in anti-aging particularly anti-aging and ozone resistance climate, more sexual heat aging fine, but its electric insulation properties, corrosion-resistant chemical, elastic shock better (at low temperature flexibility to maintain good performance).

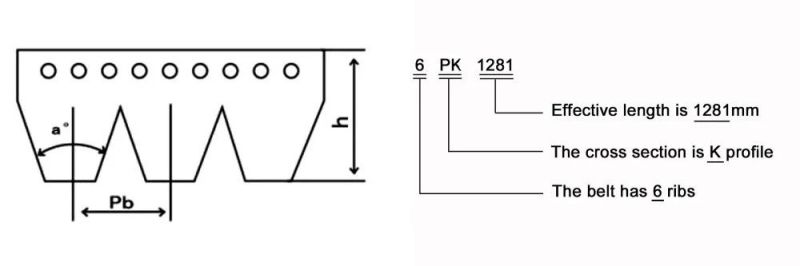

SpecificationAutomotive Engine Poly Pk Fan Multi V Ribbed BeltProfilePbha°H1.6340J2.34440K3.56640L4.71040M9.41740EPDM Cr V-Belt Pk Belt

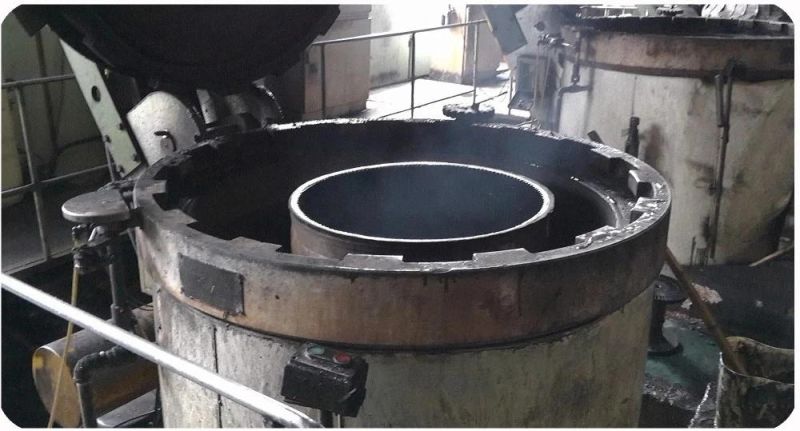

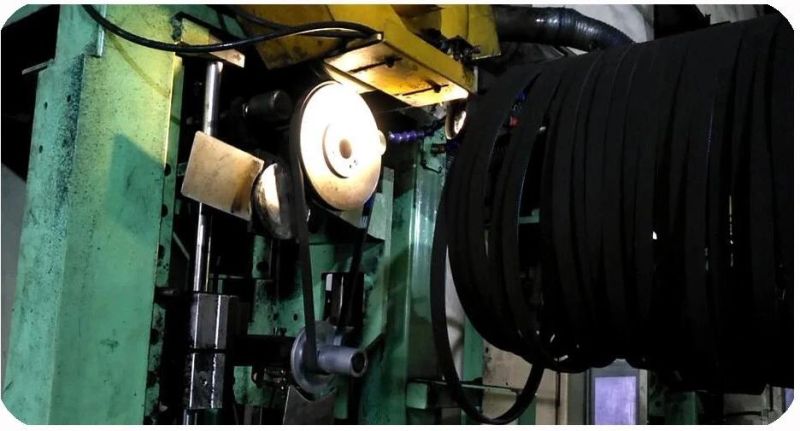

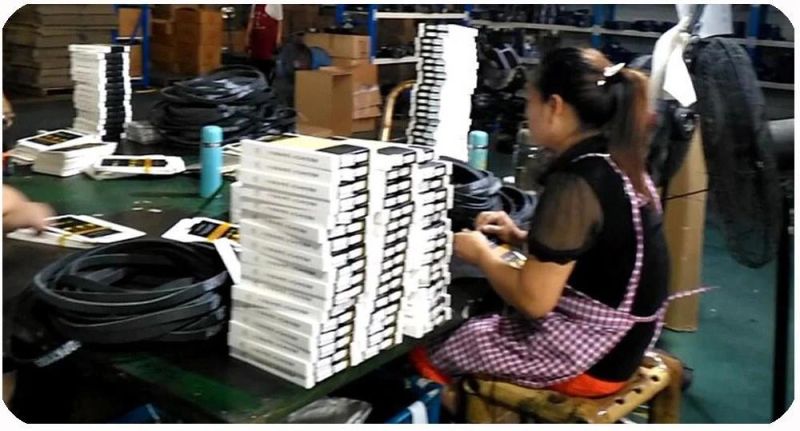

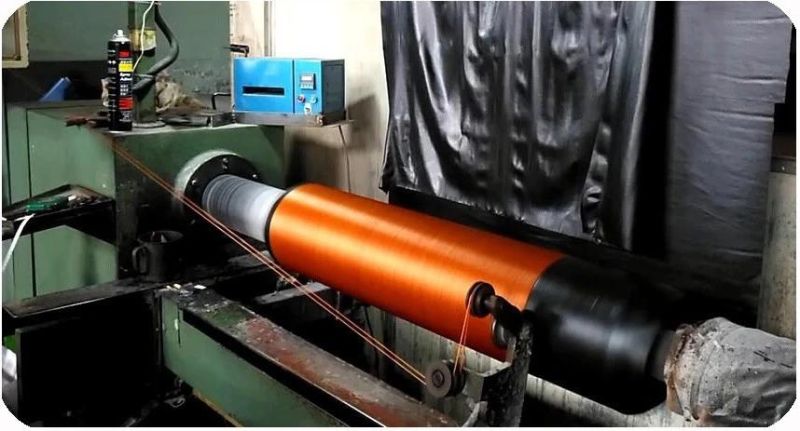

Production & PackageAutomotive Engine Poly Pk Fan Multi V Ribbed BeltAutomotive Engine Poly Pk Fan Multi V Ribbed BeltForming and coiling process Vulcanizing processAutomotive Engine Poly Pk Fan Multi V Ribbed BeltAutomotive Engine Poly Pk Fan Multi V Ribbed BeltGrinding process Cardbox package

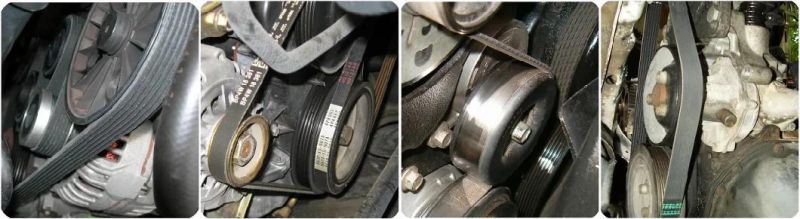

Applications

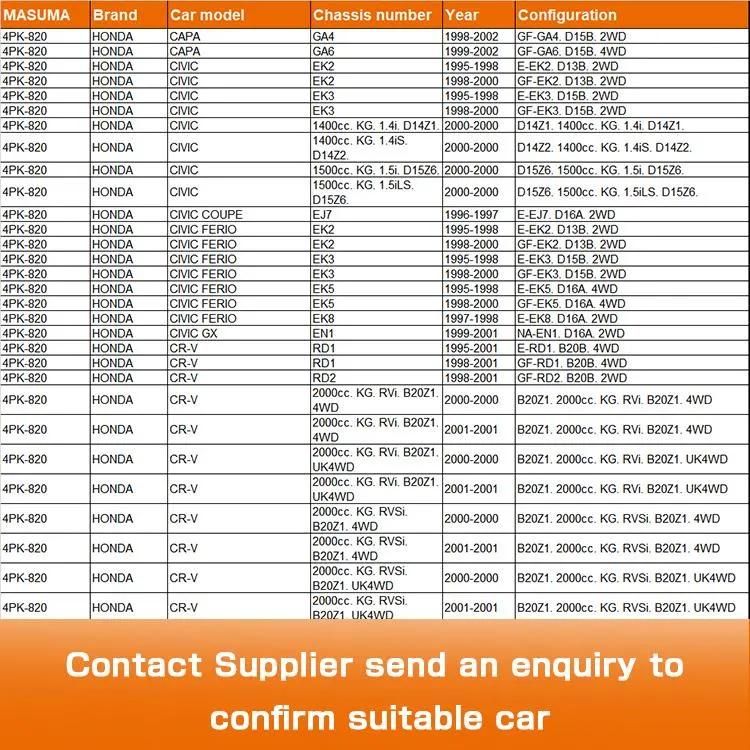

Automotive Engine Poly Pk Fan Multi V Ribbed BeltWhy Choose UsA: We can produce the belt logo same as customer design ,do OEM
B : We accept the sample order for customer to confirm the quality ,MOQ is 100 pcs /model .
C: Usually our delivery time is within 30 days after received customer deposit .
D: We can delivery the goods to customer warehouse in china , also we can do FOB.
E : If customer need box for belt , we can also make same as customer design .
F : for the belt material , ropes , surface , we can also do according to customer requirement .
