Powerful PU Toothed Belt Synchronous Belt Htd 14m Truly Endless
Shenzhen Jiaheng Industrial Belting Co., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：PU
- Type：Toothed Belt
Base Info
- Model NO.：HTD14M
- Pitch：14mm
- Color：White
- Cord：Steel, Kevlar
- Max Width：100mm
- Transport Package：Export Standard
- Specification：HTD 14M
- Trademark：UNI Belting
- Origin：Shanghai China
- HS Code：3926901000
- Production Capacity：20000000 Meters
Description
Basic Info.
Model NO. HTD14M Pitch 14mm Color White Cord Steel, Kevlar Max Width 100mm Transport Package Export Standard Specification HTD 14M Trademark UNI Belting Origin Shanghai China HS Code 3926901000 Production Capacity 20000000 MetersProduct Description

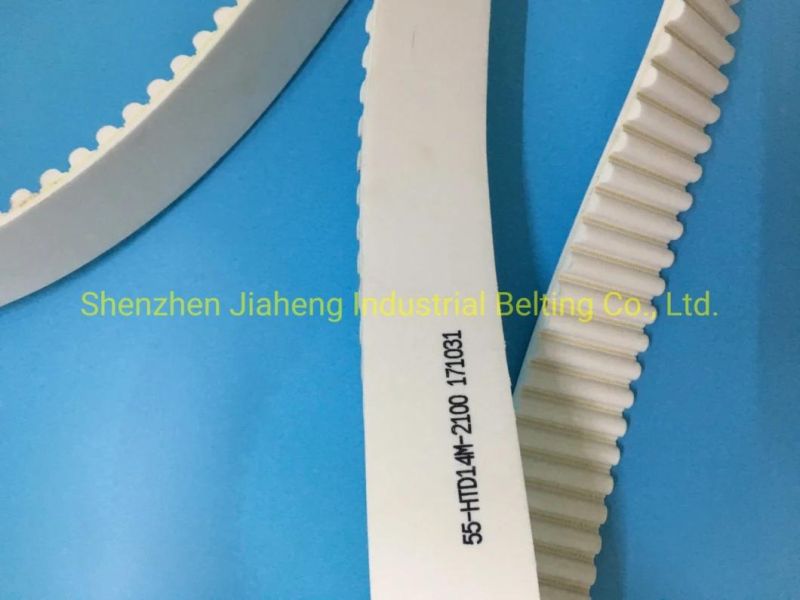

Flex PU Synchronous belt HTD 14M
PU Synchronous belts are manufactured in thermoset polyurethane by a unique moulding process. The high-grade polyurethane gives superior wear and abrasion resistance. Several types of cords, helicoidally rolled up inside the belts, assure excellent dimensional stability and offer high performances in terms of flexibility and traction resistance.

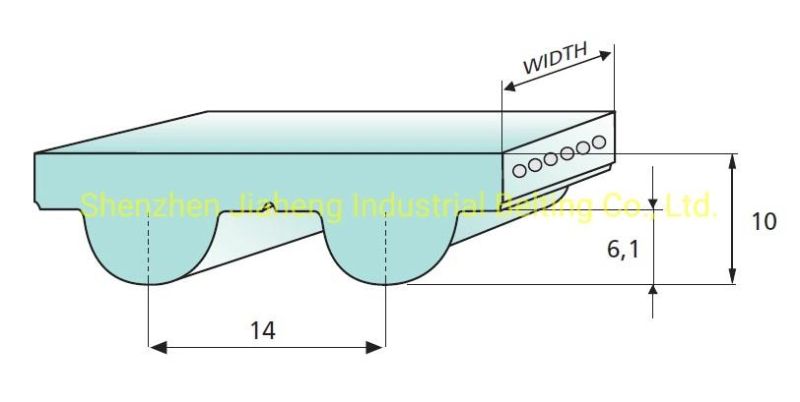

Model: HTD 14M
- Pitch:14mm
- Cord:Steel, Kevlar
- Max production width:100mm
- Tension Strength:400N/mm
- Elongation at break tensile:320
- Elongation at break1%:4.0
- Belt back hardness:75+-5
- Fabric bonding strength:12 N/mm
- Core rope bounding strength:1200N/mm
- Teeth Shearing strength:80N/mm

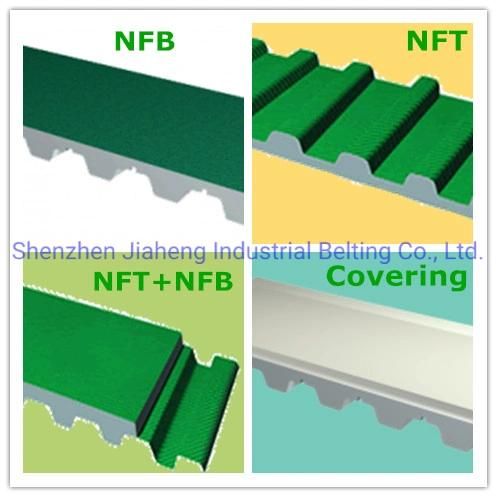

- Available Options
- NFT (Nylon fabrics facing on teeth)
- NFB (Nylon fabrics facing belt back)
- NFT+NFB (Nylon fabrics facing both sides)
- Covering/Coating
- Mechanical Features
- Consistent dimensional stability
- Low pre-tension
- Low noise
- High abrasion resistance
- Low maintenance
- High flexibility
- The max linear velocity can reaches 80m/second
Typical applications:- Food processing
- Office automation equipments
- Swimming pool cleaning robots
- Automatic sliding doors and garage opening system
- Automated handling devices
- Linear drivers
- Positioning system
- Electric appliance
- Textile Industry
- Wood Machine Industry
- Stone and marble Industry
- Paper and Printing
- DIY equpiments
- Chemist and pharmaceutical industry
- Robotic arms
