Rubber Timing Belt Toothed Belt 14m Double Teeth

Shenzhen Jiaheng Industrial Belting Co., Ltd.
  • Standard or Nonstandard：Standard
  • Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
  • Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
  • Tensile Strength：Strong
  • Material：Rubber
  • Type：Toothed Belt

Base Info

  • Model NO.：14m
  • Pitch：14mm
  • Color：Black
  • Cord：High Quality Glass Fibre
  • Max Width：200mm
  • Transport Package：Export Standard
  • Specification：14M Double teeth
  • Trademark：UNI Belting
  • Origin：Shanghai China
  • HS Code：4010390000
  • Production Capacity：20000000 Meters

Description

Basic Info.

Model NO. 14m Pitch 14mm Color Black Cord High Quality Glass Fibre Max Width 200mm Transport Package Export Standard Specification 14M Double teeth Trademark UNI Belting Origin Shanghai China HS Code 4010390000 Production Capacity 20000000 Meters

Product Description

Rubber Toothed Belt 14M Double teeth

The double-sided pitch synchronous belt and tooth profile equivalent to a single tooth and tooth belt pitch.
Double teeth with tooth by the synchronous belt arrangement standards can be divided into two types; DA-duplex synchronous belt tooth, a tooth with its two symmetrical arrangement,DB-duplex synchronous belt gear, with its two locations with staggered teeth were.

Model: 14M double teeth
  • Pitch:14mm
  • Cord:High quality fibre
  • Max production width:200mm
  •
Belt using Japan imported high quality synthetic neoprene,and match into many different uses of rubber materials; Skeleton materials imported from Japan for high quality glass fiber cord; Tooth surface with nylon 66 high stretch do protection.

The product's pitch and tooth profile is synonymous with single tooth synchronous belt

The products are mainly used for double drive, synchronous and double efficiency characteristics.

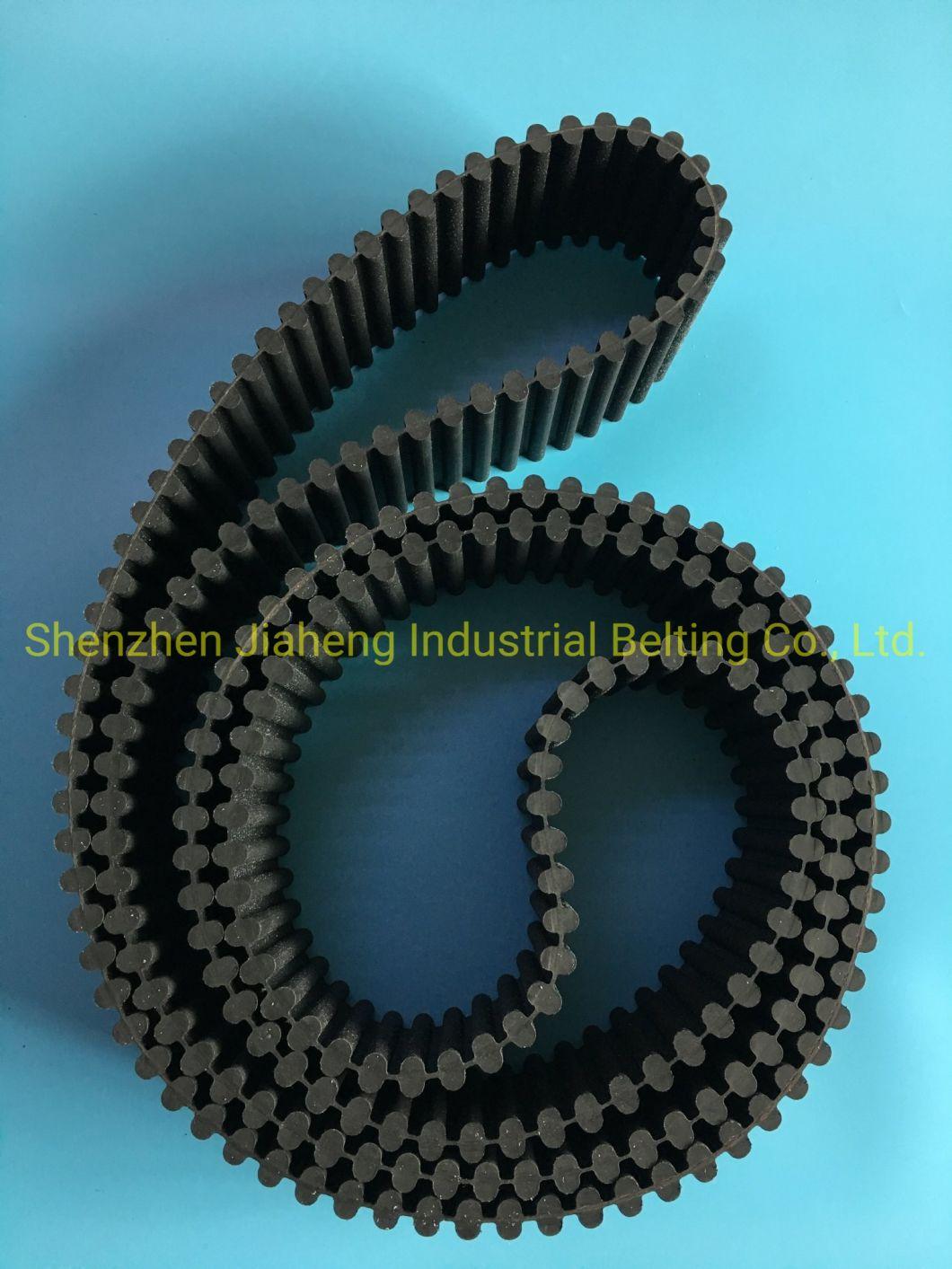

Rubber Timing Belt Toothed Belt 14m Double Teeth

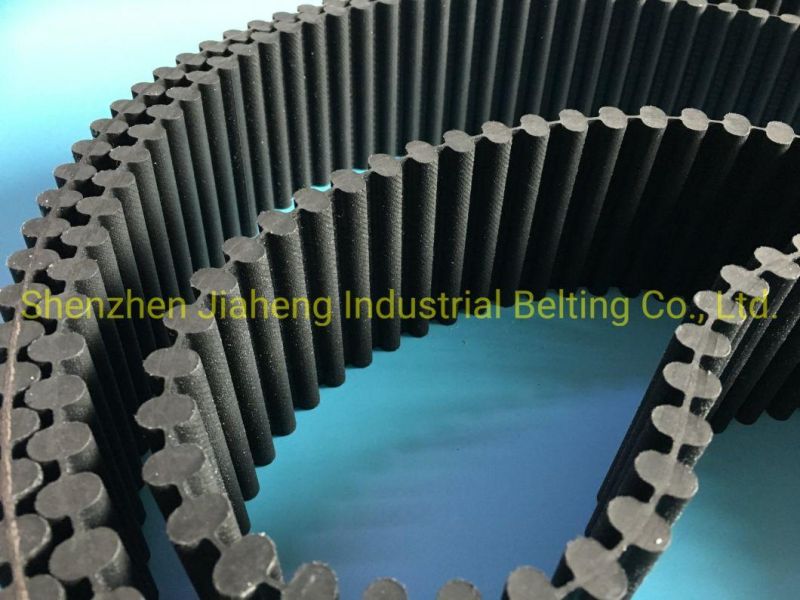

Rubber Timing Belt Toothed Belt 14m Double Teeth

In the requirements with a band transmission and in opposite directions, Installation position require special compact, or in the main drive and auxiliary transmission linkage and other transmission demanding field, reflects its excellence;

Products to structure and no slip meshing transmission characteristics such as low noise by the mechanical textile precision instruments petroleum chemical communication cable industry recognition and understanding to a wide range of applications.
