Heavy Duty Helical Gear Box with Cast Iron Housing for Crane

Zhejiang Donghai Reducer Co., Ltd.
  • Application：Motor, Machinery, Lifting
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Layout：Shunting
  • Gear Shape：Conical - Cylindrical Gear
  • Step：Three-Step

Base Info

  • Model NO.：QYJ series
  • Type：Gear Reducer
  • Warranty：One Year
  • Phase：Three-Phase
  • Protect Feature：IP54 or IP55
  • Poles：4 Poles
  • Voltages：380V ~ 440V
  • Transport Package：Wooden Carton
  • Specification：1 set in one carton
  • Trademark：Donghai , TGS
  • Origin：Zhejiang, China
  • HS Code：8483409000
  • Production Capacity：5000000 Pieces ,Year

Description

Basic Info.

Model NO. QYJ series Type Gear Reducer Warranty One Year Phase Three-Phase Protect Feature IP54 or IP55 Poles 4 Poles Voltages 380V ~ 440V Transport Package Wooden Carton Specification 1 set in one carton Trademark Donghai / TGS Origin Zhejiang, China HS Code 8483409000 Production Capacity 5000000 Pieces /Year

Product Description

Company  Profiles


-We are a leading gear motor manufacturer
Zhejiang Donghai Reducer is a leading manufacturer of gear motor and gearbox.
Since 1991, we have specialized in manufacturing a wide range of gear motor and gear box including:



  • helical gear motor
  • helical bevel gear motor
  • parallel shaft helical gear motor
  • helical worm gear motor
  • hoist drive
  • heavy-duty helical gearbox
  • heavy-duty helical bevel gearbox
  • gear motor for car parking system
  • sprial bevel gearbox
Heavy Duty Helical Gear Box with Cast Iron Housing for Crane

Product Description


QYJ series gear box could be divided into QYJH parallel shaft and QYJB 90° shaft, from one stage to 4 stages.

Mounting position: horizontal, vertical and upright mounting.

Technical data:

Gear ratio:      1.25 ~ 450

Rated output torque:  20 ~ 500 KNm

Motor power:     1.1 ~ 200 KW

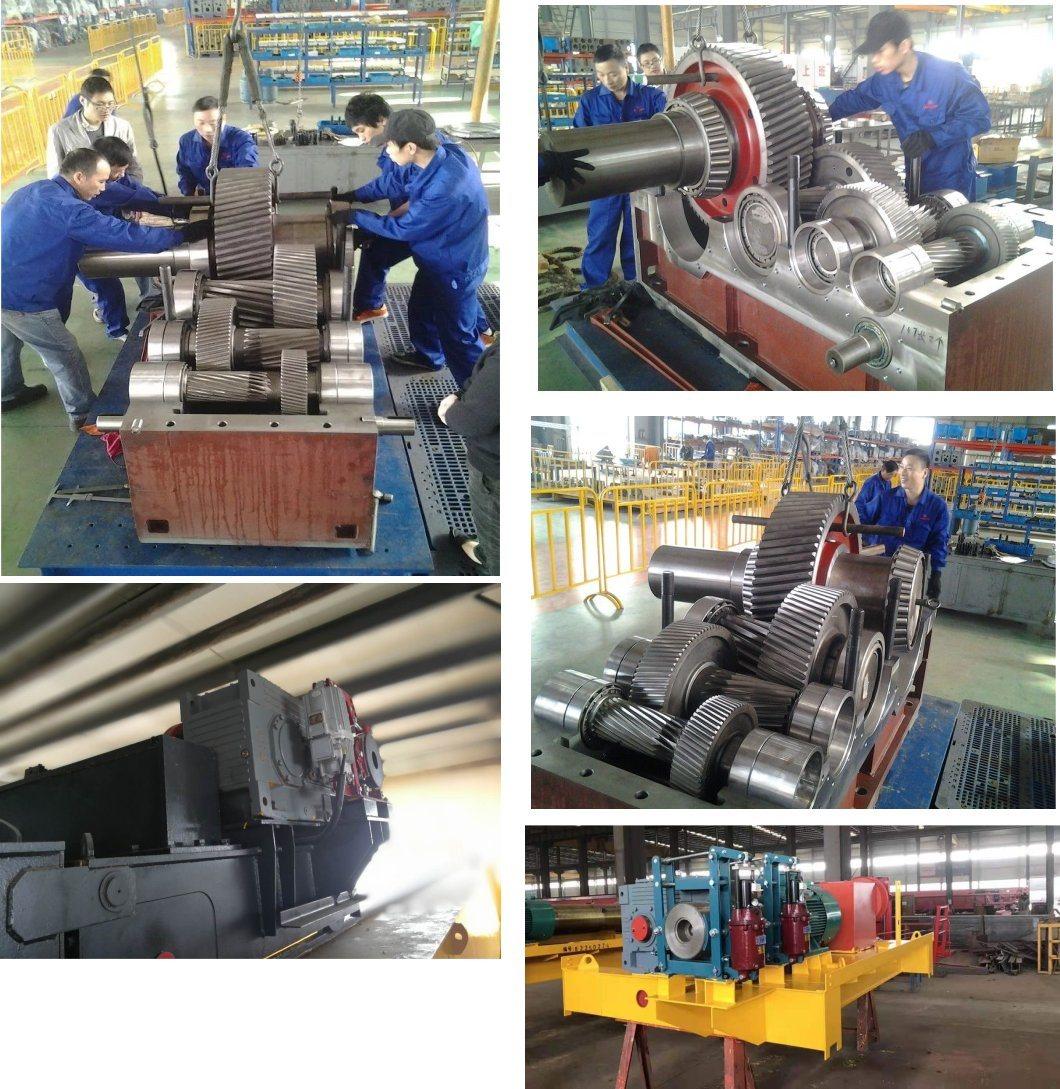

Product Show

Heavy Duty Helical Gear Box with Cast Iron Housing for CraneHeavy Duty Helical Gear Box with Cast Iron Housing for Crane

Product Specification



Package

Plastic bag + wooden carton


Certificate

Heavy Duty Helical Gear Box with Cast Iron Housing for Crane


Heavy Duty Helical Gear Box with Cast Iron Housing for CraneHeavy Duty Helical Gear Box with Cast Iron Housing for Crane

FAQ

Q: Can you print other colors?
Yes. Customized color can be printed on the gear motor according to your requirements.
Q: Is that factory price?
Yes. We assure you all prices are based on factory.
Q:  What is the life span? what is the guarantee
The lifespan of gear motor can reach 5-20 years depending on different working conditions .The guarantee time is one year after delivery.
Q: What documents are available?
A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.
Q: Is it able to customized?
yes, we could re-design and produce the gear motor as your requirements if the quantity is large.
