Hot Sale 16mm Planetary Gear Box/12V 24V DC Motor/High Torque Low Speed Gear Motor/Low Noise
Ningbo Twirl Motor Co., Ltd.- Application：Motor, Electric Cars, Motorcycle, Machinery, Marine, Toy, Agricultural Machinery, Car, Water Meter IC Card
- Function：Distribution Power, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction
- Layout：Planetary Gear Box
- Hardness：Hardened Tooth Surface
- Installation：Torque Arm Type
- Step：Three-Step
Base Info
- Model NO.：PG16050129000-90K
- Type：Planetary Gear Box
- Material：Powder
- Bearing：Sleeve Bearings
- Transport Package：Carton
- Trademark：Twirl
- Origin：China
- Production Capacity：50000PCS,Month
Description
Basic Info.
Model NO. PG16050129000-90K Type Planetary Gear Box Material Powder Bearing Sleeve Bearings Transport Package Carton Trademark Twirl Origin China Production Capacity 50000PCS/MonthProduct Description

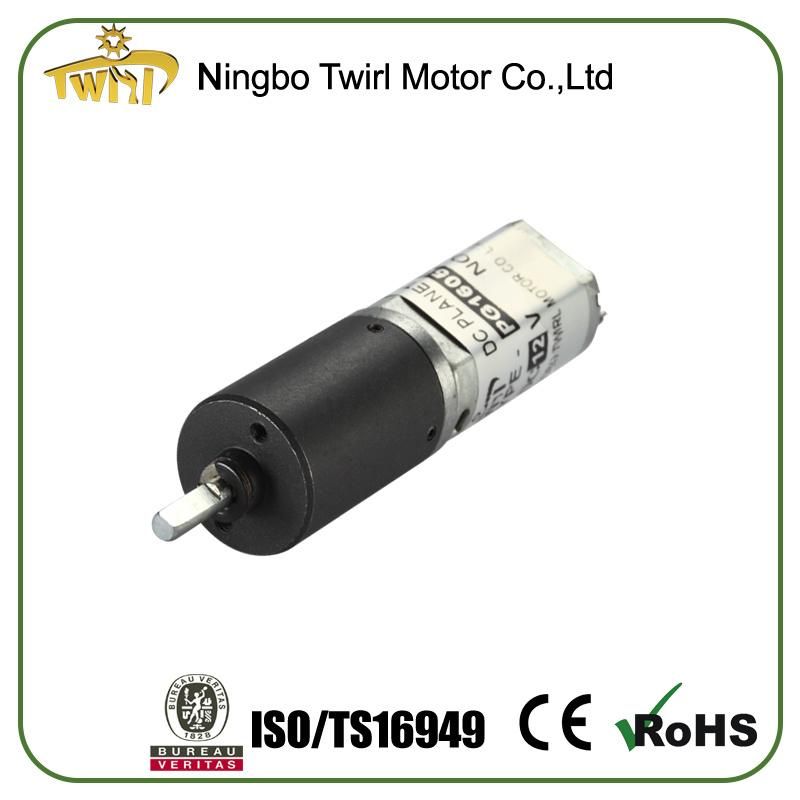

16mm micro planetary gear motor

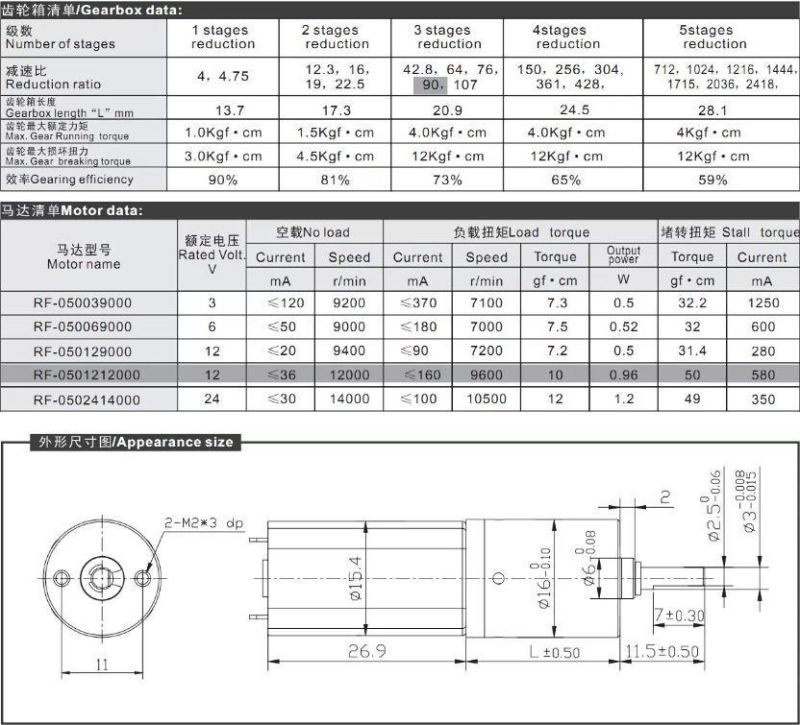

PG16M050 SeriesDia:Ø16×(42.9~53.9)mm
Rated torque:1kg.cm~4kg.cm
Description
Product description| Product name | PG16050 series,16mm diameter planet gear motor |
| Motor type | carbon-brush commutator |
| Gear type | Straight gearwheel planet gearhead |
| Housing material | Steel |
| Geartrain material | Steel , Powdered Metal |
| Bearing at output shaft | Sleeve bearing |
| Lubricant | Grease for high-low temperature |
| Axial play | <0.3mm |
| Radial play | <0.05mm(5mm from mounting face) |
| Rotation direction | CW/CCW reversible |
| Backlash at no-load | <1° |
| Operating temperature range | -40 °C~+100°C |
| Noise (DB) | <55DB measured at 30cm distance |
| Lifetime | 1000+ hours (varies by application) |
| OEM & ODM Service | Available |
| Certificate | CE,ROHS,SGS,TUV,IATF16949 |

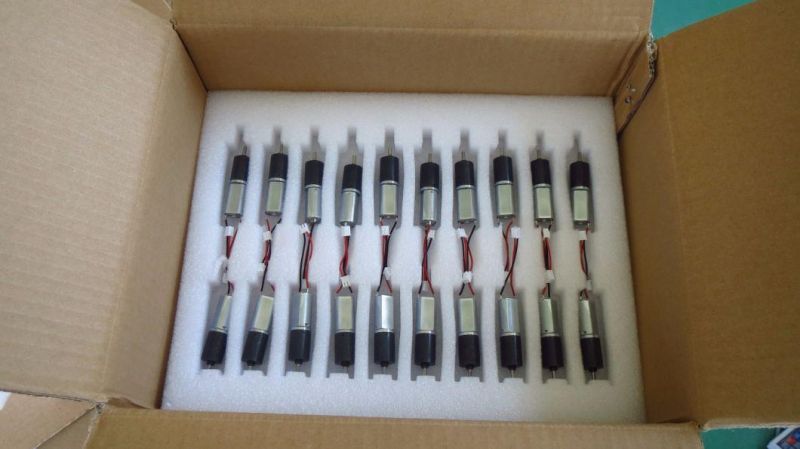

Packing and deliveryFast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.
*shockproof foam packing
*50 pcs each layer
*3 layers each carton
*carton meas.:30*28*13cm
*150pcs/ctn
*N.W.:12kgs
*G.W.:11.2kgs
*recycled wooden pallet
*stretch film
*binding tape
*Shipping mark on each carton and pallet
CERTIFICATE
FAQ
Q:1.What kind of motors you can provide?
A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
