Convery Belt Transmission Belt Pk Belt

Jiangxi VOLKED Import & Export Co., Ltd.
  • Standard or Nonstandard：Standard
  • Application：Agricultural Machinery
  • Feature：Anti-Static, Oil-Resistant, Cold-Resistant, Heat-Resistant, Wear-Resistant, High Temperature-Resistance
  • Tensile Strength：Strong
  • Material：Rubber
  • Quality：Cr,EPDM Rubber

Base Info

  • Model NO.：3PK 850
  • Printing：Brand Customized
  • MOQ：100PCS
  • Delivery Time：15-30 Days
  • Field：Industrial Engineering
  • Transport Package：Packing Card+Carton
  • Specification：3PK 850
  • Trademark：VOLKED
  • Origin：China
  • HS Code：40103900
  • Production Capacity：500000

Description

No.NameFunctionMaterial1Top FabricProtect the lining tensile memberPolyester Cotton Canvas2Buffer RubberSuport adn protect the adhesive
force of the tensile memberCR, EPDM3Tensile MemberCritical material to pass the dynamic forcePolyester, Nylon4Bottom RubberMaintain the shape of the rubber and
improve its side compression performanceCR, EPDM  Feature
  • Wide breadth but thin belt, excellent elastic and flexural property
  • High transmission efficeincy under the operating environment of high-speed rotation, reverse flexure, small band pulley, etc.
  • Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation
  • Excellent heat-resistance, oil-proof, and wearing resistance
  • Less slip while large transmission effect during the process of operation
  • Less noise during the process of operation
Size of SectionTypeRibsection(mm)Angle of rib(o)Belt Thickness(mm)Rib NumbersLength rangePH1.64033-54540-1270PJ2.344043-36540-18880PK3.56404-63-23600-2400PL4.740103-16900-3000PM9.440173-81500-3000

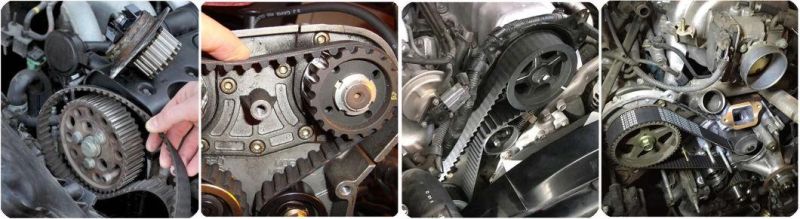

Applications

Rubber PVC Silicone PU Auto Motorcycle Transmission Parts Fan Conveyor Synchronous Tooth Drive Pk Timing V Belt
