• Model NO.：WNMN0804
• Specification：2cm x 2cm x 1cm
• Trademark：CTCB. AP
• Origin：China
• HS Code：8208101100
• Production Capacity：10000

Basic Info.

Model NO. WNMN0804 Specification 2cm x 2cm x 1cm Trademark CTCB. AP Origin China HS Code 8208101100 Production Capacity 10000

Product Description

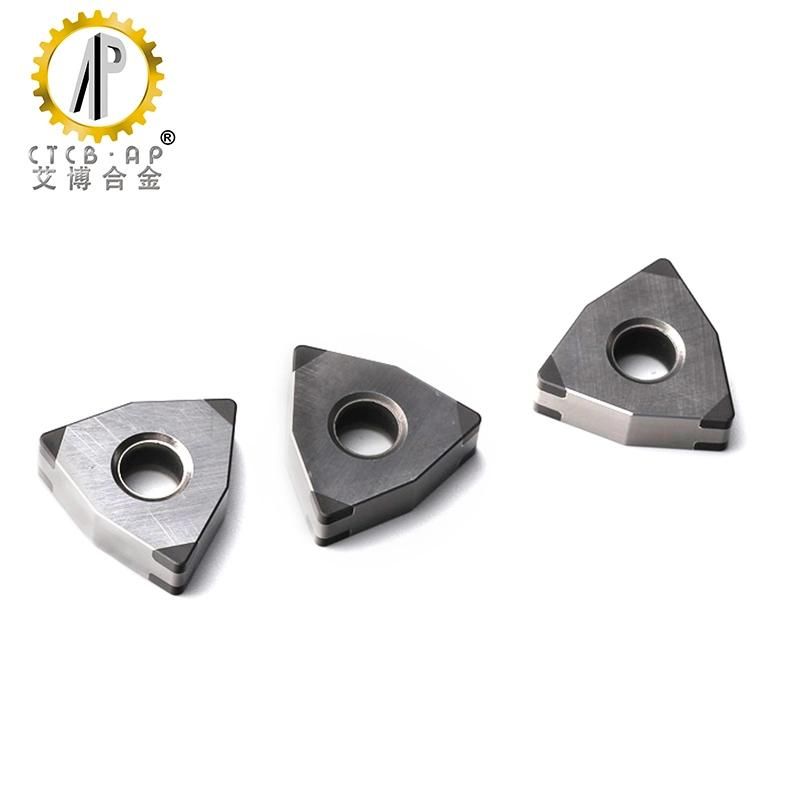

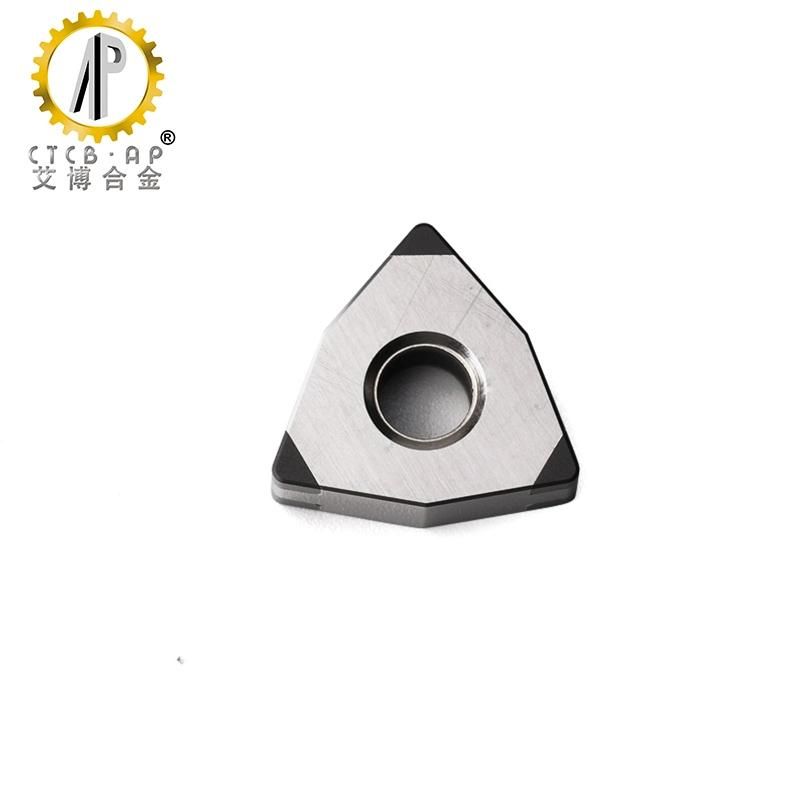

WNMN CBN Inserts For Cutting Cast Iron Powdered Sintered Metals

And Super-Alloys

CBN inserts made by the material Cubic boron nitride with high hardness, good thermal stability and strong bonding resistance suitable for processing high-manganese steel, tool steel, bearing steel, high-chromium alloy, gray cast iron, HT250 and so on. Sandwich CBN insert allows multiple corners or double full face negative inserts with a very strong high temperature vacuum braze. It provides higher insert integrity and lower cost per corner


Advantages of WNMN CBN Inserts For Cutting Cast Iron Powdered Sintered Metals And Super-Alloys

1. Resists tribooxidation, adhesion, or diffusion

2. Increases wear resistance and dissipates heat from the cutting edge more efficiently thus drastically improving tool life and surface finish

3. Compressive strength and toughness for hard turning with continuous to
extremely interrupted cut.

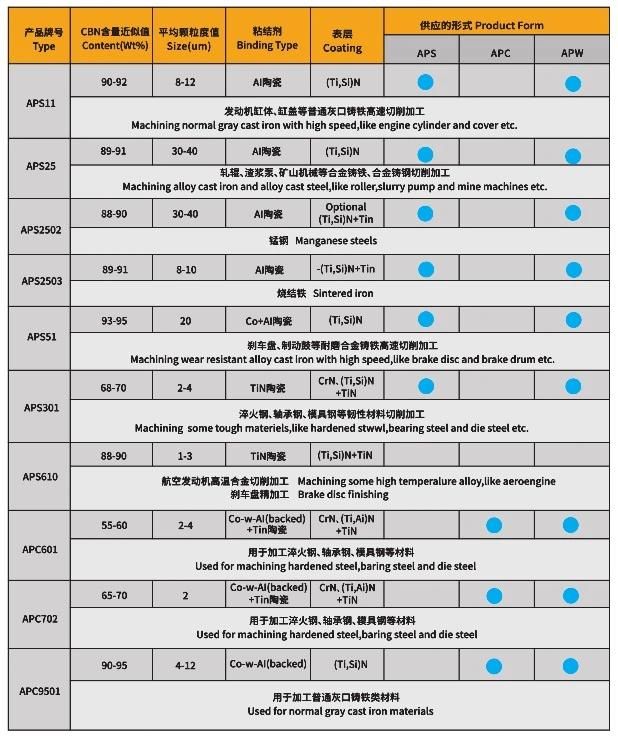

Grades recommendation of WNMN CBN Inserts For Cutting Cast Iron Powdered Sintered Metals And Super-Alloys

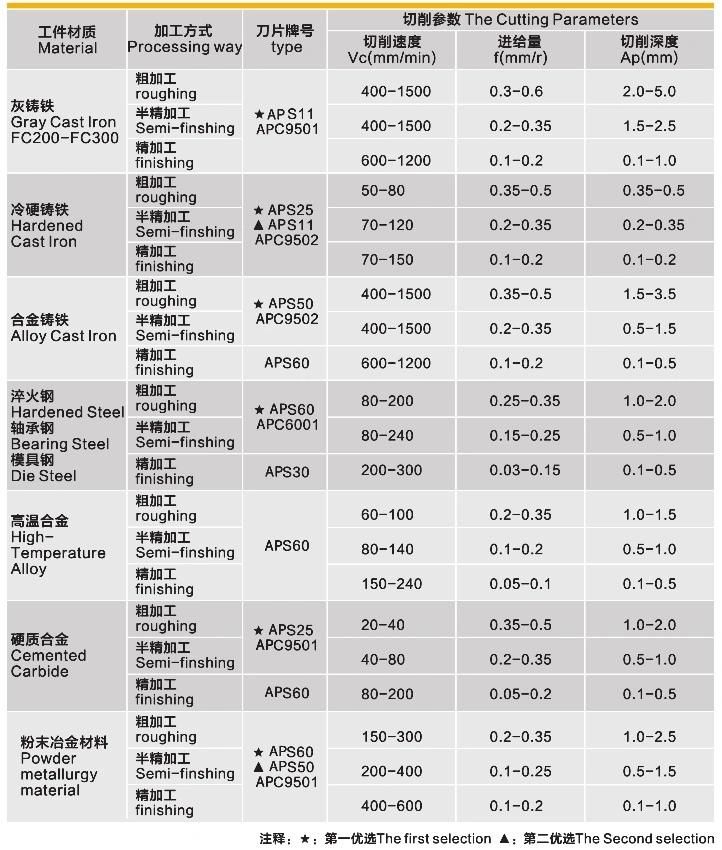

The cutting parameters of WNMN CBN Inserts For Cutting Cast Iron Powdered Sintered Metals And Super-Alloys

More pictures of WNMN CBN Inserts For Cutting Cast Iron Powdered Sintered Metals And Super-Alloys
