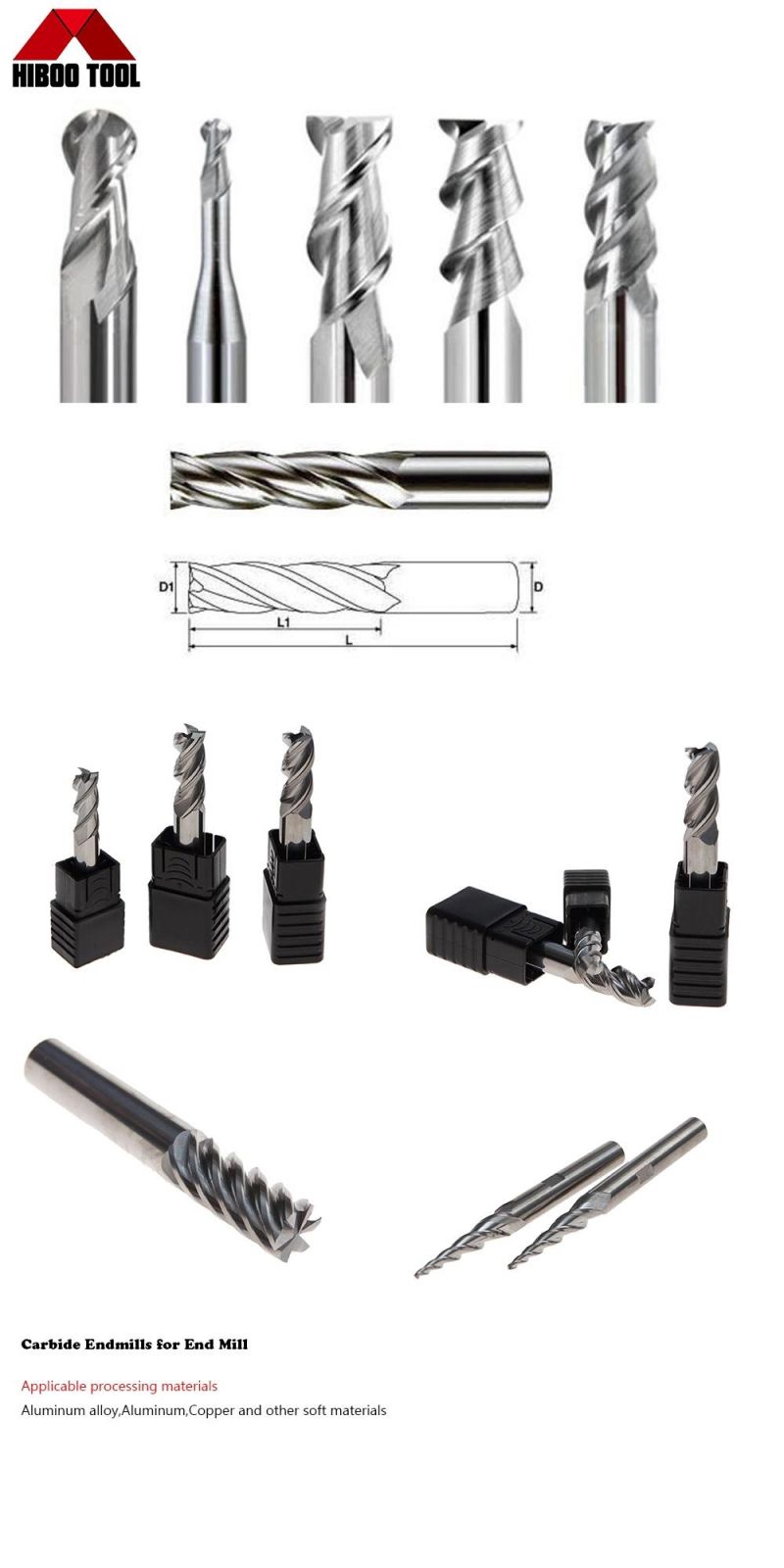

Manufacture Tungsten Carbide Square End Mills for Cutting Aluminum
Changzhou Hongjian Tools Co., Ltd.- Coating：Uncoated
- Tooth Form：Customized
- Tooth Space：Sparse Tooth
- Structure：Integral
- Material：Tungsten Steel
- Type：Face Milling Cutter
Base Info
- Model NO.：Square End Mills
- Export Markets：Global
- Trial Order：Accepted
- Grain Size：0.4um
- Solid Carbide：Carbide Alloy
- Helix Angle：35,45
- Transport Package：Air
- Specification：SGS
- Trademark：Hiboo
- Origin：Changzhou Jiangsu China
- HS Code：8207709000
- Production Capacity：50000PCS,Mouth
Description
SpecificationsDiameter(d) Radius(R) Cutter length(l) Overall length(L) Shank diameter(D) ∮1 3 50 ∮4 ∮1.5 4 50 ∮4 ∮2 6 50 ∮4 ∮2.5 8 50 ∮4 ∮3 8 50 ∮4 ∮3.5 10 50 ∮4 ∮4 11 50 ∮4 ∮4 15 75 ∮4 ∮4 20 100 ∮4 ∮4.5 13 50 ∮6 ∮5 13 50 ∮6 ∮5 20 75 ∮6 ∮5 30 100 ∮6 ∮5.5 15 50 ∮6 ∮6 15 50 ∮6 ∮6 20 75 ∮6 ∮6 30 100 ∮6 ∮6 20 60 ∮8 ∮8 20 60 ∮8 ∮8 25 75 ∮8 ∮8 35 100 ∮8 ∮9 25 75 ∮10 ∮10 25 75 ∮10 ∮10 40 100 ∮10 ∮11 30 75 ∮12 ∮12 30 75 ∮12 ∮12 45 100 ∮12 ∮14 35 100 ∮14 ∮16 40 100 ∮16 ∮18 45 100 ∮18 ∮20 45 100 ∮20 Notes:If there are special requirements,can be customized.
5.Suit the automotive parts and engines, motorcycles, and bicycle industries and other Aluminum Processing Industrial.
6. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
7. Payment Term
T/T ,Western Union
8.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest
