• Motor Power：0.18kw-160kw
• Voltage：380V ( Also Done as Your Need)
• Frequency：50,60Hz
• Enamelled Wire：Copper Wire ( Also Done Aluminum as Your Need)
• Color：Done as Your Need (Connon Blue)
• Gearbox Body：Cast Iron
• Surface Hardness of Gear：HRC58°-62°
• Protection Grade：IP55
• Gear：20crmnti
• Housing Hardness：Hbs90-240
• Transport Package：Carton ,Plywood Case,Wooden
• Trademark：GPHQ
• Origin：China
• HS Code：84834090
• Production Capacity：200000,Year

Basic Info.

Motor Power 0.18kw-160kw Voltage 380V ( Also Done as Your Need) Frequency 50/60Hz Enamelled Wire Copper Wire ( Also Done Aluminum as Your Need) Color Done as Your Need (Connon Blue) Gearbox Body Cast Iron Surface Hardness of Gear HRC58°-62° Protection Grade IP55 Gear 20crmnti Housing Hardness Hbs90-240 Transport Package Carton /Plywood Case/Wooden Trademark GPHQ Origin China HS Code 84834090 Production Capacity 200000/Year

Product Description

GPHQ F helical Parallel gearbox motor

GPHQ F helical parallel speed reduction gear box are based on the building block design,so it's convenient for them to fit all types of motors or connect with other power input.The same type of combine can fit motors with different power,so that it's possible for different types of machines to combine or connect.

GPHQ F series speed gear reducer is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stages helical
gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the
process of carburizing and quenching, grinding 1,Output torque:200-18000(N.m)
1,Rated power:0.12-200(kw)
2,Input speed:≤3000 (rpm)
3,Output speed:≤393(rpm)
4,Transmission ratio:≥3.77
5,Series:2-3
6,Mounting way:M1-M6

GPHQ F helical reducer motor materials :

housing material:	HT2OO high-strength cast iron for F37,47,57,67,77,87 HT250 High strength cast iron for F97,107,127,157
Gear material:	20CrMnTi
Housing hardness	HBS90-240
Surface hardnesss of gear	HRC58°-62°
Gear core hardness	HRC33°-40°
Input/Output shaft material	40Cr
Input/Output shaft hardness	HBS241°-286°
Shaft at oil seal postion hardness	HRC48 ° -55 °
Machining precision of gears material	Accurate grinding 6-5 grade
Efficiency	up to 98%
Noise(Max)	60-68dB
Tem.rise:	40°C
Vibration	≤20um
Motor	IP54, F class ,B5 FLANGE
color :	blue  (if you need big quantity ,we can done as your wanted color )

 Our  reduction geared motor Advantage

1,reasonable price with excellent quality
2,delivery in time
3,safe ,reliable ,economical and durable
4,stable transmission ,quiet operation
5,smooth running and low noise
6,nice appearance ,durable service life
7,high heat-radiating efficiency ,high carrying ability
8,each gearbox must be tested before packing
9.reply in high efficiency during one working day
10. professional to produce gearbox and electric motor .


If there is any question, please don't hesitate to contact with me (EVA), U can send us your inquiry. And you will get response in 1 working day.

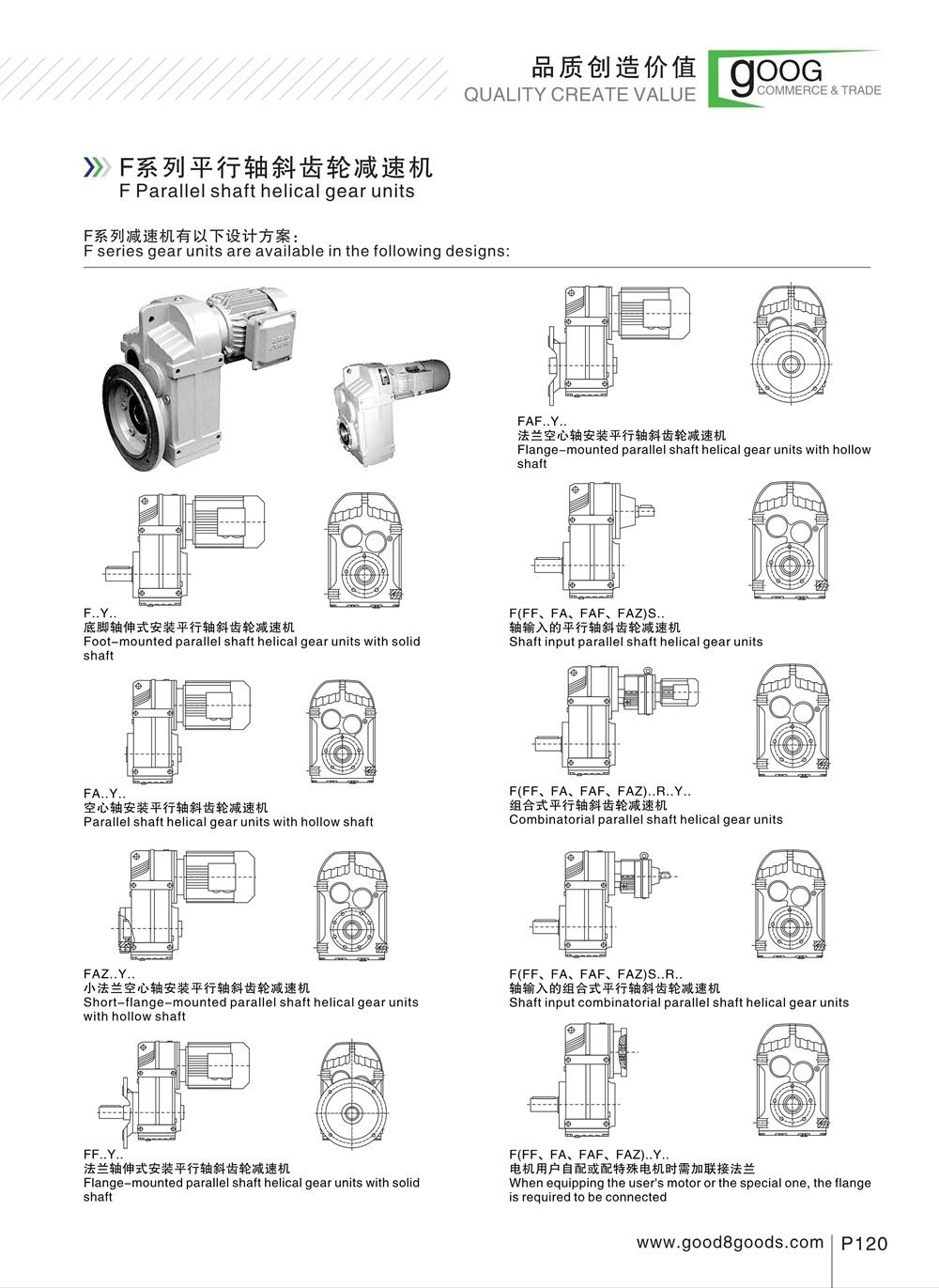

MOTOR CATALOGUE :

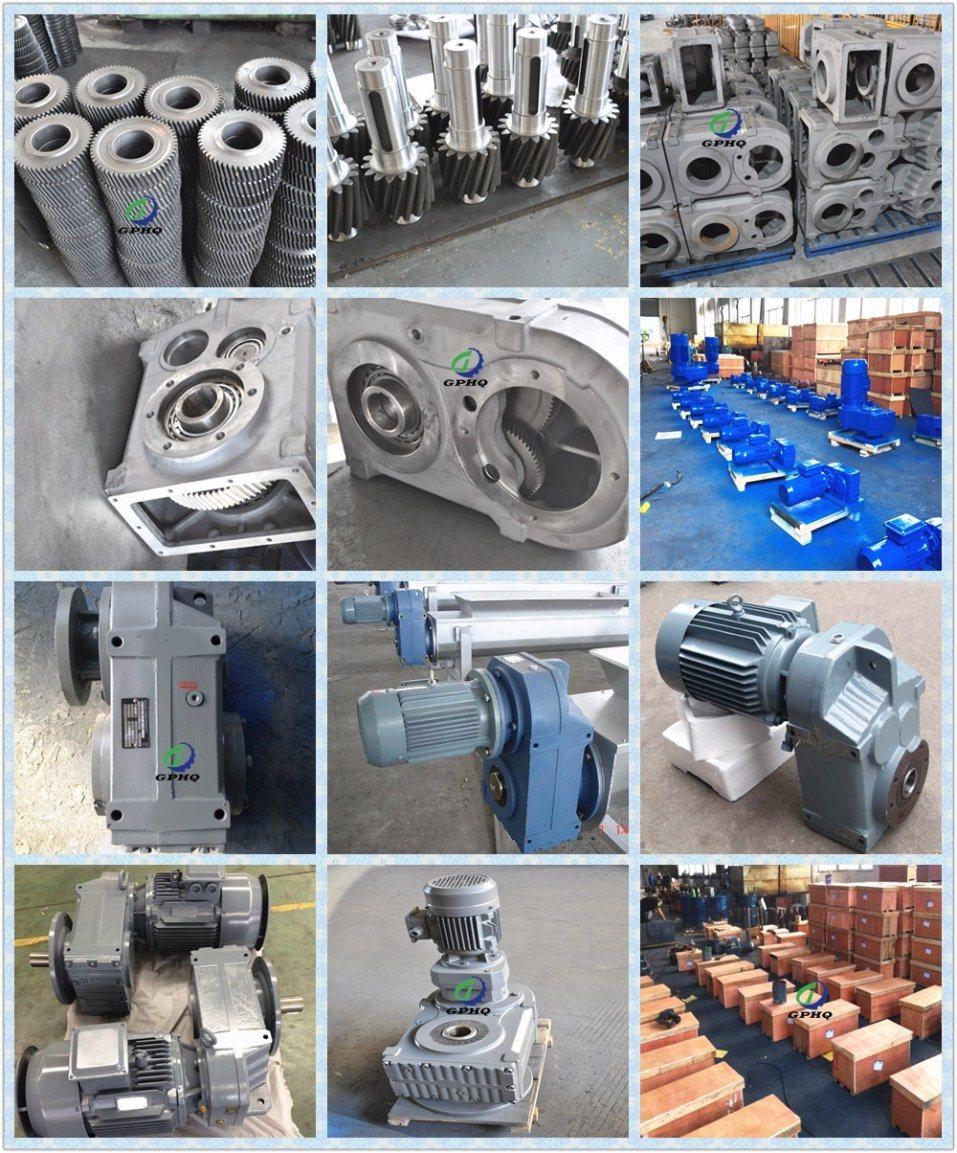

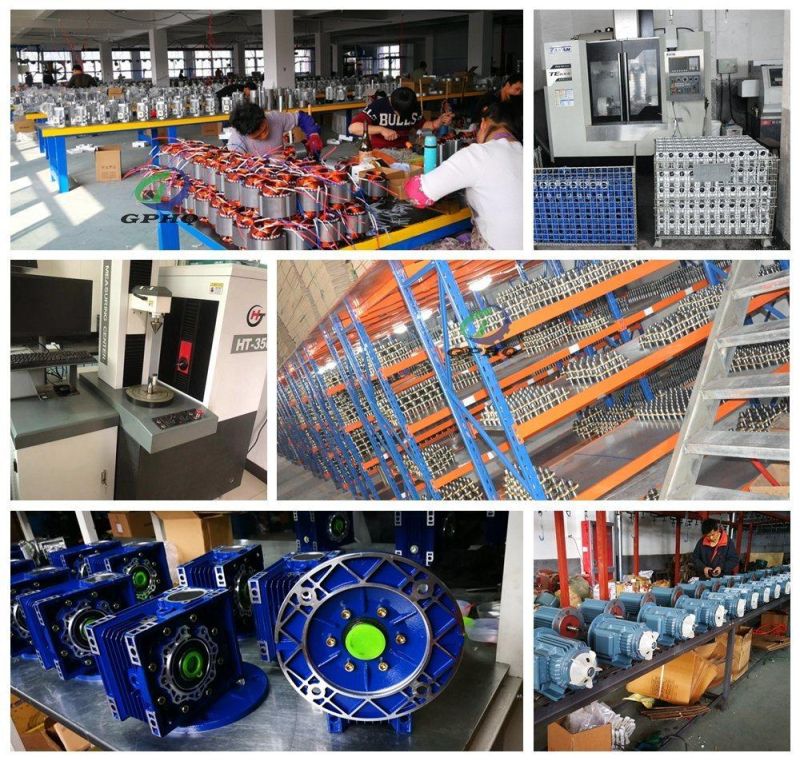

PRODUCING PROCESS:

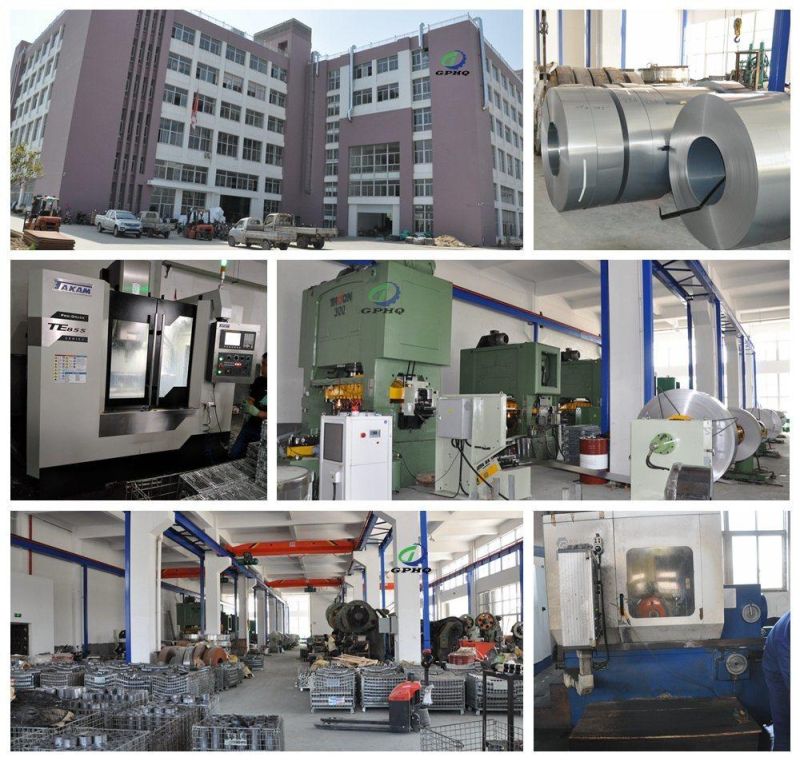

WORKSHOP EQUIPMENT:




CERTIFICATION :




PACKAGE :
for one container, directly loading ,for less, all goods with pallet,






FAQ
1, Q:what's your MOQ for ac gearbox motor  ?
A: 1pc is ok for each type electric gear box  motor

2, Q: What about your warranty for your induction speed reducer motor ?
A: one year ,but except man-made destroyed

3, Q: which payment way you can accept ?
A: TT, western union .

4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.

5, Q: how about your packing of speed reduction motor  ?
A: plywood case ,if size is small  ,we will pack with pallet for less one container

6, Q: What information should be given, if I buy electric helical geared motor  from you ?
A: rated power,  ratio or output speed,type ,voltage , mounting way , quantity , if more is better ,
