• Model NO.：wss type
• Bore Diameter：as Your Requirement
• Speed：as Your Requirement
• Structure：Flexible
• Material：40cr
• Type：Universal Coupling
• Terms of Shipment：by Sea
• Delivery Time：Depend on Your Quantity
• Length Compensation：Telescoped
• Transport Package：Depend on Your Quantity
• Specification：as your requirement
• Trademark：Huading
• Origin：China
• HS Code：8483600
• Production Capacity：10000pieces,Year
• Package size per unit product：260.00cm * 250.00cm * 380.00cm
• Gross weight per unit product：56.000kg

Basic Info.

Model NO. wss type Bore Diameter as Your Requirement Speed as Your Requirement Structure Flexible Material 40cr Type Universal Coupling Terms of Shipment by Sea Delivery Time Depend on Your Quantity Length Compensation Telescoped Transport Package Depend on Your Quantity Specification as your requirement Trademark Huading Origin China HS Code 8483600 Production Capacity 10000pieces/Year

Packaging & Delivery

Package size per unit product 260.00cm * 250.00cm * 380.00cm Gross weight per unit product 56.000kg

Product Description

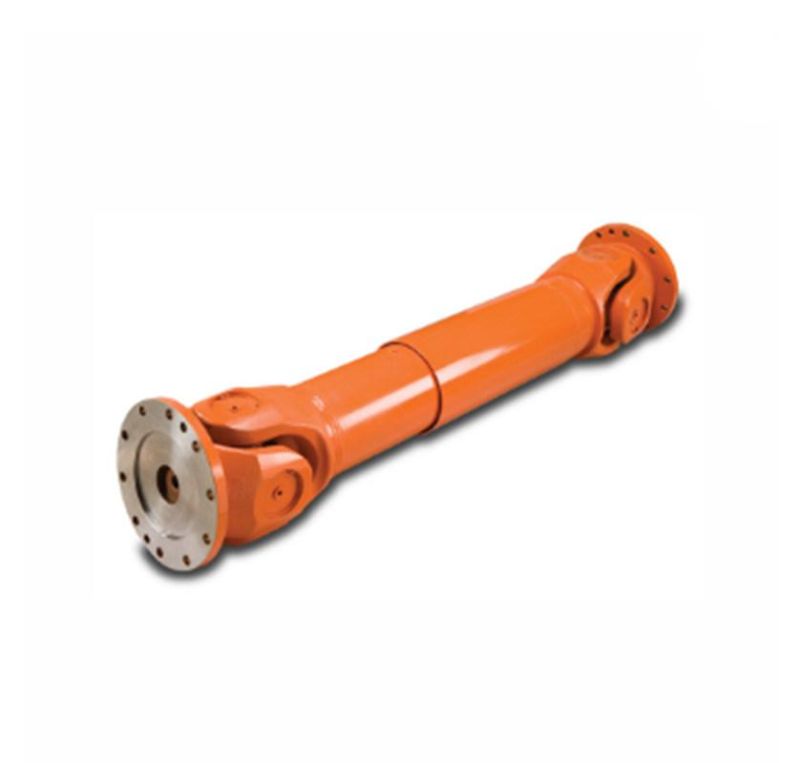

Gimbal flexible cardan shaft coupling(WSS)
Features:
1. It is suitable for transmission coupling space on the same plane of two axis angle beta β≤45°, the nominal torque transmission 11.2-1120N.

2.The WSD type is a single cross universal coupling, and the WS type is a double cross universal coupling, the WSS type is a telescopic universal coupling.

3.Each section between the largest axis angle 45º.

4.The finished hole H7, according to the requirements of keyseating, six square hole and square hole.

5.The angle between the two axes is allowed in a limited range as the work requirements change.

Technical Data

Model	Tn    N.m	D	d	Lo min	L	L1	L2	S
WSS2	22.4	20	12	176	22	32	112	30
WSS3	45	25	14	200	27	40	129	30
WSS4	71	32	18	243	30	46	151	35
WSS5	140	40	22	287	38	58	171	43
WSS6	280	50	28	337	44	69	199	50
WSS7	560	60	35	428	60	91	246	65
WSS8	1120	75	42	556	84	122	322	90

Product Show


Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Our Services
24 hours online service
Enquiry will be replied in 2 hours

Factory Address:
No. 11, Fuyang Road, ChengNan Industrial Park, Jingjiang, Taizhou, Jiangsu, China

♦FAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.

Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.

Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.

Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.

Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.

Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.

Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.

Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.

Q 9: What's your payment?
A:1) T/T. 2) L/C


Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.
