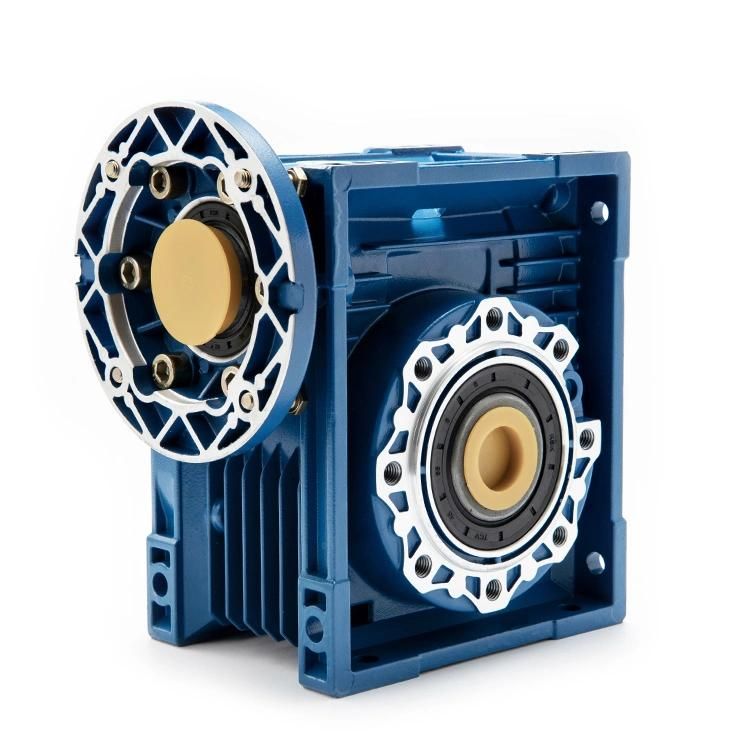

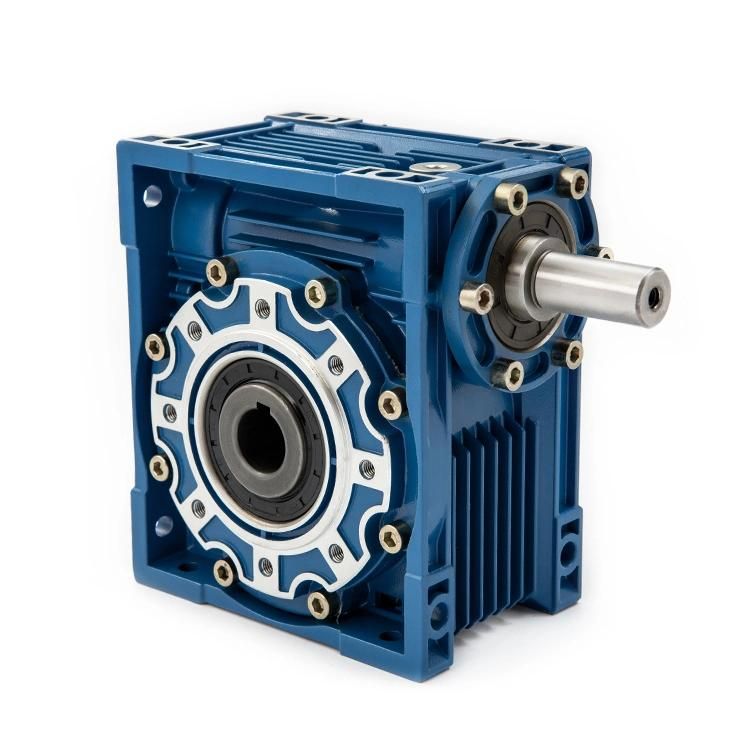

Nmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry Machine

Greensky Power Company Limited
  • Application：Machinery, Agricultural Machinery, Light Duty Machine
  • Function：Change Drive Torque, Speed Reduction
  • Layout：Right Angle
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：2 Stage or 3 Stage

Base Info

  • Model NO.：NMRV025~150
  • Type：Worm Gear Box
  • Ratio：7.5-100
  • Power：0.01-25.8kw
  • Output Torque：13-1550nm
  • Material：Aluminum and Cast Iron
  • Motor：AC or DC or BLDC
  • Dimension：Metric or Inch
  • Transport Package：Carton and Wooden Box Packing
  • Specification：025, 030, 040, 050, 063, 075, 090, 110, 130, 150
  • Trademark：GS
  • Origin：Zhejiang, China (Mainland)
  • HS Code：84834090
  • Production Capacity：30000,Month

Description

Nmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry MachineNmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry Machine

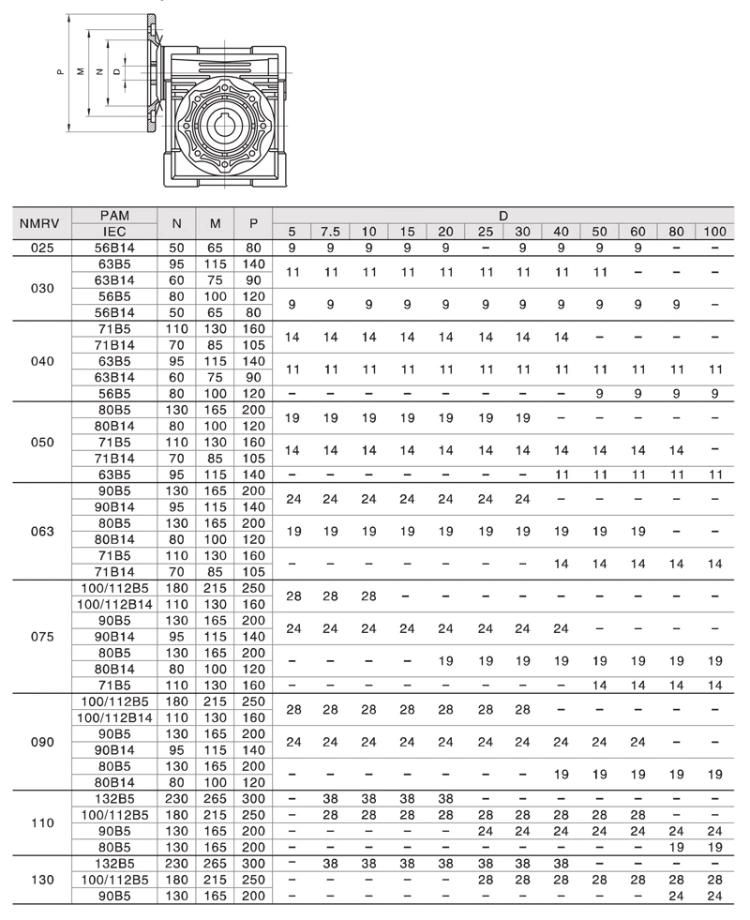

NMRV Input Dimension

Nmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry Machine

SpecificationTypeWorm Gear Speed ReducerModelNMRV025--150Ratio1:7.5,10,15,20,25,30,40,50,60,80,100ColorBlue/Silver Or On Customer RequestMaterialHousing: Blue-Coloured Cast-Iron
Worm Gear-Copper-10-3#
Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
Shaft-chromium steel-45#LubricantSynthetic&MineralBearingC&U BearingSealNAK SKFWarranty-30-40°CICE FLANGE80B5,90B5,100B5,112B5,132B5,160B5 Nema flangeRated power0.06KW,0.12KW,0.25KW,0.75KW,1.5KW,3KW,5.5KW,7.5KWApplicationMetallurgical machinery, food machinery, stage machinery,
welding machinery, road machinery, amusement machines,
packaging machinery, Rubber and plastic machinery,
environmental protection machinery ,engineering machinery,
construction machinery, machine tool industry,
 automotive industry, logistics and transportation and so on

Nmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry MachineNmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry MachineNmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry MachineNmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry MachineNmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry MachineNmrv Nrv 25-150 Worm Gearbox Speed Reducer for Industry Machine

FAQ

1 Q: What's your MOQ for the gearbox?
A: 1unit is ok for sample testing

2 Q: What about your warranty for the gearbox?
A: One year.

3 Q: Do you provide OEM service with a customized logo?
A: Yes, we could do OEM orders, but we mainly focus on our own brand.

4 Q: How about your payment terms?
A: TT, western union, and PayPal. 100% payment in advance for orders less than $5,000. 30% deposit and balance before delivery for orders over $5,000.

5 Q: How about your packing?
A: Carton, Plywood case. If you need more, we can pack all goods with a pallet.

6 Q: What information should be given, if I buy from you?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!

7 Q: How do you deliver the gearbox?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.


We hope you will enjoy cooperating with us.
