• Model NO.：110DT
• Output Allowable Axial Load (Kgf)：410
• Input Allowable Redial Load (Kgf)：295
• Input Allowable Bending Moment (Kgf)：245
• Indexing Accuracy (Sec.)：+30 or -30
• Weight (Kg)：52
• Guarantee Period：One Year
• Usage：for Automation Equipment
• Transport Package：Box
• Specification：110DT
• Trademark：HONE PAN
• Origin：China
• HS Code：84834090
• Production Capacity：20000 Sets , Year

Basic Info.

Model NO. 110DT Output Allowable Axial Load (Kgf) 410 Input Allowable Redial Load (Kgf) 295 Input Allowable Bending Moment (Kgf) 245 Indexing Accuracy (Sec.) +30 or -30 Weight (Kg) 52 Guarantee Period One Year Usage for Automation Equipment Transport Package Box Specification 110DT Trademark HONE PAN Origin China HS Code 84834090 Production Capacity 20000 Sets / Year

Product Description

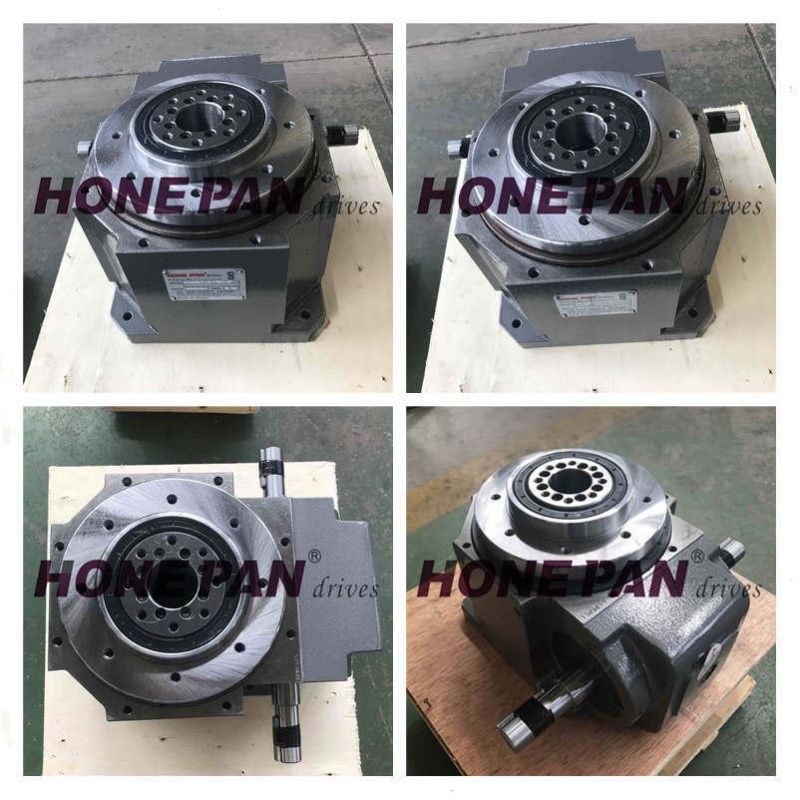

1. Table type (DT Series) Cam Indexing Drive  Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexing drive has been widely used in many kinds of automation equipment. Cam indexing drive is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

Table type (DT Series) Cam Indexing Drive introduction:
Table Type cam indexing drive could bear large load and vertical radial pressure. At the end of output there is a small static flange for easy fixing of the water pipe or cable that passes through the hollow shaft. The large rotary transmission parts are connected to the beside large flange to meet customer's needs.

Table type (DT Series) Cam Indexing Drive : 80DT, 110DT, 140DT, 180DT, 200DT, 250DT, 350DT.

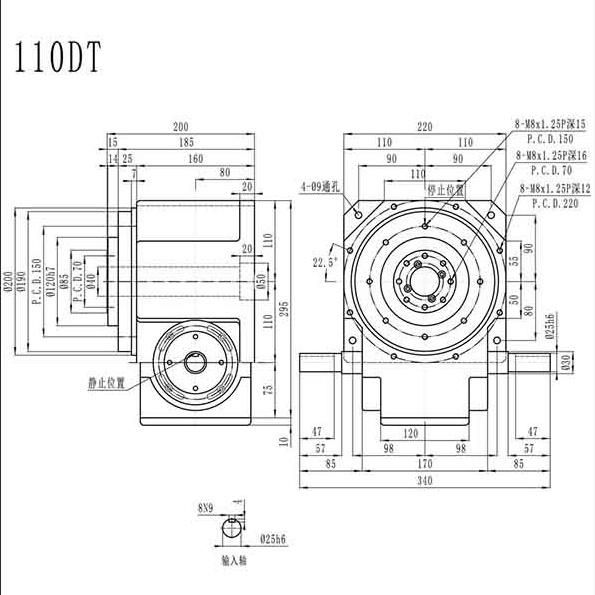

3.Specification of 110DT:



Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	850
Output allowable axial load	C2	kgf	410
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	295
Input maximum bending moment	C4	Kgf	245
Input maximum torque	C5	Kgf-m	24
GD2 of input shaft (note 1)	C6	Kgf-m2	0.01
Indexing accuracy		Sec.	±30
Weight		Kg	52

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.


4. Company, Shipment & Certificates






5. FAQ:

1) Customize prodcuts are available ?
     Yes, Customize products are available. We could design and produce products according to your  requirements or darwings. You just need to tell us your detailed requirements and our technicists will design and provide materials for your confimation. If all is ok, the production will be arranged.

2)  What's your payment terms?
    For small order, considering the value is not large, the payment terms are 100% T/T in advance.
    For large order, we could negotiate.

3) how about the packaging and shipment?

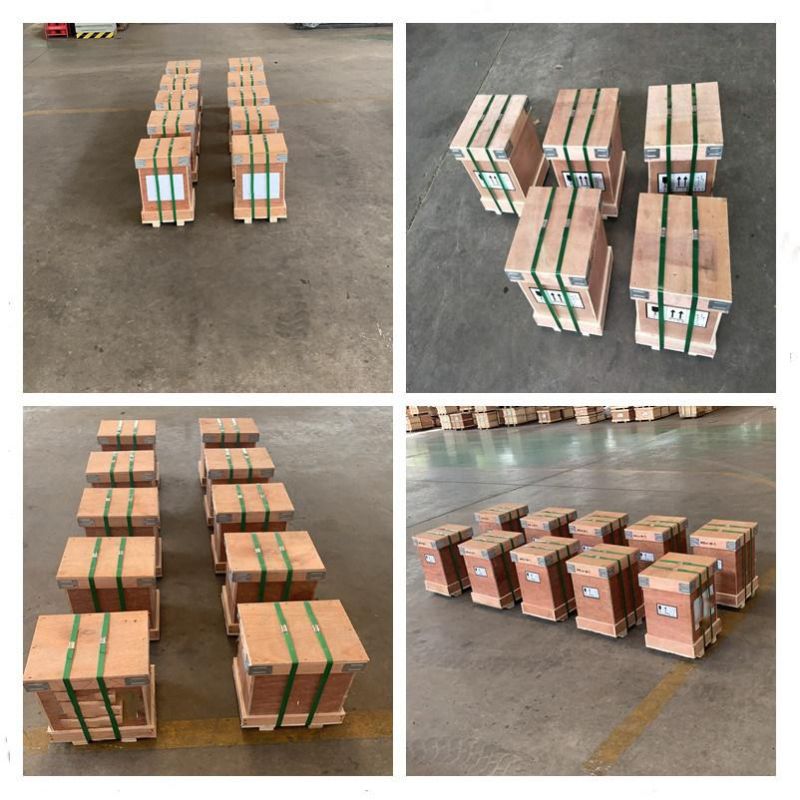

    Packaging : in box (wooden case).
