CNC Linear Guide Table C7 Ball Screw Motion Rail with NEMA 23 Step Motor

Xiamen Seatyle Import & Export Co., Ltd.
  • Openness：Open
  • Installation：Horizontal

Base Info

  • Model NO.：SKH40C7L10E100
  • Transmission Form：Step Motor

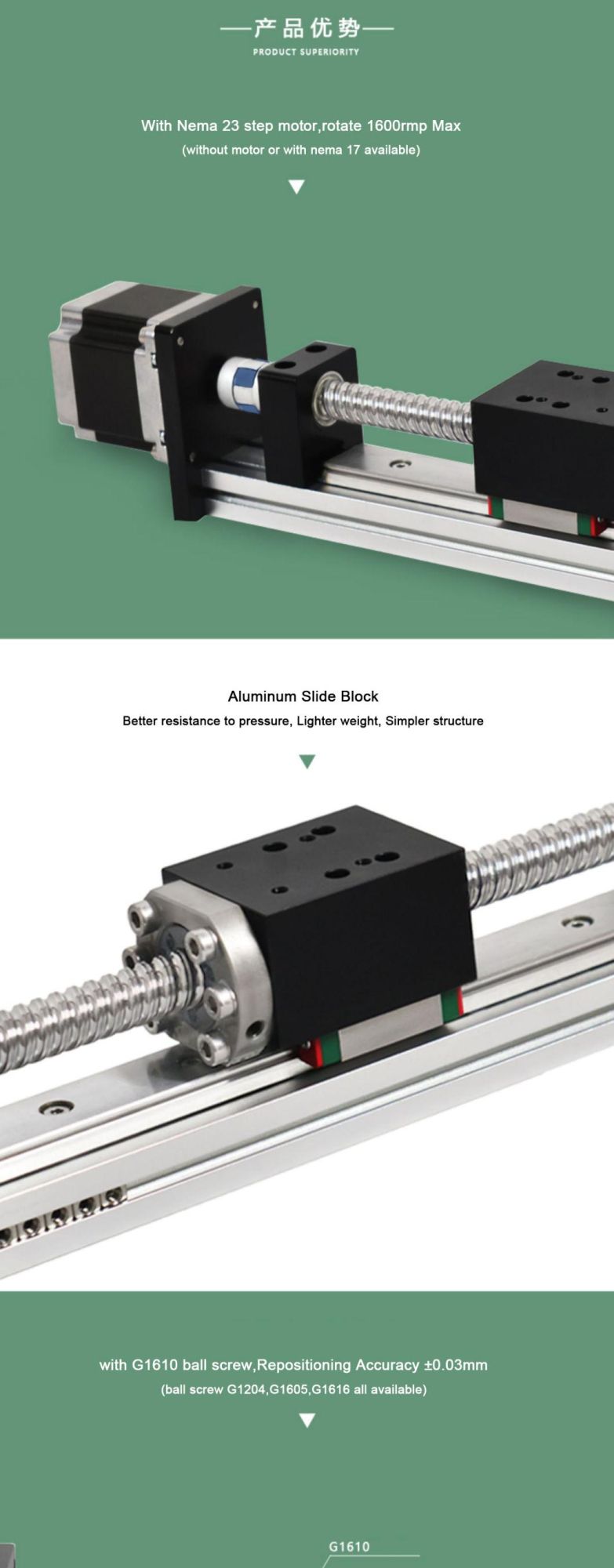

  • Ball Screw：G1204,G1605,G1610,G1616
  • Motor Type：NEMA 23 Step Motor,NEMA 17 Step Motor
  • Repeatability Accuracy：0.03mm
  • Stroke：100mm
  • Noise：68dB
  • Movement Life：8000-10000km
  • Transport Package：Carton
  • Specification：40mm wide aluminum profile
  • Trademark：OEM
  • Origin：China
  • HS Code：8487900000
  • Production Capacity：500,Month
  • Package size per unit product：40.00cm * 12.00cm * 10.00cm
  • Gross weight per unit product：25.000kg

Description

Overview Product Description

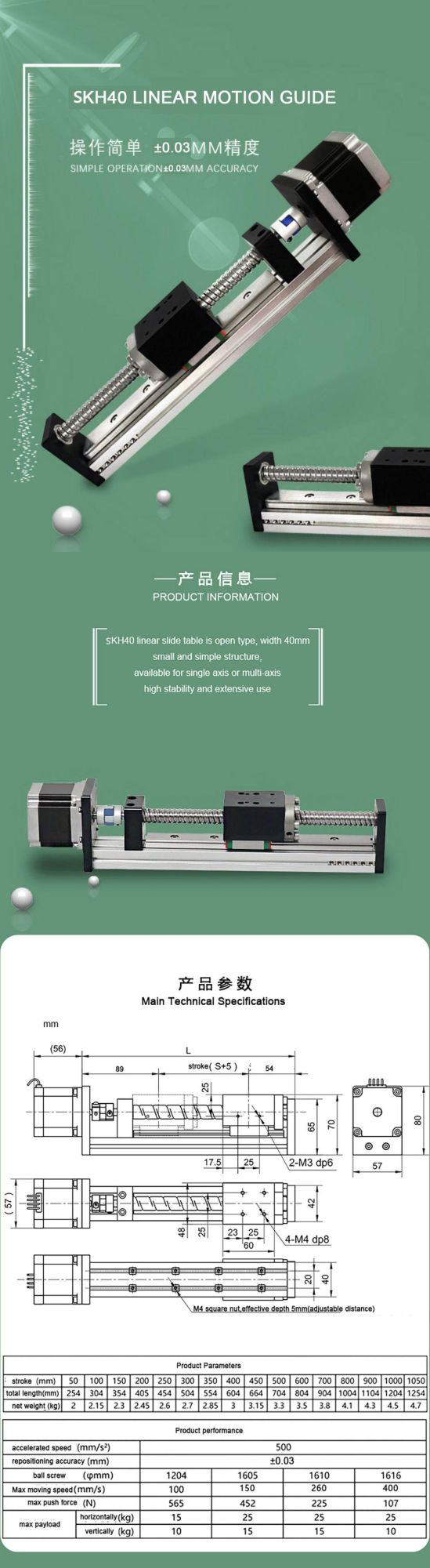

Product Parameters

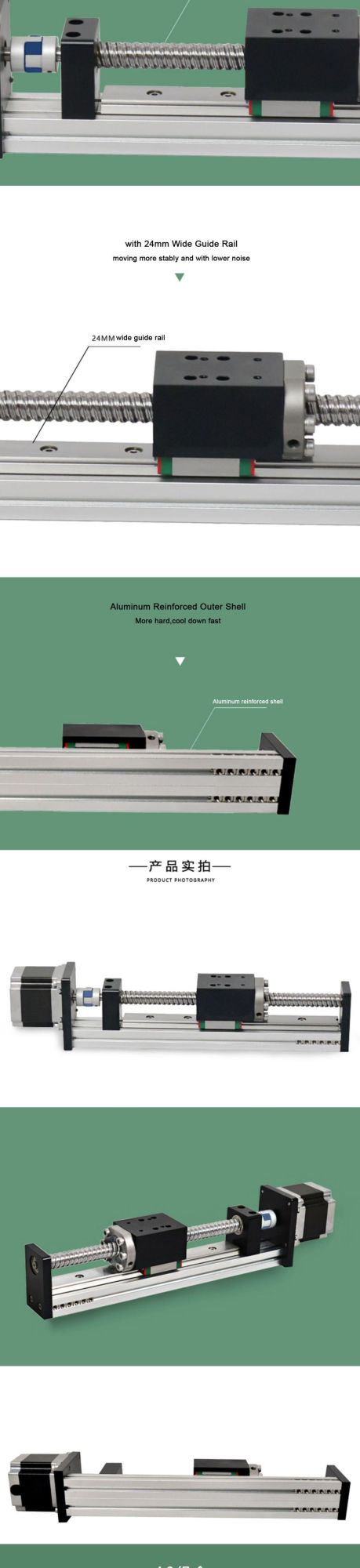

Width of aluminium profile40mmBall screwG1610/G1605/G1616/G1204 - lower noiseGudie rail24mm wide guide rail - more stableMotornema 23/nema 17 stepper motorAccuracy±0.03mmStroke50mm-1000mm
without motor is available
Accept customizations
